Larson 18W Underwater LED Light to 30 Meters - Aluminum Housing - 4' Marine Grade Cable - 958 Lumens

Buy American Compliant

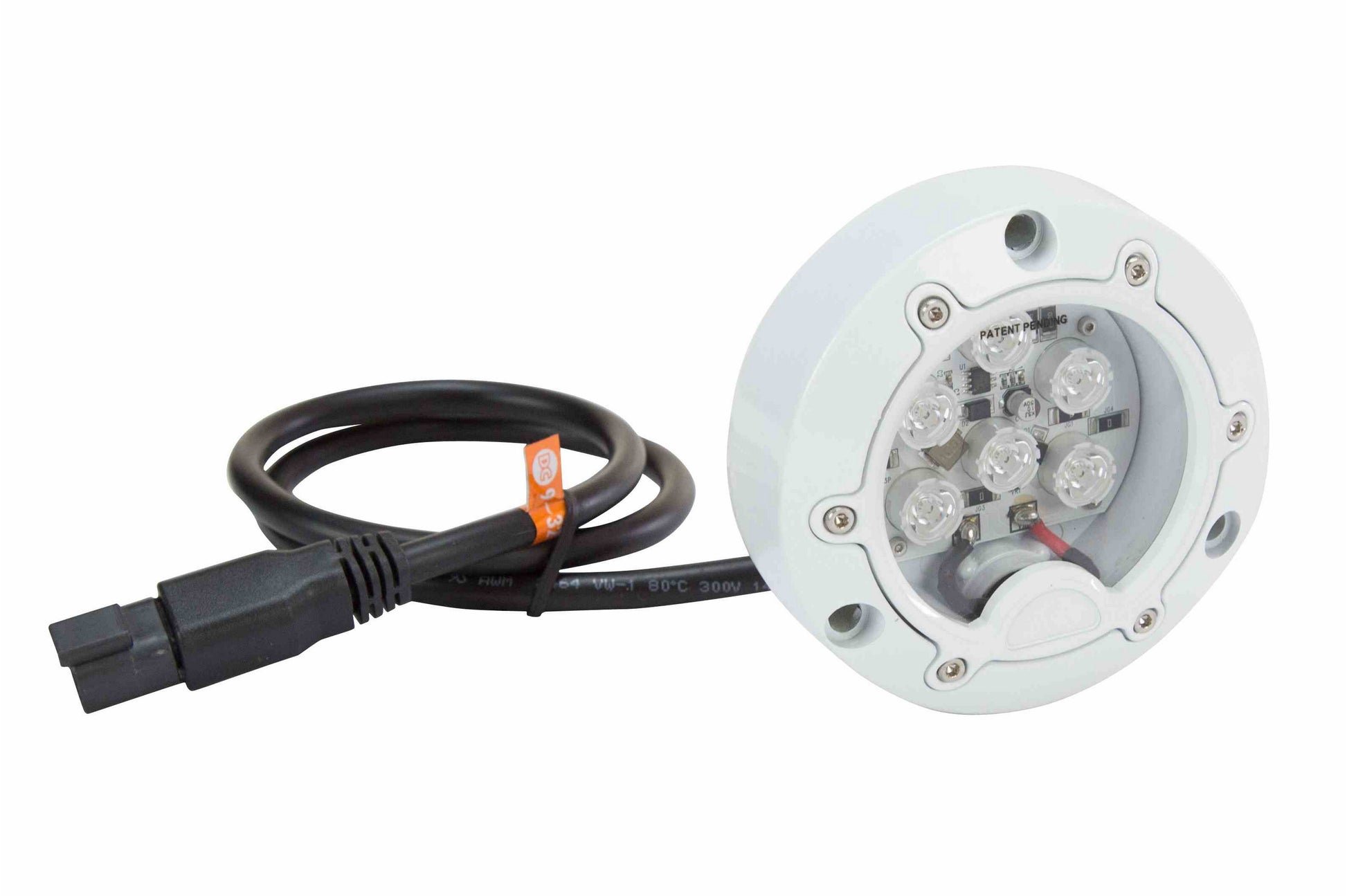

The LEDEUL6 from Larson Electronics is an Underwater LED Light that is designed as a versatile lighting solution for both underwater and dry applications where an effective yet unobtrusive light fixture is needed. This LED light produces 800 lumens of pure white light while using only 1.5 amps at 12 volts. The LEDEUL6 is submersible up to 100` (30.48m) and operates on an input voltage of 11-32V DC. Six 3W LEDs combine to produce 1,368 raw lumens and 958 effective lumens to provide ample illumination for a variety of applications.
This waterproof LED light is fully sealed within a weatherproof aluminum chassis fixture that features a very small profile for easy and unobtrusive mounting in tight and space limited areas. This LED light is rated waterproof to 30.48 meters (100`) and has a 25° beam spread which makes it ideal for marine applications. Unlike other underwater LED lights, this unit can also be used above water as well, so water is not necessary to cool this LED light. For this reason, other applications for the LEDEUL6 include dome lighting, wash down room lighting, engine room lighting and other small instrument area lighting. These lights feature a small 4.13 inch diameter profile that lends itself well to a wide variety of applications both utilitarian and aesthetic and are available in optional light colors including amber, red, blue, green and white. Two different colors can also be combined within a single fixture at additional cost.
Amber
Blue
White
Red
Green
LED Benefits:
Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation and/or transportation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current is applied, providing instant illumination with no warm up or cool down time before re-striking. Because there is no warm up period, this light can be cycled on and off with no reduction in lamp life.
LED lights run at significantly cooler temperatures than traditional metal halide and high pressure sodium lights and contain no harmful gases, vapors, or mercury, making them both safer and more energy efficient. No extra energy is wasted in cooling enclosed work areas due to external heat emissions from bulb type lights, and the operator risks associated with traditional lighting methods, such as accidental burns and exposure to hazardous substances contained in the glass bulbs, are eliminated. In addition, LEDs are also safer for the environment as they are 100% recyclable, which eliminates the need for costly special disposal services required with traditional gas burning and arc type lamps.
These LED lights are ideal for use as underwater hull lights, in areas where space is limited as general area lighting, or as primary light sources on decks and walkways. This LED light is available in 10 degree spot or 60 degree flood configurations. Spot configurations are ideal for specialty applications while flood configurations are very effective for general area lighting.
53" Container with White
53" Container with Amber
53" Container with Red
Durability:
These units are fully sealed, weatherproof, and constructed of aluminum with stainless steel hardware for durability and corrosion resistance. Measuring only 4.13" in diameter and 1.25" in total thickness, these compact units are designed for surface mounting in either interior or exterior applications. The 958 effective lumen light output at approximately 12 watts @ 1.5 amp draw of these LED lights makes them ideal for applications where power management is critical such as boats and RV`s.
Wiring/Power:
Waterproof to 30 meters for marine environments, these versatile LED lights can be installed above or below water. Each light is mounted via three screws and a 3/8 inch hole for wiring. The LEDs are housed within a hard anodized and powder coated aluminum chassis that provides excellent strength and durability. This LED light has a 4` marine grade cable terminated in a LADD DT04-2P Deutsch connector. This light can be operated on voltages ranging from 11 to 32V DC without the need for any extra hardware. The light will sense the voltage and adjust the current sent to the LED accordingly.
Suggested Applications:
The LEDEUL6 is ideal for various applications that include; hull lighting, cabinet lighting, dock lighting, engine bay compartments, confined spaces, overhead lighting, deck lighting, and transom mounting.
Contact info@purilite.ca for more information about our custom options tailored to meet your specific industry needs.
Superior LED Benefits
1. 50,000 hour lifespan.

Specifications
Lamp Type: LED
Dimensions: 4.13"-Dia x 1.25"-H
Weight: 1.4 lbs
Watts: 18
Voltage: 11-32V DC
Amps: 1.5A @ 12V DC
Raw Lumens: 1,368
Effective Lumens: 958
LED Life Expectancy: 50,000 hours
Luminous Efficacy: 53.2 Lm/W
Color Options: Amber, Blue, White, Red or Green
Beam Configuration: 25° Medium Beam
Spot Beam: 15`L x 10`W
Mounting: Flat Surface Mount
Wiring: Deutsch IPD / LADD DT04-2P Connector
Materials: Anodized Aluminum Housing
