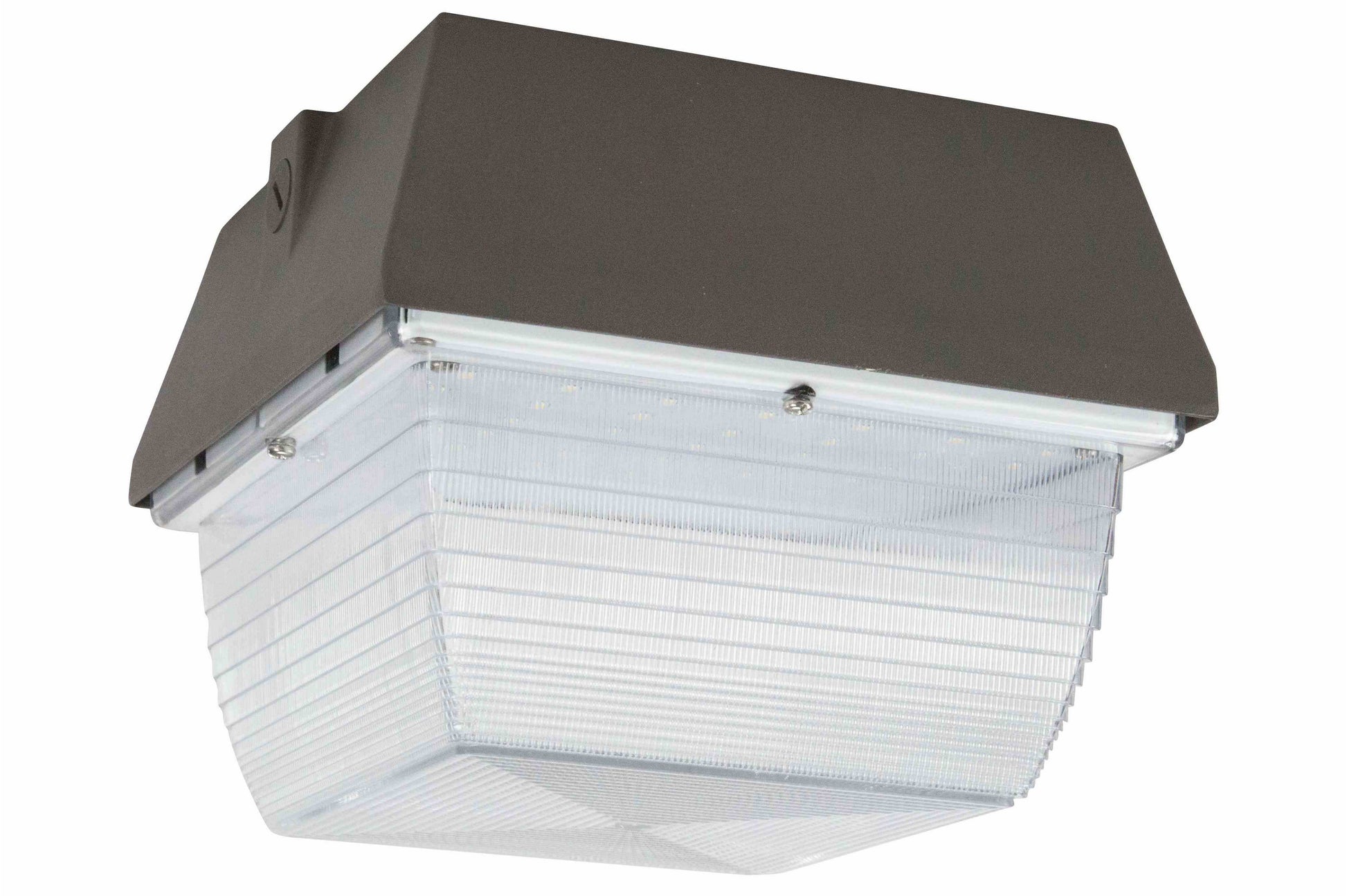

Larson 25 Watt LED Canopy Light w/ Emergency Battery Backup - 120-277V AC - IP65 Rated - Failsafe

Larson ElectronicsSKU: PL3-LEDHCL-EMG-250-WCM
filler

Price:
Sale price$1,380.00
 更多支付选项

Description

PuriLite suggests you place an order directly with us for large Larson orders due to the potential customization requirements. Please call us at 1(647) 254-9757 to place your order. If you prefer to place your order online, a PuriLite agent will be in touch with you to discuss any custom options.
The LEDHCL-EMG-250-WCM Traditional LED Ceiling Mount Canopy Light w/ Emergency Battery Back-up offers high light output from a compact form factor and is designed to provide a more durable and long lived alternative to halogen and metal halide units. This 25 watt LED light is designed to replace 100 watt metal halide canopy lights and produces a wide flood beam without the high heat, fragile construction, or high energy costs of traditional lighting. The LED LEDHCL-EMG-250-WCM operates on voltages of 110-277V AC and provides 100,000 hours of reliability and up to 78% savings compared to traditional 100 watt metal halide canopy light fixtures. This canopy LED features a battery back-up for up to 90 minutes of light in emergency situations.
The popular LEDHCL-EMG-250-WCM traditional medium LED canopy light from Larson Electronics features an emergency battery back up and is designed to replace more fragile and energy consuming 100 watt metal halide fixtures, without the required maintenance or electrical requirements associated with metal halides. This 25 watt LED canopy light assembly consists of an integrated LED assembly paired with a polycarbonate lens to produce a wide light distribution suitable for replacing 100 watt metal halide flood lights. This LED ceiling mount canopy light features a 2-piece housing constructed of die cast aluminum alloy with an injected molded rubber gasket resembling that of traditional style canopy light fixtures. This LED canopy light is designed to withstand demanding conditions and is IP65 waterproof and built to resist the damaging effects of an outdoor environment. This fixture can be used indoors or outdoors as well as in confined spaces without heat buildup.
This emergency LED light works, mounts and is wired like our LEDHCL-250-WCM traditional LED canopy lights. The main difference is that we have added a battery back-up unit that adds emergency light functionality to the fixture. This emergency battery back-up will run one bulb at the standard UL suggested 90 minutes after power is lost at 3,500 lumens. The light recharges the battery once electrical power is restored. Standard configuration includes a single emergency battery backup that is automatically recharged and kept in a ready state. The battery back-up unit includes a switched leg for turning the light fixture on/off without kicking the unit into emergency mode.
The LEDHCL-EMG-250-WCM consists of an integrated LED assembly housed within a waterproof die cast aluminum housing that is powder coated for added durability and resistance to corrosion. The 2-part housing allows for easy ceiling mount installation and future servicing, and the aluminum design helps heat dissipation and increased LED longevity. The LED lamp assembly is protected by a prismatic polycarbonate lens which is secured to the housing with a one piece injected rubber seal. This prismatic polycarbonate lens is designed for superior light distribution. Four 1/2" NPT knockouts located on three of the sides and back of the fixture provide a secure and sealed power connection point and rounds out this unit`s weather resistant construction. The traditional housing design of this LED canopy light helps maintain building aesthetics when replacing existing canopy lighting.
Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current is applied and emitting light. With LED lights, there is no warm up time or cool down time before re-striking and provide instant illumination when powered on, adding to the reliability of LED technology. By nature, LED light sources run significantly cooler than traditional lamps, reducing the chance of accidental burns and increased temperatures due to heat emissions. This solid state design of light emitting diodes provides a more reliable, stable, durable, and energy efficient light source over traditional lighting.
Metal Halide
LED
Savings
Wattage
115* watts
25 watts
-75 watts
Amp Draw @ 120V AC
1.0 amps
0.21 amps
-0.79 amps
Amp Draw @ 220V AC
0.52 amps
0.11 amps
-0.41 amps
Amp Draw @ 240V AC
0.50 amps
0.10 amps
-0.40 amps
Amp Draw @ 277V AC
0.42 amps
0.10 amps
-0.32 amps
Lamp Life Expectancy
20,000 hours
100,000 hours
+80,000 hours
Operation cost per year - each
$60.44
$13.14
$47.30/yr
Operation cost per year -
$3,022.00
$657.00
$2,365.00/yr
*Includes ballast factor
LED has no ballast
80% in energy savings alone, before cost of maintenance for metal halide fixtures.
This LED canopy light is universal voltage, not multi-tap, and can be operated on a range of voltages from 100 volts to 277 volts AC 50/60Hz providing versatile power options for all locations. The LEDHCL-EMG-250-WCM provides an efficient and highly durable alternative to standard 100 watt metal halide as well as halogen, fluorescent, and compact fluorescent canopy lights while using only a fraction of the power.
With the LEDHCL-EMG-250-WCM there is no warm up period, the light can be cycled on and off without any reduction in lamp life, there is no glass or filament to shatter or break, and the solid state LED design provides 100,000 hours of operation. The LEDHCL-EMG-250-WCM is ideal for canopy lighting,
canopy
down lighting, monuments, docks, warehouses, parking lots, gas stations, carports, loading areas, hotels, garages, commercial buildings, schools, public areas, and security systems just to name a few examples.

Specifications
Listing: United States - Canada
Lamp Type: LED
Dimensions (Inches): 9"-L x 9"-W x 7 1/4"-H
Dimensions (CM): 22.9-L x 22.9-W x 18.4-H
Weight: 7.9 Lbs.
Voltage: 110-277 Volts AC 50/60hz
Watts: 25
Total Lumens: 2,724
Luminous Efficacy: 25 lm/w
LED Life Expectancy: 100,000 hours
Lighting Configuration: Flood
LED Light Color: 4000K or 5000K
Color Rendering Index: >75
Power Efficiency: 85%
Power Factor: >0.95
Amp Draw: 0.21A @ 120V, 0.10 @ 240V, 0.10 @ 277V
Housing Materials: Die Cast Aluminum Alloy 2-Part Housing
Lens Materials: Prismatic Polycarbonate Lens
Gasket Materials: Injection Molded Rubber
Ingress Protection: IP65
Ambient Temp Range: -40°C to +60°C
Mounting: Ceiling / Flat Surface
Wiring: Pigtail
Wiring Hub: Four 1/2" NPT Knock-outs
