20 Watt Ultraviolet Handheld LED Emitter - 365NM - 4 UV LEDs - Non-Destructive Testing - 120-277VAC

20 Watt Ultraviolet Handheld LED Emitter - 365NM - 4 UV LEDs - Non-Destructive Testing - 120-277VAC

$1,682.00 CAD
$1,682.00 CAD
促销 售罄
结账时计算的运费。
Specifications / Additional Information
LEDLB-4E-UV-365NM-1227 LED Light Bar LEDLB LED Features
LEDs: (4) 5 Watt UV LED Emitters 5 Watt LED Emitters
Dimensions: 4"-L 3"-H 3.56"-D LEDs Driven At 80%
Watts: 20 -40 C~ +80C Operating Temp Range
Voltage: 110-277V AC (9-42 VDC w/o transformer) RoHS Compliant
Weight: 2.4 Lbs 70% Retention @65,000 hours
Lighting Configuration: 10° Spot or 35° Flood LED Chip Op Temp -40C to +125C
Mounting: Stud Bracket IP68 Rated Waterproof to 3 meters
Wiring: Deutsch IPD / LADD DT04-2P connector
Amps: 0.17 (on 120 volts) 1.67 (on 12 volts)
LED Light Color: Ultraviolet (365NM)
Intensity (Spot): 50 mW/cm² @ 12"
Intensity (Flood): 6 mW/cm² @ 12"
LED Life Expectancy: 50,000 hours
Optics Efficiency: 90%
Materials: Aluminum Housing, Polycarbonate Lens
Housing Colors: Black or White
CE Certified 3 year warranty replacement on this LED light. After 30 days, the customer ships the failed LED light and/or LED bulb to Larson Electronics at their expense. If the failure is a manufacturer defect, we will ship a new replacement to the customer. If failure occurs within 30 days of receipt, Larson Electronics will provide a return label via email to the customer. When the failed light is returned, Larson Electronics will ship a new replacement.
' Product Overview '
Buy American Compliant The Larson Electronics LEDLB-4E-UV-365NM-1227 LED Light Bar offers high light output and extreme durability combined with versatile mounting and power options. This IP68 rated LED light bar is waterproof to three meters and produces ultraviolet 365nm light while drawing only 20 watts of power @0.17 amp from a 120 volt electrical system. This light is an extremely rugged lighting solution that is ideal for use in commercial marine environments as well as industrial and manufacturing applications such as machine vision system lighting, heavy equipment illumination, blasting lighting and mining operations. The LEDLB-4E-UV-365NM LED light bar from Larson Electronics produces UV light in the 365 nanometer spectrum with a 50mW intensity. Four five watt LEDs producing 12.5 mW/cm² each are arranged in rows and paired with high purity 10 degree optics to produce a tightly focused spot beam with limited spread or light spillage. We also offer optional floodlight versions with 35 degree optics to produce a wider beam spread and more light over a larger area nearer the fixture, making flood versions ideal for use as work and area lights. These LED light bars are IP68 rated and waterproof to 3 meters, sealed against intrusion by dust and dirt and very ruggedly constructed to withstand the most demanding environments, conditions and applications. The entire Larson Electronics LEDLB-E series are constructed of extruded aluminum and feature heavier housings, rubber isolated mounts and unbreakable polycarbonate lenses to provide increased durability against vibrations, impacts, waves, hard rains, sand and high winds.
Click Photo to Enlarge

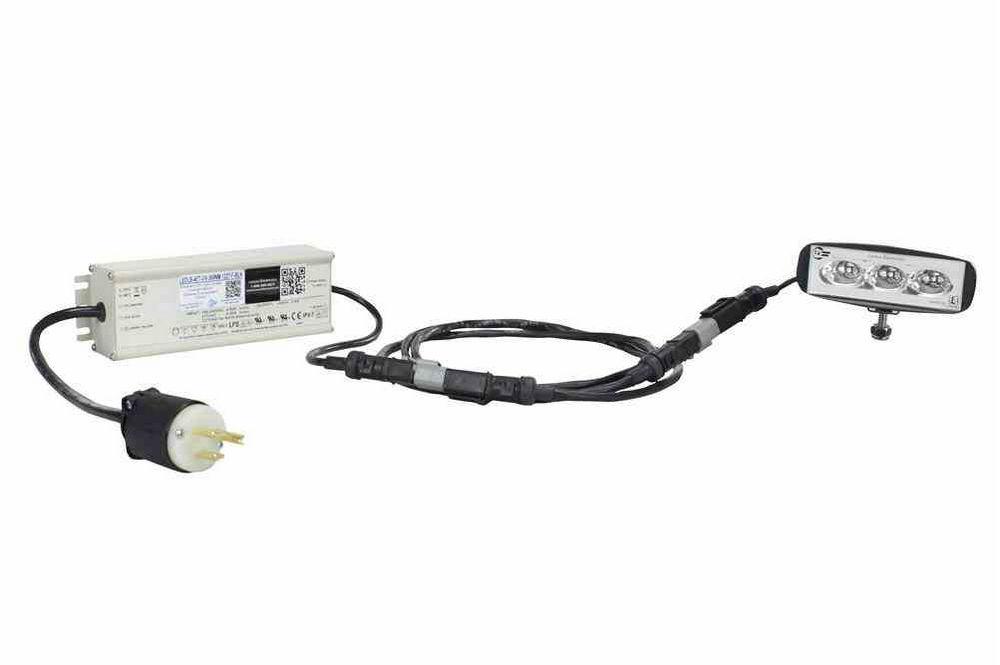

This light includes an inline transformer to allow operation with common 110VAC wall plug current, however, the operator can remove the transformer and run this unit on any voltage from 9 to 42 volts. This unit is set up as a medical infrared led light emitter. Larson Electronics provides 6 feet of SOOW cable so that the LED is able to position itself away from the wall where it receives it`s power. Heat Management: Heat is the single largest factor in premature LED failure and color shifting. As a result, many manufacturers reduce the output of their LEDs to reduce the amount of heat produced. These LED light bars utilize an extruded aluminum housing that incorporates an advanced heat radiating fin design which dissipates heat efficiently to produce the maximum amount of power and longevity from the integrated Edison Edixeon® Emitters. The end result is more light and longer LED life with higher average lumen maintenance after 50,000 hours. Voltage Control: These units come standard with a 110-277V AC inline transformer terminated 5-15 wall plug. However, by removing the inline transformer, this ultraviolet LED light can be powered from any DC power source. These units are able to monitor and adjust input current to maintain the correct LED voltage levels regardless of input levels across a specific range. When the transformer is removed, these LEDLB series light bars can operate on current ranging from 9 to 42VDC without any modifications necessary as a result.
LEDLB-4E-UV-365NM-122735° Flood Beam (Opt) LEDLB-4E-UV-365NM-122710° Spot Beam (Stnd)
Durability: The LEDLB-E series of LED light bars from Larson Electronics offer IP68 rated construction that is designed to withstand extremes of environmental and operating conditions. The LED lights with the ‘E’ part number designation are designed for extreme durability and are larger and nearly twice as heavy as their standard counterparts. These units can withstand rapid temperature changes of -40 degrees Celsius to 85 degrees Celsius, are waterproof to three meters and resist ingress of dust, dirt and humidity. The housings are formed from thick extruded aluminum and the lenses are unbreakable polycarbonate. The Edixeon® LEDs offer inherent LED resistance to shocks and vibrations contributing to these units 15.6Grms rating of vibration tolerance. We recommend these LED lights for high stress - high vibratory conditions, high humidity climates, very cold areas and rough saltwater conditions. They are also well suited to environments where equipment is used in one temperature extreme and stored in another temperature extreme. Adjustable Mounting: The trunnion handle design on the LEDLB-4ET-UV-365NM-1227 allows positioning the unit at various angles while holding the unit at desired locations. This means that by loosening 2 thumb bolts located on either side of the light, the operator can adjust the positioning angle of this light 270 degrees. Then he/she would simply have to tighten thumb bolts to lock the angle in place. No tools are required for adjusting angle. Note: Most Larson Electronics LEDLB, LEDP3W, LEDP10W, and LED10W series LED spotlights and floodlights are terminated with a Deutsch IPD / LADD DT04-2P connector. The mating connector plug is DT06-2S. Most LEDLB and LED10W series lights ship with mating connector as part of a harness or pigtail, depending on the model. Some larger LED lights like the LEDLB-160X2 or LEDLB-200X2 or multiple function LED lights (i.e. high/low beam, modulating, IR/Visible combos) will have different Deutsch connectors. Intensity: 50 mW/cm² (50,000 µW/cm²) in a spot configuration measured at 12". 6 mW/cm² (6,000 µW/cm²) in a flood configuration measured at 12".
