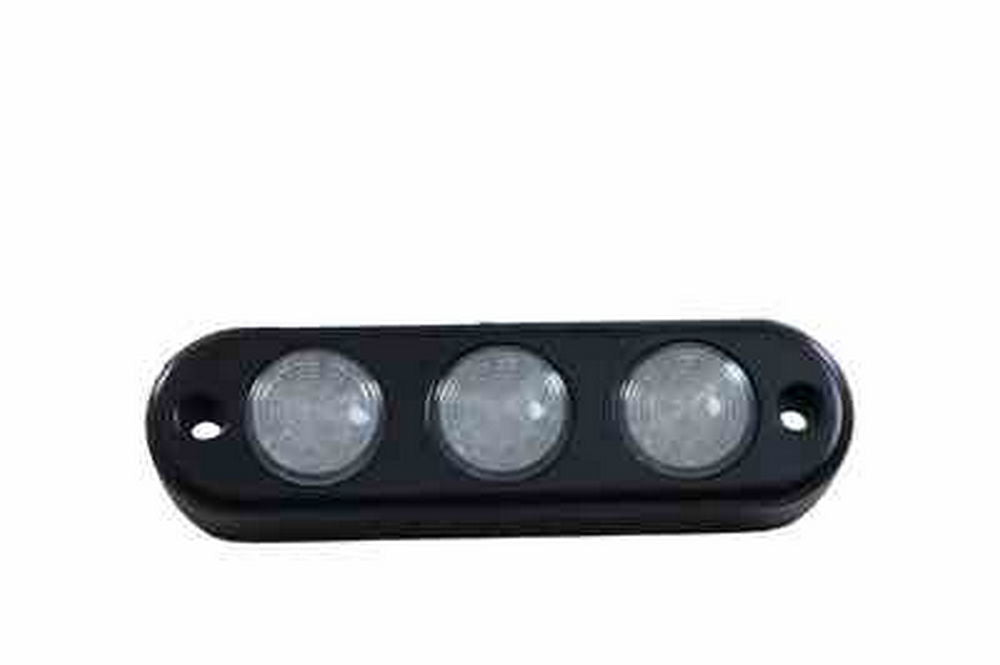

Larson 3 LED Spreader Light in billet aluminum housing (tube frame)
Larson 3 LED Spreader Light in billet aluminum housing (tube frame)
Buy American Compliant
The LEDSM-3X60-R LED spreader light is designed as an extremely efficient and versatile lighting solution for boat walkways, cabin areas, stairs, vehicles and and anywhere a compact and efficient lighting solution is needed. This LED strip light is designed for mounting on tube frames between 1 3/4†to 2†in size and produces 675 lumens of bright pure light while using only .2 amps of power.
This high intensity LED spreader light consists of three LED potted and housed within a billet aluminum fixture that features a very small profile for easy and unobtrusive mounting in tight and space limited areas. These lights feature a thin profile that makes them ideal for replacing older bulky incandescent or fluorescent fixtures. This LED spreader light is designed to mount to tube frames such as those found on boat railings and canopies, and each LED is independently wired to allow each LED to be operated on its own switch or circuit if desired.
Measuring only 5.25" long and 2†wide, these compact units are ideal for installation along railings, under cabinets, along stairs and wherever a powerful and compact light is needed. The 675 lumen output of these lights combined with low .2amp power consumption makes these units ideal for replacing older and less efficient fluorescent lights. These can be operated together or independently by either wiring all the LEDs into the same circuit or each one to its own circuit. Each LED has ane ground wire and one hot wire the fixture is predrilled with a through hole on each end for mounting. This LED light is designed to operate with 12 volt DC current and is equipped with a three foot pigtail for easy wiring installation.
This LED spreader light runs cool to the touch, will illuminate an area approximately 10` x 10`, and has an operational life of 50,000 hours. The housing is available in either black anodize or clear anodize. Please choose your preference from the drop down menu below.
Specifications
Lamp Type:
Dimensions: 5.25" Length  2" Width .875" Depth
Amps: .2 on 12 volts
Voltage: 12 VDC Only
Mounting: Tube Frame Mount
Wiring: 2 Wires Each LED, Hot and Ground
Lumens: 675
LED Life Expectancy: 50,000 hours
Materials: Billet Aluminum
Beam Size: 10`L x 10`W
