Larson 40W Submersible LED Fixture - 4' Low Profile Light - 120-277V AC 50/60 Hz Driver - IP68 Waterproof

PuriLite suggests you place an order directly with us for large Larson orders due to the potential customization requirements. Please call us at 1(647) 254-9757 to place your order. If you prefer to place your order online, a PuriLite agent will be in touch with you to discuss any custom options.
Buy American Compliant

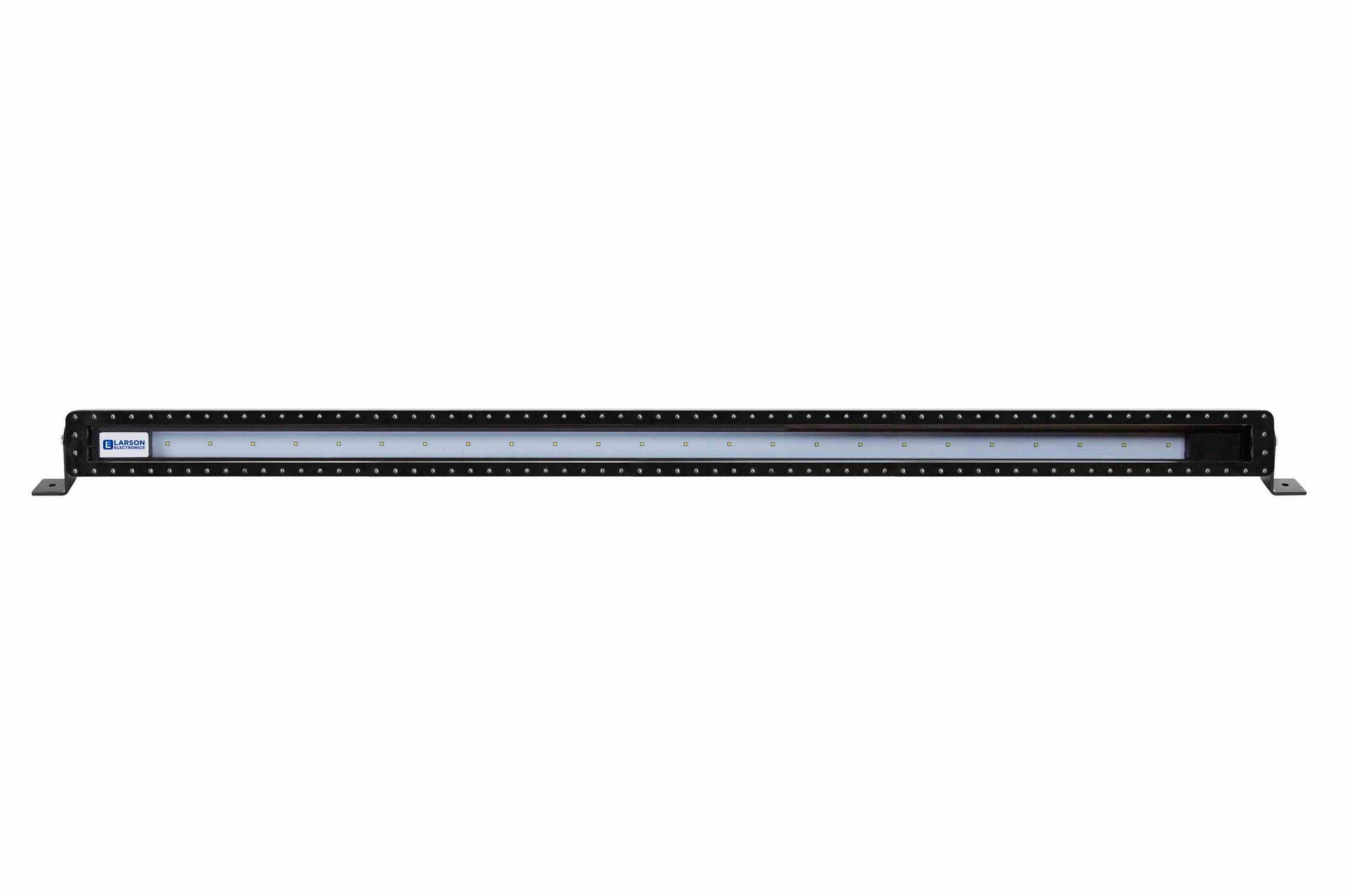

The Larson Electronics LEDXUL-48-IPS-LED-1227 is a Submersible LED Fixture that can be used in wet locations, including marine sites and docks. The 40-watt unit operates on 120-277V AC and offers 5,000 lumens of white light during use. Constructed of heavy-duty aluminum, the LED light is rugged and sumbersible up to 3 meters.
The LEDXUL-48-IPS-LED-1227 is designed to provide a high output and a durable lighting solution for wet locations and outdoor sites. This low profile, LED strip light operates operated on 120-277V AC 50/60 Hz and includes 6 feet of connecting lead with flying leads. The LEDs in this linear light are Cree LEDs that have been chosen for their high lumen per watt ratio and extreme long life. These Cree LEDs provide over 125 lumens per watt output and have a 70% lumen retention at 50,000 hours, giving them better efficiency and operational life than comparable LEDs. This LED light produces 5,000 lumens with a color temperature of 5000K or 3000K and a color rendering index of 75 which produces colors and details much more accurately than incandescent, halogen, or fluorescent light fixtures.
Durability:
The LED light may be used in both underwater and above water. When used underwater, the luminary is submersible up to 3 meters, with maintained submersion capabilities in both fresh water and saltwater. Above water, the device is able to stay cool without reliance on surrounding water, allowing it to hold up to hurricanes, intense storms, land-to-sea vehicles and more. To ensure operation in versatile environments, the LEDXUL-48-IPS-LED-1227 is constructed of stainless steel hardware (including mounting brackets) and a heavy-duty billet aluminum CNC machined housing. The lens is made out of shatter resistant polycarbonate with a one-piece front lens cover and o-ring lens gasket. To prevent moisture from entering the power cable, the wiring of the light uses a potted power connector.
LED Benefits:
Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation and/or transportation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current is applied, providing instant illumination with no warm up or cool down time before re-striking. Because there is no warm up period, this light can be cycled on and off with no reduction in lamp life.
LED lights run at significantly cooler temperatures than traditional metal halide and high pressure sodium lights and contain no harmful gases, vapors, or mercury, making them both safer and more energy efficient. No extra energy is wasted in cooling enclosed work areas due to external heat emissions from bulb type lights, and the operator risks associated with traditional lighting methods, such as accidental burns and exposure to hazardous substances contained in the glass bulbs, are eliminated. In addition, LEDs are also safer for the environment as they are 100% recyclable, which eliminates the need for costly special disposal services required with traditional gas burning and arc type lamps.
Mounting/Wiring:
The LEDXUL-48-IPS-LED-1227 is equipped with stainless steel mounting brackets which slide within the aluminum housing to allow users to adjust their positioning to match existing or user drilled mounting holes. Each stainless steel bracket has an integrated rubber bushing to absorb vibrations and shocks. To secure the lights in place users simply slide the mounting bolts through the aluminum mounting block and rubber isolator, through the mounting surface, then secure the bolt with a locking nut on the opposite side of the mounting surface. This mounting system enables mounting to flat or round surfaces and allows for minimal 7 degrees of flexibility of angle placement of the light.
Each LED strip light is equipped with 6 feet of 16/2 SOOW cable for making power connections.
Applications:
Wet locations, marine sites, wall pack lighting, wall pack down lighting, upwards lighting, monuments, marinas, docks, warehouses, billboards, parking lots, security systems and more.
Contact info@purilite.ca for more information about our custom options tailored to meet your specific industry needs.

Specifications
Lamp Type:
Dimensions: 54"-L x 4.68" -W x 6.69"-H
Weight: -
Voltage: 120-277V AC 50/60 Hz
Total Watts: 40
Total Lumens: 5,000
Luminous Efficacy: 125 Lm/W
Lamp Life: 50,000+ Hours
Color Temp: 5000K or 3000K
Color Rendering Index: >75 CRI
Beam Angle: 30° Spot or 100° Flood
Lighting Configuration: Spot or Flood Pattern
Power Efficiency: >95%
Power Factor: 0.992
Ambient Operating Temp Range: -40° C to +60°C
Housing Materials: Heavy Duty Billet Aluminum CNC Machined Housing
Lens: Shatter Resistant Polycarbonate Lens, One-piece Front Lens Cover, O-ring Lens Gasket
Mounting: Stainless Steel Bracket
Wiring: 6` 16/2 SOOW w/ Flying Leads
