4000 Watt 16 Foot Telescoping Light Mast - Fold Over Light Tower - 360° Rotating Boom - High Mast
4000 Watt 16 Foot Telescoping Light Mast - Fold Over Light Tower - 360° Rotating Boom - High Mast
| LM-16-4X1000W 4000 Watt Fold Over Light Mast | Quick Summary |
| Lamp Type: Metal Halide | 10 to 16 Foot Light Mast |
| Lamps: (4) 1000 Watt Metal Halide Spots Lamps | Steel Construction |
| Total Watts: 4,000 | Power Coated Finish |
| Total Lumens: 440,000 | Removable Mast Head |
| Mast Length: 10 feet - 16 feet | 125 mph Wind Resistance |
| Weight: +-325 lbs | Manual or Optional Electric Operation |
| Capacity: 150 lbs | UL 1572 |
|  Materials: Steel | 19" Lamp Reflector w/ Tempered Glass Lens |
| Finish: Powder Coated - Gloss Blue | Finger Latch for Easy Bulb Access |
| Operation: (2) 1,000lbs Hand Winches, Electric Optional | NEMA 3R Remote Ballast Enclosure |
| Cable: 3/16 Aircraft Cable | |
| Mounting: 1/4" thick, 13"x15" Six Bolt Hole Bracket | |
| Shipping: Common Freight | Toll Free: 1-800-369-6671 |
| Shipping Dimensions: 12`-L x 4`-W x 5`-H | |
| Shipping Weight: +-550 lbs | Fax: 1-903-498-3364 |
| Options: Length- Mounting-Fixtures/ Call Us for Special Requirements | E-mail: |

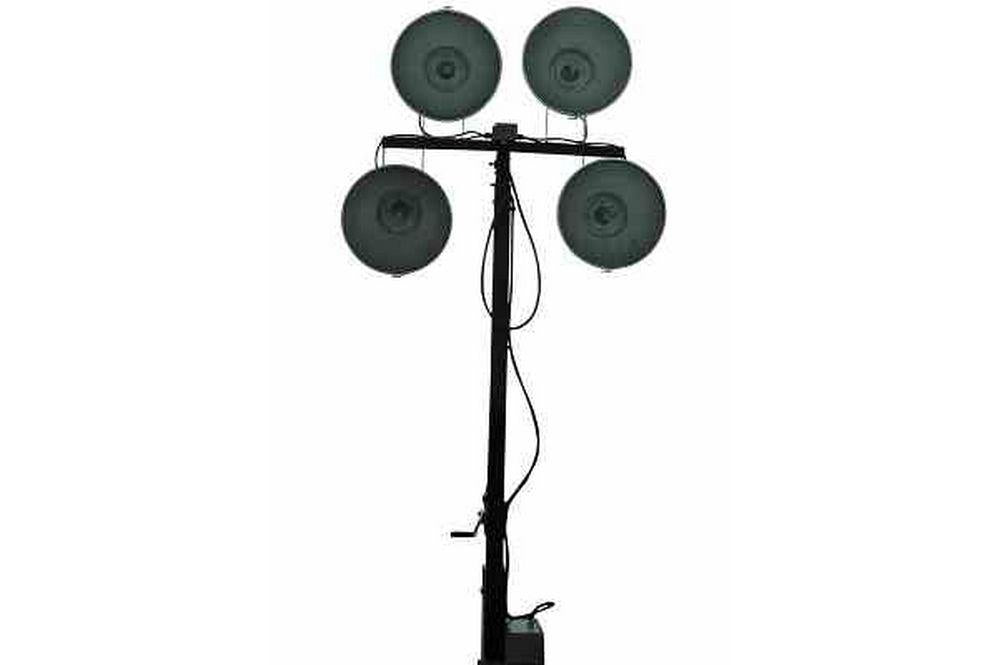

| Made in the USA The Larson Electronics LM-16-4X1000W fold over light mast provides a safe and effective way for operators to quickly deploy 4000 watts of intense lighting to elevations up to sixteen feet. The four 1,000 watt metal halide lamps produce a wide spread of intense white light, allowing this unit to effectively cover large work areas with high quality illumination. This light tower folds over for easy transportation, features a rotating boom that allows for 360° of rotation,  and a removable mast head for storing mounted equipment when not in use. *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO LIGHT MASTS OR LIGHT TOWERS* The LM-16-4X1000W telescoping steel light mast from Larson Electronics’ is designed to quickly and safely deploy 4,000 watts of metal halide lighting in locations where elevated illumination is needed for maximum area coverage. This light boom can be extended to 16 feet for maximum area coverage and collapsed to 10 feet for applications where a footprint smaller is required. The tower is constructed of square steel tubing with a lower section 10 feet in length and 4 inches in diameter and an upper section 8 feet in length and 3.5 inches in diameter with 2 foot of overlap. The mast is elevated using an included 1,000 lbs hand winch with 3/16 inch cable and extended to its full height using a second 1,000 lbs winch. | ||||||||||||
|
||||||||||||
The LM series of towers are powder coated with glossy blue finish for corrosion resistances and aesthetics. These light masts are typically mounted to trailers or other stable surfaces via a 15 inch by 13 inch, 1/4 inch thick mounting base-plate which has been drilled to accept six 3/4 inch anchor bolts. A 36 inch wide and 1/4 inch thick mounting plate is attached to the upper section of the mast which provides a strong and stable platform for the four metal halide fixtures.
Included with this light tower are four of our wet area suitable metal halide fixtures producing a combined total of approximately 400,000 lumens at 4,000 watts. These lamps have 19†reflectors and are constructed of aluminum with a clear tempered glass lens which is secured into place with a heavy duty gasket and single ring lock. These floodlights produce a wide flood light pattern capable of illuminating approximately 5 acres. Each floodlight is securely fastened to the light boom and each lamp includes a support bracket to help maintain lamp stability within its housing. The lamps are connected to the power source via a water tight male pin connector that attaches to a receptacle located on the end of the telescoping boom.
|
