Thirty Foot Telescoping Light Mast - 14-30' Stationary Three Stage Light Tower - 360° Rotating Boom - 300lb Capacity

LARSON ELECTRONICSSKU: PL3-LM-30-3S-FM-300LB
filler

Price:
Sale price$12,660.00
 更多支付选项

Description

Specifications / Additional Information

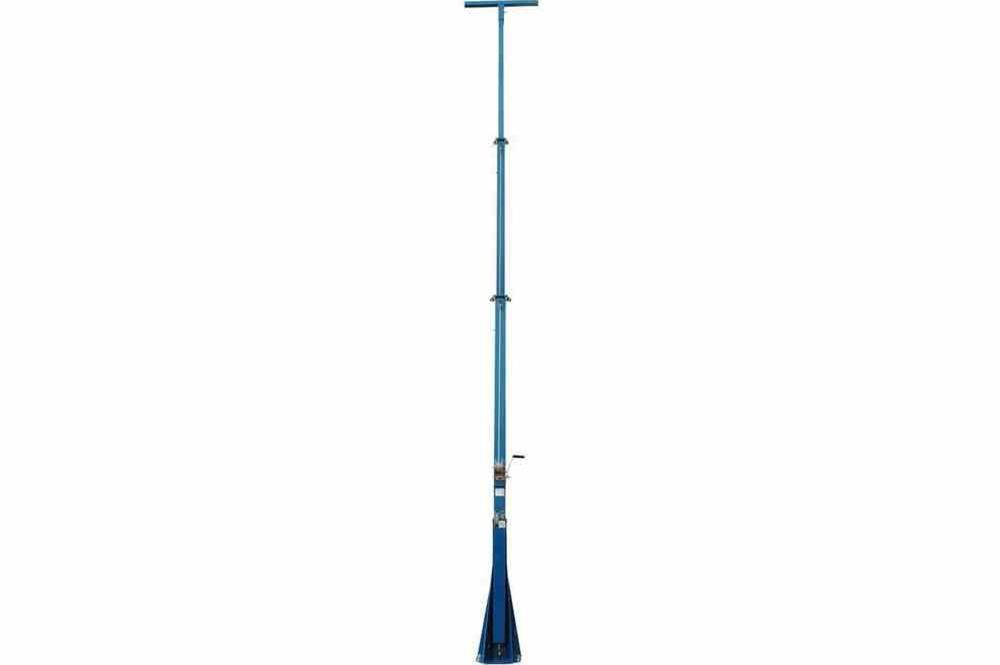

LM-30-3S-FM-300LB - 30' Three Stage Telescoping Light Tower Quick Summary
Length: Telescoping from 14' to 30' 14' to 30' Foot Light Mast
Weight: +-415 lb Steel Construction
Capacity: 300 lb Powder Coated Finish
Materials: Steel Removable Mast Head
Finish: Powder Coated - Gloss Blue 125 mph Wind Resistance
Operation: (1) 1,000 lb Manual Winch, Electric Optional Manual or Optional Electric Operation
Cable: 3/16" Galvanized Aircraft Cable
Mounting: 1/4" thick, 18"x18" Base Plate Special Orders - Requirements
Anchor Bolts: (6) 9/16" Bolts
Shipping: Common Freight Toll Free: 1-800-369-6671
Shipping Dimensions: 16.5'L x 4'W x 5'H Intl: 1-214-616-6180
Shipping Weight: +-1500 lb
Options: Length - Mounting - Fixtures / Call Us for Special Requirements
' Product Overview '
Made in the USA The LM-30-3S-FM-300LB from Larson Electronics is a Fixed Mount 3-Stage Light Mast that provides a safe and effective way for operators to quickly deploy lights, security cameras, and other equipment weighing up to 300 lb to elevations of up to thirty feet. This light tower features a rotating boom that allows for 360° of rotation and a removable mast head for storing mounted equipment when not in use. *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO LIGHT MASTS, LIGHT TOWERS, OR TRIPODS* This telescoping three stage steel light mast from Larson Electronics is designed to allow operators to quickly and safely deploy lighting, cameras, and other electrical equipment in locations where this equipment must be elevated to heights up to 30' for effective coverage. This light boom can be extended to 30' for maximum area coverage and collapsed to 14' for applications where a smaller footprint is required. The tower is constructed of square steel tubing with a lower section 12' in length and 4" by 4" by 1/8" thick, middle section 11' in length and 3" by 3" by 1/8" thick, and an upper section 10' and 2" by 2" by 1/8" thick. Each section has a 1' overlap. The mast is extended to its full height using an included 1,000 lb hand winch with 3/16" galvanized cable.
Click Image to Enlarge
The LM series of towers are powder coated with glossy blue finish for corrosion resistances and aesthetics. These light masts are typically mounted to trailers or other stable surfaces via a 18" by 18" by 1/4" thick mounting base-plate which has been drilled to accept six 9/16" anchor bolts. A 44" wide and 2" by 2" by 1/4" thick mounting plate is attached to the upper section of the mast which provides a strong and stable platform for light fixtures and equipment. The LM family of telescoping towers feature a proprietary mast guidance system, which provides increased stability during high winds. When lowered to 14', the mast can withstand winds up to 125 mph. When elevated to its full upright position, the mast can be rotated a full 360°. By loosening the T-Handle, operators can rotate the mast with ease in either direction. The mast can be positioned in one of four different directions, and locked back in place by re-tightening the T-handle. The mast itself spins freely, and can typically be rotated with a single hand. This light tower weighs approximately 415 lb and can easily support and lift 300 lb fixtures. The entire tower assembly is shipped via common freight carrier and when shipped measures approximately 16.5' long, 4' wide, 5' tall and weighs approximately 1500 lb. Larson Electronics can custom tailor these units to the customer's requirements with longer sections and larger mounting plates. We also offer a choice of either the manual 1,000 lb hand winch included standard or optional electric winch. Suggested Applications: Temporary lighting, construction sites, and security camera deployment. We can equip this mast with 1000W or 1500W Metal Halide lights or a wide variety of high powered LED lights with comparable power, including the , , or .
