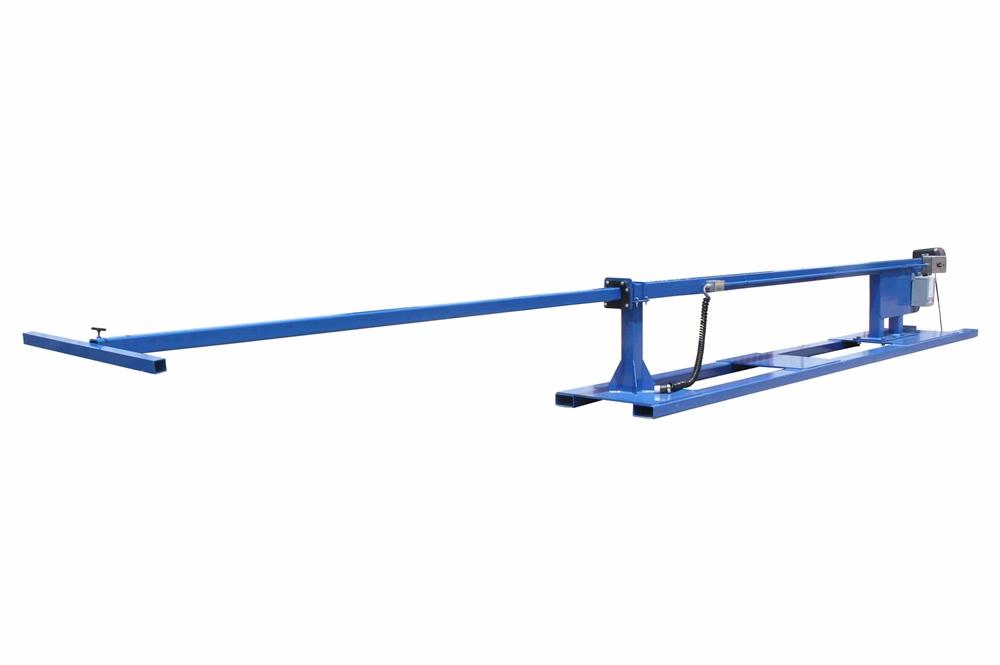

30 Foot Horizontal Light Mast - Electric - Weighted Skid Base w/ Support Leg

LARSON ELECTRONICSSKU: PL3-LM-30-HZ-EW-WB
filler

Price:
Sale price$38,598.00

Description

Specifications / Additional Information
LM-30-HZ-EW-WB Horizontal Light Tower Quick Summary
Length: 17 feet - 30 feet 17/30 Ft Light Mast
Weight: 400 lbs Steel Construction
Capacity: 125 lbs Electric Operation
Materials: Steel Counterweight arm
Finish: Powder Coated - Gloss Blue UL 508A
Operation: Electric Motor / Lead Screw
Winch Voltage: 120V or 240V AC 50/60 Hz
Mounting: Weighted Steel Skid Base Toll Free: 1-800-369-6671
Shipping: Common Freight Intl: 1-214-616-6180
Shipping Weight: 540 lbs Fax: 1-903-498-3364
Options: Length- Mounting-Fixtures/ Call Us for Special Requirements E-mail:
' Product Overview '
This unit is Made In USA - Manufactured in Texas The Larson Electronics LM-30-HZ-EW-WB Horizontal Light Mast with Weighted Skid Base provides a safe and effective way for operators to quickly deploy lights, security cameras and other equipment to lengths up to thirty feet. *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO LIGHT MASTS OR LIGHT TOWERS* Larson Electronicss’ horizontal steel light tower mast is designed to allow operators to quickly and safely deploy lighting and other electrical equipment in locations where this equipment must be extended to lengths up to 30` for effective application. This two stage light boom can be extended to 30` for maximum area coverage and retracted to 17` when not in use. The tower is constructed of square steel tubing with a stationary section 17` in length and 4" by 4" by 1/8" thick and a telescoping section 13` feet in length and 3 inches in diameter. The mast is extened and retracted using an included electric motor and lead screw.
Click Photo to Enlarge
The tower and assembly is powder coated with glossy blue finish for corrosion resistances and aesthetics. This mast is bolted onto weighted steel plate with skid pockets allow this unit to be picked up from sides. A pivioting support leg extending from stationary stage provides increased stabilization for the mast and equipment during operation. A 24" wide and 2" by 2" by 1/4" thick mounting plate is attached to the telescoping section of the mast which provides a strong and stable platform for the fixtures and equipment. The weighted skid base is the first point of contact and the pivoting weight arm is the second point of contact. This reduces the amount of counerweight necessary. The electric winch on this mast is offered in 120V or 240V AC 50/60 HZ. Additional voltage options are available at an additional charge. Larson Electronics can offer single phase and three phase AC winches, or low voltage DC winches. This light tower weighs approximately 400 lbs, can easily support and lift 125 lbs fixtures. The entire tower assembly is shipped via common freight carrier and when shipped measures approximately 15 feet long, 4 feet wide, 3 feet tall and weighs 540 lbs. Suggested Applications: Lighting and security camera deployment. We can equip this mast with 1000W or 1500W Metal Halide lights or a wide variety of high powered LED lights with comparable power, including the , or .
