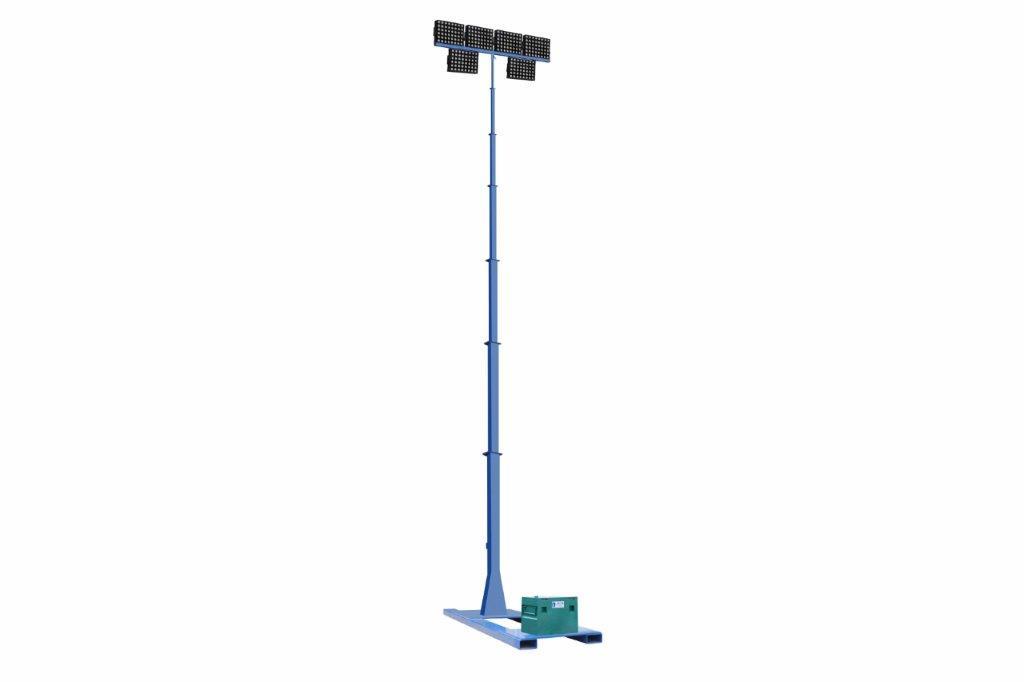

The LM-HA-SMWB-60-15-7S-KT-6X500LTL-SYNC LED Light Tower from Larson Electronics offers intense illumination for outdoor locations. This 7-stage unit can be extended to 60 feet and retracted to 15 feet for seamless storage. Six, 500-watt LED lamps are secured at the top of the tower, which provides 405,000 lumens of output. Equipped with auto retract, a complete hydraulic kit and sync`d controls, the entire system can be secured on concrete pads for permanent installations.
The LM-HA-SMWB-60-15-7S-KT-6X500LTL-SYNC from Larson Electronics is designed for large-scale illumination in outdoor sites. Equipped with six LED light heads, the lighting system produces 405,000 lumens of high intensity light while drawing 3,000 watts. The mast can be extended to 60 feet for maximum area coverage and collapsed to 15 feet for applications where a footprint smaller is required. The tower is constructed of square steel tubing and is elevated using a hydraulic system.
Fourty-Eight CREE high output LEDs producing 1,406 lumens each are arranged in rows and paired with PMMA high purity optics to produce a well focused 24° wide spot beam that is ideal for providing far reaching concentrated illumination while still covering a substantial amount of area. We also offer optional optics with 10° spot, 38° narrow flood, 60° flood, and 90° wide flood beam spreads. The spot beams are tightly focused and are designed for high elevation mounting to achieve distance, making spot versions ideal for high mast and spots lighting. The flood beams are designed to provide more light over a larger area nearer the fixture, making flood versions ideal for use as dedicated work and area lights.
The LED lights are ideal replacements for fragile and hot running 1000 watt metal halide lamps. They offer low power requirements, high durability and a versatile mounting system that makes these LED light emitters a superior lighting solution for demanding applications where power and reliability is critical. The heavy duty design and high power of these LED lights also makes them suitable for a wide array of applications including but not limited to: high mast lighting, light towers, light plant LED retrofits, military, mining, industrial manufacturing, machine visioning, security and law enforcement, commercial structure illumination, sport complexes, billboards, race tracks, and parking lots to name a few.
Heat Management:
Heat is the single largest factor in premature LED failure and color shifting. These LED units feature individual heat sinks per bank of six LEDs to control heat buildup rather than utilizing a single housing to dissipate heat. This allows for more thorough cooling of the LEDs for extended operating periods. This allows the LEDs to be driven at up to 90% capacity without overheating or visible loss of light output. The end result is more light with less heat and longer LED life with an average 70% lumen maintenance after 80,000 hours.
Durability:
As well as unparalleled heat control, the LM-HA-SMWB-60-15-7S-KT-6X500LTL-SYNC series of LED lights from Larson Electronics also offer IP67 rated construction that is designed to withstand extremes of environmental and operating conditions. These units can withstand rapid temperature changes of -40° Celsius to +80° Celsius, are waterproof, and resist ingress of dust, dirt and humidity. The housings are formed from die cast aluminum and the optics are high transmission PMMA with 98% light transmittance. The CREE LEDs help these units achieve resistance to vibrations and are rated at 70% lumen maintenance after 80,0000 hours of use. We recommend these LED lights for use in applications where a lot of vibration, dust, dirt, dampness and abusive working conditions are encountered.
Telescoping Boom/Controls:
The hydraulic telescoping boom is constructed of heat treated aluminum with a powder coated finish and extends to 60` in height and retracts to 15`. This boom is raised from and lowered to the folded position by a single hydraulic ram and extended or retracted by a second hydraulic system.
Sync`d controls allow multiple LED light towers to be connected together. In such configuration, operation for the linked units are facilitated by a single control station.
Auto Retract:
To prevent damage and shaking from strong winds during operation, this light tower is equipped with a robust wind monitoring system. When exposed to strong winds, such as 40 mph, the system automatically retracts the mast for safe operation. In a retracted state, operators must re-adjust the height of the mast back to its original height (or another preferred height). This cutting-edge feature is designed to improve safety at industrial work sites.
This light plant can withstand 35 mph winds before auto retract when fully extended, with standard guy wires to the outriggers. When guy wires are applied 60 feet out from the side of the trailer, the light tower can withstand 50 mph winds before auto retract. When auto retract is activated, operators must send the mast back to its original position or preferred height setting.
Hydraulic Kit:
Equipped with a complete hydraulic kit, this light mast is elevated using a hydraulic ram and chain system. The base stage is raised via a hydraulic ram. The other stages are then raised via a chain system that is triggered by the action of the hydraulic ram. No manual winch is required at any point of the elevation process which makes operation convenient and seamless. Separate hydraulic controls are needed for syncing with other masts.
Skid Mount:
The LM series of towers are powder coated with glossy blue finish for corrosion resistances and aesthetics. This light mast is mounted to a skid base with four side skid pockets to allow for fork lifts and skid steers to transport this unit from all four sides of the unit. Operators may also choose to permanently mount the mast on concrete pads. A support arm at the end of the skid supports the mast in the collapsed position. The weighted base allows this mast to be deployed without permanently mounting the mast, and includes four corner 1/2" OD anchor holes to anchor the unit down for long term deployment. 4-corner pick eyes allow this unit to be transported via crane lift or air transport in remote locations.
This light tower weighs approximately 650 lbs, can easily support and lift 250 lbs fixtures. The entire tower assembly is shipped via common freight carrier and when shipped measures approximately 16.67 feet long, 4 feet wide, 4 feet tall and weighs approximately 650 lbs. Larson Electronics can custom tailor these units to the customer’s requirements with longer sections and larger mounting plates. We also offer a choice of either the manual 1,000 lbs hand winches included standard or optional electric winches.
Applications:
Outdoor illumination, stadiums, fields, remote work sites, concerts and more.
Contact info@purilite.ca for more information about our custom options tailored to meet your specific industry needs.
Specifications
Mast Specs
Tower Height: 15` to 60`
Stages: 7
Operation: Hydraulic Ram - Base Stage, Chain - Additional Stages
Chain: (3) Sets, Between Each Stage
Materials: Steel
Finish: Powder Coated - Gloss Blue
Mount: Skid Base
Safety: Auto Retract
Hydraulic Kit: Included (Hose, Pump, Fluids, Etc.)
LED Lamp Specs
Lamp Type:
Voltage: 120-277V AC or 127-431V DC
Total Watts: 3,000W
Total Lumens: < FONT>405,000
Luminous Efficiency: 135 lm/w
Beam Configurations: 10° Spot, 24° Wide Spot, 38° Narrow Flood, 60° Flood, or 90° Wide Flood
LED Color Temperature: Cool White - 5500-6500K
LED Life Expectancy: 80,000 hours
Optics Efficiency: 98% - PMMA High Transmittance Optics
Amp Draw: 30A @ 120V, 15A @ 240V, 16.02A @ 277V
Ambient Temperature Range: -40°C to +80°C
Wiring: 2.5` Pigtail w/ Flying Leads
Weight: --
Shipping: Common Freight
Shipping Weight: -
