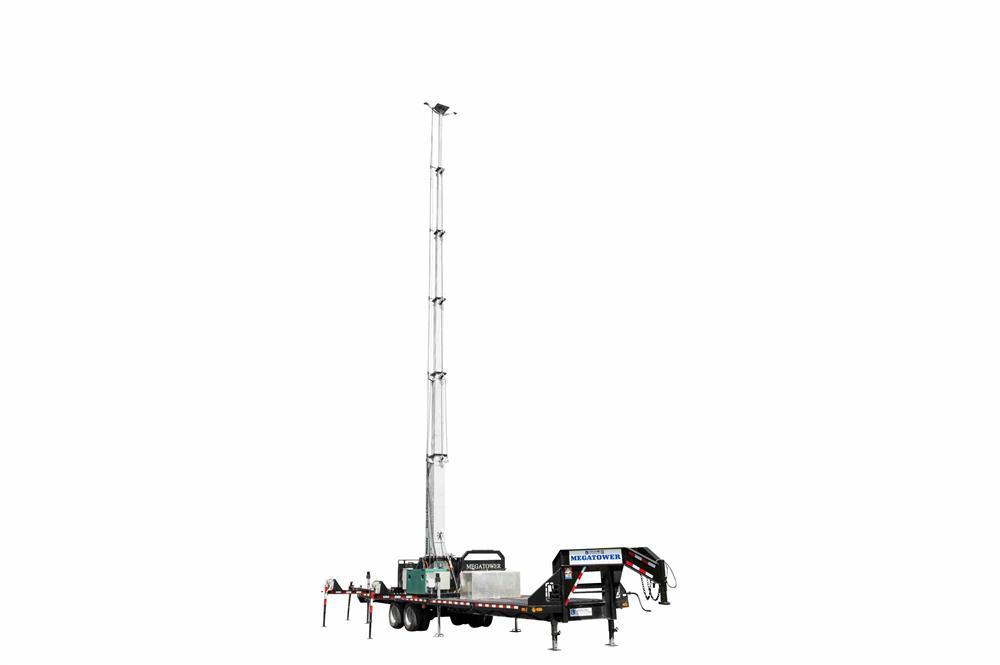

77' Hydraulic Megatowerâ„¢ - 33' Gooseneck Trailer - Galvanized Steel Mast - No Lights

LARSON ELECTRONICSSKU: PL3-LM-HLM65-TLR
filler

Price:
Sale price$312,662.00

Description

Specifications / Additional Information
WCDE-20-HLM100-WSM Trailer Mounted Megatowerâ„¢ Quick Summary
Genset Specs: 11KW Kubota Brushless Genset
Genset: 20kw 110 Gallon External Fuel Cell
Engine: Perkins 28.9HP Cold Weather Package Factory Installed
Engine Type: Vertical, liquid-cooled, 4-cycle diesel engine, naturally aspirated Up to 43 Hour Continuous Operation
Engine Speed: 1800 RPM 33.5` to 100` Mast
No. of Cylinders: 4 Hydraulic Aluminum Mast
Generator: 20KW Stamford Brushless Steel Construction Trailer
Voltage: 120/240V Single Phase Hydraulic Mast Operation
Battery: 12V @ 36aH Powered Boom Deployment
Fuel Cell Capacity: 110 Gallons - External Tank w/ Anti-Splash Baffles Steel Trailer w/ Industrial Grade Paint Finish
Fuel Delivery: Electric Towable Height Under 13` w/ Light Heads
Sound Level: 68 dB - Full load @ 23` away 6-Point Outrigger System
Cold Weather Package: Yes - Factory Included 7,000 lb Leveling Jacks
Powered Boom Deployment
Mast Specs External Oil Pump System-Change Oil Every 3,000 Hours
Tower Length: 30` to 100` Wind Speed Monitoring System
Materials: Carbon Steel Auto Retract
Finish: Galvanized
Operation: Hydraulic (Upright and Extension)
Safety: Wind Speed Monitoring System/Auto Retract
Mounting: 16" x 16" Mounting Platform for Customer-provided Equipment
Capacity: 3,000 lbs

Trailer Specs
Materials: Steel
Trailer Dimensions: 33`-L x 8`-W trailer bed
Height (Mast Collapsed): 33`-H
Height (Mast Extended): 100`-H
Footprint (Outriggers Extended): 36` x 19`-11"
Hitch: Gooseneck (12" I-beam Construction)
Wiring: 7-Pin Flat
Axles: (2) 10,000 lbs w/ Electric Brakes
Suspension:  Tandem Dually
Outriggers: (6) 12` x 12" x 12" I-Beams Retractable w/ (6) 7,000 lbs Manual Leveling Jacks
Wheels: (8) 16" 5x4.5" Steel Rims
Tires: (8) P235/80R16 Toll Free: 1-800-369-6671
Weight: Intl: 1-214-616-6180
Shipping: Common Freight
Shipping Weight:
' Product Overview '
This unit is Made In USA - Manufactured in Texas The LM-HLM65-TLR from Larson Electronics is a Trailer Mounted Hydraulic Megatowerâ„¢ for heavy-duty industrial applications. This trailer-mounted fold over 7-stage hydraulic tower provides a safe and effective way for operators to quickly deploy customer-provided lights or equipment to elevations above 65` (ground to mast head), reaching a total height of 77` (with 11` of mast head assembly). This trailer-mounted tower features a choice of 120/240V or 120/208V single-phase or 240V/120 or 208V/120 three-phase power distribution panel with customer-provided connection. This hydraulic light tower folds over for easy transportation, features a hydraulic ram upright assist and hydraulic mast. The entire assembly is mounted onto a 33` dual tandem axle gooseneck trailer, allowing operators to transport this fold over boom from location to location. The LM-HLM65-TLR has been designed to hold steady through extreme conditions and can be easily transported through any kind of rough terrain. *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO LIGHT MASTS OR LIGHT TOWERS* The LM-HLM65-TLR is a versatile trailer-mounted tower that is capable of securing lights and equipment in elevated positions. This unit is equipped with a choice of 120/240V or 120/208V and single or three-phase power distribution panel with a customer-provided connection. The hydraulic telescoping mast can be extended to heights above 65`. The hydraulic tower is capable of reaching heights up to 77` with the mast head assembly, which measures 11` in height. They heavy-duty nature of this Megatower makes it ideal for mining-grade applications, as well as large scale event illumination, construction, industrial operations, and anywhere a rugged mobile full power lighting system capable of extended operation is needed. A 90" wide by 132" tall and 2" by 2" by 1/4" thick steel mast head is attached to the upper section of the mast which provides a strong and stable platform for customer-provided lights or equipment, which can be mounted to the head of the tower. The boom can be collapsed to 30` for applications where a footprint smaller is required. The tower is constructed of carbon steel tubing with 2` foot of overlap per section. The mast is elevated using an included hydraulic ram and extended to its full height using a second hydraulic system.
Click Images to Enlarge
  Telescoping Boom: The hydraulic telescoping boom is constructed of carbon steel with a galvanized finish and extends to 65` in height from the ground to the mast head and 77` of total height with the tower assembly (measures 11` in height). This boom is raised from and lowered to the folded position by a single hydraulic ram and extended or retracted by a second hydraulic system. Wiring/Controls: Each bank is wired into the NEMA 3R breaker control box at the base of the mast. Operators control customer-provided light heads or equipment via an on/off switched breaker per bank of five light heads. The hydraulics are also powered from within this breaker box. The mast elevation is controlled by a push button switch to operate the hydraulic ram allowing operators to raise the mast to the upright position. The vertical deployment is operated by a second push button switch allowing operators to extend it to its full 77` height or retract it to the collapsed height.
