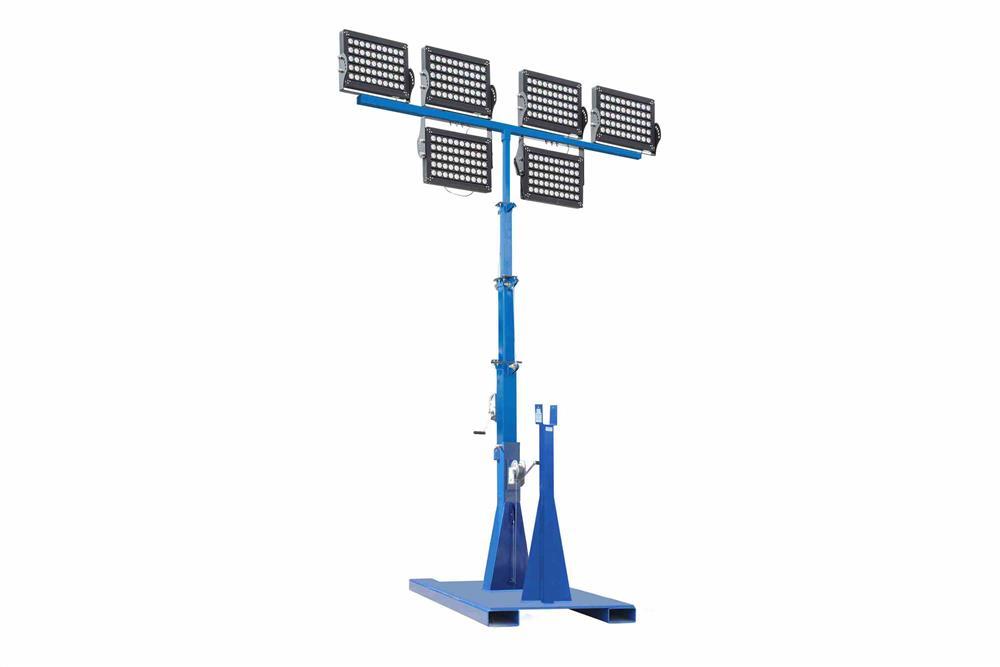

1500W LED Light Tower - 6.7' to 20' - Telescoping Fold Over - (6) LED Lamps w/ Diffusers

LARSON ELECTRONICSSKU: PL3-LM-SMWB-20-6.75-5S-6X250W-LED-OPQ-50C
filler

Price:
Sale price$31,560.00

Description

Specifications / Additional Information
LM-SMWB-20-6.75-5S-6X250W-LED-OPQ-50C Three Stage LED Light Tower Mast Summary
Lamp Type: Bridgelux® LED 6.7` to 20` Light Mast
Lamps: (6) 250 Watt LED Fixtures Steel Construction
Total Watts: 1500 (250W per lamp) Power Coated Finish
Total Lumens: 194,400 (32,400 per lamp) Removable Mast Head
Luminous Efficiency: 135 lm/w 125 mph Wind Resistance
LED Life Expectancy: 80,000 hours Manual or Optional Electric Operation
Optics Efficiency: 98% - PMMA High Transmittance Optics LED Lamp Head Summary
LED Drive %: 90% High Output LED Lamps
Lighting Configuration: Flood Pattern Extreme Area Coverage
Color Temp: 6000K Direct Replacement for (6) 550W MH Towers
Ambient Temp Rating: -40°C to +80°C 194,400 Total Lumen Output
Power Factor: >97% Independently Adjustable Light Heads
Lamp Voltage: Universal 120-277V AC 50/60 Hz Dial-in Adjustability per light head
Mast Length: 6.7` to 20` 98% Transmission High Purity PMMA Optics
Weight: +-600 lbs Multiple LED Banks for Heat Dispersion
Materials: Steel 135 Lumens Per Watt Efficiency
Finish: Galvanized, Powder Coated Gloss Blue 70% Lumen Retention after 80,000 Hours
Voltage: Universal 100-277V AC, 50/60Hz IP67 Waterproof LED Fixtures
Operation: (2) 1,000lbs Hand Winches, Electric Optional Polycarbonate Diffusers
Cable: 3/16 Aircraft Grade Galvanized Steel Cable
Mounting: 6` Skid Base - Truck Beds or Skid Mount
Wiring: 50` 16/3 SOOW Cable from Base of Mast w/ Gen App Cord Cap
Cord Cap: Cord Cap: 5-15, 6-15, 5-20, 6-20, 5-30, 6-30, L5-15, L6-15, L5-20, L6-20, L5-30, L6-30, L7-15, L7-20, L7-30, L14-20, L14-30, BS1363, Schuko, or Pigtail Toll Free: 1-800-369-6671
Shipping Weight: +-800 lbs Intl: 1-214-616-6180
Shipping: Common Freight
Options: Length- Mounting-Fixtures/ Call Us for Special Requirements
' Product Overview '
Made in the USA The Larson Electronics LM-SMWB-20-6.75-5S-6X250W-LED-OPQ-50C skid mounted fold over light mast provides a safe and effective way for operators to quickly deploy 1500 watts of intense LED lighting to elevations up to twenty feet. Six 550 watt equivalent high output LED lights produce a wide spread of intense white light, allowing this unit to effectively cover large work areas with high quality illumination. This light tower is mounted onto a skid base and folds over for easy transportation, features a rotating boom that allows for 360° of rotation, and a removable mast head for storing mounted equipment when not in use. *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO LIGHT MASTS OR LIGHT TOWERS* The LM-SMWB-20-6.75-5S-6X250W-LED-OPQ-50C is designed to quickly and safely deploy 1500 watts of intense LED lighting in locations where elevated illumination is needed for maximum area coverage. This light boom can be extended to 20 feet for maximum area coverage and collapsed to 6.7 feet for applications where a footprint smaller is required. This LED light tower features a 50-foot 16/3 SOOW cord with a choice of general application cord cap. The mast is elevated using an included 1,000 lbs hand winch with 3/16 inch cable and extended to its full height using a second 1,000 lbs winch. Lights: The lighting system on this articulating light mast is comprised of six our of 250 watt LED lamps producing 32,400 lumens of light each attached to the end of the telescoping pneumatic light boom. These floodlights produce a wide flood light pattern with a combined total of 1500 watts and 194,400 lumens of light. The GAU-LTL-250W-LED lights are ideal replacements for fragile and hot running 550 watt metal halide lamps, offering increased durability, longer lamp life, and lower power consumption. The entire lighting assembly is connected to the power source via a 4-switch control box. Each light head is on an individual circuit and can be powered on or off independently of the other light fixtures. Each LED light head is equipped with an opaque polycarbonate diffuser. This component prevents visual strain ("ball in the eye" effect) and reduces the creation of glare at the site. Heat Management: Heat is the single largest factor in premature LED failure and color shifting. These LED units feature individual heat sinks per bank of six LEDs to control heat buildup rather than utilizing a single housing to dissipate heat. This allows for more thorough cooling of the LEDs for extended operating periods. This allows the LEDs to be driven at up to 90% capacity without overheating or visible loss of light output. The end result is more light with less heat and longer LED life with an average 70% lumen maintenance after 80,000 hours. In addition, should an LED failure occur, these LED flood lights are field serviceable. Each bank of six LEDs can be replaced with the fixture installed. This allows for the tower to stay in operation until repairs can take place, and eliminates the need to remove and disassemble the entire fixture for repairs. Durability: As well as unparalleled heat control, the GAU-LTL-250W-LED series of LED lights from Larson Electronics also offer IP67 rated construction that is designed to withstand extremes of environmental and operating conditions. These units can withstand rapid temperature changes of -40° Celsius to +80° Celsius, are waterproof, and resist ingress of dust, dirt and humidity. The housings are formed from die cast aluminum and the optics are high transmission PMMA with 98% light transmittance. The Bridgelux® LEDs help these units achieve resistance to vibrations and are rated at 70% lumen maintenance after 80,000 hours of use. We use these LED lights for applications where a lot of vibration, dust, dirt, dampness and abusive working conditions are encountered.
The above image shows the comparison of the traditional 1000 watt metal halide light plant such as our LM-30-3S-4X1000W (left) to the LM-SMWB-20-6.75-5S-6X250W-LED-OPQ-50C LED light tower. The area being illuminated by each tower is 300` in length and 250` in width. Unlike the metal halide light plant, there are no hot spots with the LED plant. This high output LED light plant provides an even beam spread over the targeted work area without overcast, glare, light spillage, and wasted illumination. Color rendering is also increased with LED light plants, providing a more realistic night vision that more closely resembles natural daylight illumination.
Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current applied and emitting light. With LED lights, there is no warm up time or cool down time before re-striking and provide instant illumination when powered on, adding to the reliability of LED technology. By nature, LED light sources run significantly cooler than traditional lamps, reducing the chance of accidental burns and increased temperatures due to heat emissions. This solid state design of light emitting diodes provides a more reliable, stable, durable, and energy efficient light source over traditional lighting.
Click Photos to Enlarge
5-15 Straight Blade Plug 15 Amp / 125V Rated L5-15 Twist Lock Plug 15 Amp / 125V Rated L6-15 Twist Lock Plug 15 Amp / 250V Rated
UK BS1363 Straight Blade Plug 13 Amp / 250V Rated / Internal Fuse Intl Schuko 2-Pin Plug 16 Amp / 250V Rated / Grounded Flying Leads / Pigtail Wires
Wiring and Plug: This skid mounted light mast is equipped with 50 foot of 16/3 chemical and abrasion resistant SOOW cord that is fitted with an industrial grade cord cap for easy connection to common wall outlets. Plug options include standard 5-15 15 amp straight blade plug for 110V wall outlets with ground, standard 5-20 20 amp straight blade plug for 125V wall outlets with ground, standard 5-30 30 amp straight blade plug for 125V wall outlets with ground, standard 6-15 15 amp straight blade plug for 220-240V wall outlets with ground, standard 6-20 20 amp straight blade plug for 250V wall outlets with ground, standard 6-30 30 amp straight blade plug for 250V wall outlets with ground, NEMA L5-15 15 amp twist lock plug for 125V twist lock outlets, NEMA L5-20 20 amp twist lock plug for 125V twist lock outlets, NEMA L5-30 30 amp twist lock plug for 125V twist lock outlets, NEMA L6-15 15 amp twist lock plug for 240V twist lock outlets, NEMA L6-20 20 amp twist lock plug for 250V twist lock outlets, NEMA L6-30 30 amp twist lock plug for 250V twist lock outlets, NEMA L7-15 15 amp twist lock plug for 277V twist lock outlets, NEMA L7-20 20 amp twist lock plug for 277V twist lock outlets, NEMA L7-30 30 amp twist lock plug for 277V twist lock outlets, NEMA L14-20 20 amp twist lock plug for 125/250V twist lock outlets, NEMA L14-30 30 amp twist lock plug for 125/250V twist lock outlets, British BS1363 13 amp fused 3-blade plug for United Kingdom outlets, or a two pin 16 amp rated Schuko plug with ground contact and socket for European outlets up to 250V. Alternatively, we can provide flying leads with no plug for hard wire applications or for operators who prefer to wire in user provided cord caps. Please choose pigtail option below for flying leads with no plug. Mounting: This light mast is mounted to a 6` skid base, which allows operators to secure the unit on truck beds 6` in length (tied down via slots at each corner). The light tower can also be removed and skid mounted on a concrete pad for deployment at work sites. For ease of deployment, the light heads can be removed. The four side skid pockets enables fork lifts and skid steers to transport this unit from all sides. A support arm at the end of the skid supports the mast in the collapsed position. The weighted base allows this mast to be deployed without permanently mounting the mast, and includes anchor holes to anchor the unit down for long term deployment. Each floodlight is securely fastened to the mast head with an innovative trunnion style stainless steel mounting bracket that allows the light to be adjusted through 180° of vertical movement. To vertically adjust the unit after mounting, the user simply loosens the screws located on either side of the unit, moves it into the desired position, then re-tightens the screws. The base of the mounting trunnion is equipped with several machined slots which allow users to utilize existing mounting holes and slide the unit for precise mount positioning.
Click Image to Enlarge Click Image to Enlarge Click Image to Enlarge
The LM family of telescoping towers feature a proprietary mast guidance system, which provide increased stability during high winds. When lowered to 6.7 feet, the mast can withstand winds up to 125 mph. The LM series of towers are offered in two finishes: hot dip galvanized for superior corrosion resistance or powder coated with glossy blue finish for corrosion resistances and aesthetics. A 44" long mounting plate constructed of thick carbon steel is attached to the upper section of the mast which provides a strong and stable platform for the four LED fixtures. This light tower weighs approximately 600 lbs, can easily support and lift 150 lbs fixtures. The entire tower assembly is shipped via common freight carrier and when shipped measures approximately 16.5 feet long, 4 feet wide, 5 feet tall and weighs approximately 1200 lbs. Larson Electronics can custom tailor these units to the customer’s requirements with longer sections and larger mounting plates. We also offer a choice of either the manual 1,000 lbs hand winches included standard or optional electric winches. Suggested Applications: With its easy deployment the LM-SMWB-20-6.75-5S-6X250W-LED-OPQ-50C is ideal for use in applications that require regular intensive cleaning and are exposed to a lot of vibration, dust, dirt, where abusive working conditions are encountered, temporary lighting, and construction sites
