MPD-CD1-NTL.30AB-YT11DE-DZ-1.L34-M1 - Temporary Power Distribution System | Ratings | |
Line-in Cord: 25' #10/5 AWG TYPE SOOW Cord [600V] | Max Primary OCP: 30A @ 208V | |
Line-in Cord Cap: L21-30 NEMA Male [208Y/120] | Max Secondary Output: 10A @ 480V | |
Primary Voltage (V): 208Y/120 Wye | NEMA 3R Indoor or Outdoor Use | |
Primary Phase (PH): 3-Phase (3PH) | NEMA 3R In-Use Weather Shield | |
Primary Frequency (HZ): 60 Hz (60-cycles) | Made in the USA | |
Primary Breaker: (1) 30A 3P MCCB [250V] | NRTL Certified to UL 1640 | |
Primary Protection: MCCB Circuit Breaker | NRTL Certified to CSA C22.2 No. 14 | |
Transformer (KVA): 11 KVA 208Y/120 Wye to 480V Delta 3PH N3R | Â | |
Secondary Voltage (V): 480V Delta | Powder Coat Finish Standards: | |
Secondary Phase (PH): 3-Phase (3PH) | Complies with ASTM D-523 | |
Secondary Frequency (HZ): 60 Hz (60-cycles) | Complies with ASTM D-3359 | |
Secondary Panel: 480V 3PH 13A MLO N3R | Complies with ASTM D-522 | |
Secondary Breakers: (1) 10A 3P MCB [480V] | Complies with ASTM D-3363 | |
Secondary Outlets: (1) L16-20R NEMA [480V] - Maximum Output: 10 Amps | Complies with ASTM D-2794 | |
Secondary Protection: MCB Circuit Breaker, Weather-proof Covers | Â | |
Form Factor: Blue Powder Coated Steel Hand Dolly w/ Run Flat Tires | Â | |
Front Cover: Weatherproof Lid w/ Front-located Handle and Lock | Â | |
Cover Locking Position: Upward w/ Internal Locks on Both Sides of the Lid | Â | |
Vibration Isolators: Transformer and Breakers | Â | |
Drain Plug: Panel | Â | |
Cart Material: Steel | Â | |
Cart Finish: High-strength TGIC Polyester Powder Coated Blue | ||
Cart Handle Orientation: Horizontal | ||
Lifting Eyelet: (1) Center Point | ||
No-flat Tires: (2) Black | ||
Dimensions: 41"-W x 30"-D x 66.5"-H | ||
Weight: 350 lbs | ||
Larson Electronics manufactures a wide variety of custom power distribution systems. The pictures displayed for this unit are a general representation of form factor and may not accurately represent this exact configuration in every detail due to being custom builds. The specifics for this configuration are listed in the specification table and one-line diagram. | *All grounding shall comply with state and local codes and meet the minimum requirements of the National Electronic Code section 250* | Â |

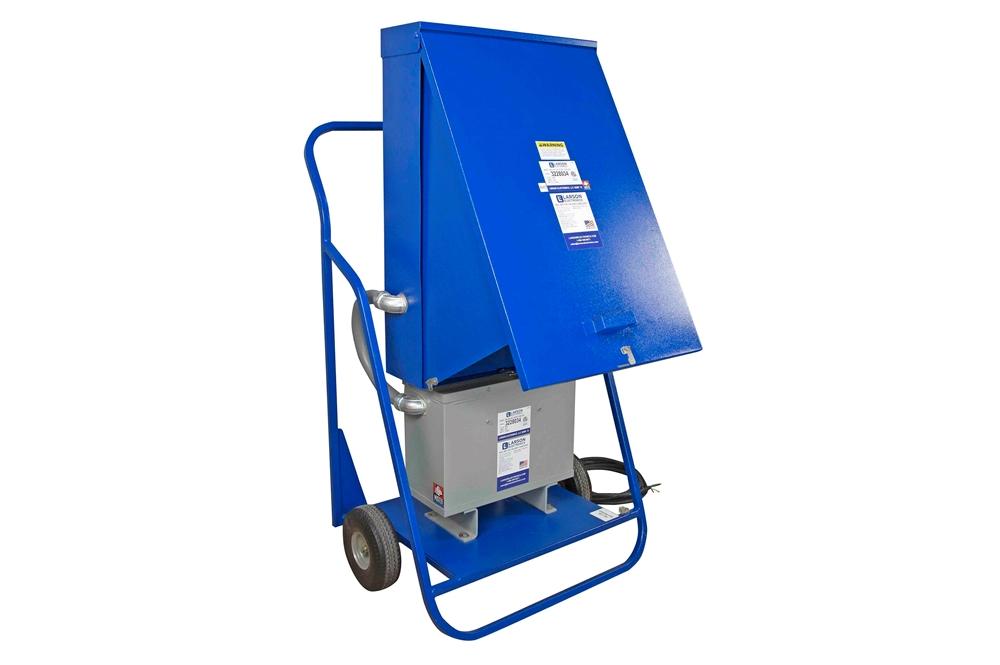

Made in Texas The Larson Electronics MPD-CD1-NTL.30AB-YT11DE-DZ-1.L34-M1Â temporary power distribution system converts three-phase 208Y/120V AC Wye electrical current into three-phase 480V AC Delta. This unit provides operators the ability to safely tap into and distribute 208Y/120V AC Wye power from a variety of sources including generators and direct grid power. *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO POWER DISTRIBUTION PANELS, TRANSFORMERS, OR SUBSTATIONS* The MPD-CD1-NTL.30AB-YT11DE-DZ-1.L34-M1Â temporary power distribution system gives operators the ability to power their 480 volt equipment from a single system. Operation: Primary Voltage: 3-phase 208Y/120 Wye Primary Receptacles: N/A Transformer: 11KVA 208Y/120 Wye to 480V Delta 3PH N3R Secondary Voltage: 3-phase 480V Delta Secondary Receptacle: (1) L16-20R NEMA [480V] *Maximum Output: 10 Amps* *See specification table at the top of the page for more information about the power distribution system. Protective Construction: A weatherproof flip cover at the front of the unit can be lifted upwards via an accessible handle, which serves as protection for (primary and secondary) breakers and receptacles in rugged environments when deployed at the site. Operators may access locks on the door and on the ears (accessible from the inside of the lid) of the panel. The panel can be positioned upwards and locked in place for easy access to receptacles and breakers. A drain plug on the panel helps the power distribution system achieve a NEMA 3R rating, allowing the unit to be used in both indoor and outdoor locations. The transformer is protected by vibration isolators that reduce damage to exterior jacket of wiring components and decrease noise during operation. In MGL-style power distribution systems, the presence of vibration isolators ensures wiring between the transformer and panel is well protected and does not have to be frequently replaced. Vibration isolators can also be found on the breakers, which protect the breakers from damage, prevent loose bolts/nuts and reduce overall noise during use in the field. The power distribution system is constructed of steel with a polyester powder coated blue finish for durability against dirt, moisture and mild corrosion. This special coating creates a high-strength barrier for protection from accidental bumps and scratches. The TGIC polyester powder coat finish offers reliable resistance against chemicals, UV light (sun light) and degrading elements in outdoor locations. Our powder coating solution ensures robust color retention for many years without fading. Custom colors, such as black, grey, desert tan or forest green, and galvanized finishes are available upon request. Non-standard powder coat colors or galvanized finishes may increase price and lead times. The transformer and load center/distribution assembly is mounted to a standard steel cart style frame resulting in an extremely stable, durable, and mobile power distribution platform. Two rubber tires and a cart style mounting platform provides easier substation mobility, and a center point lift eye allows easy lifting with cable or chain hooks. This temporary power distribution solution can be modified to meet the needs of job-site receptacle requirements. Larger units are available upon request and can be equipped with skids or trailer mounted. Certification: All units are built in accordance to NFPA 70 (National Electric Code) and NRTL certified to UL 1640. All equipment is NEMA 3R rated for indoor and outdoor use and provide a degree of protection against dirt, water, and ice. NEMA 4 and NEMA 4X equipment can be equipped upon request. Grounding: Transformer is grounded to the frame and we provide a grounding lug on the frame for the earth ground. ~Please check all motor loads for dual rated motors that will work 208 or 240.~ Applications: This power distribution system is ideal for indoor or outdoor use and applications including but not limited to, construction sites, plant maintenance, plant turnarounds, shows, exhibits, and shipyard operations. These power distribution systems are popularly used in applications where external power sources are often necessary. We also offer class rated transformers for use within explosion proof and hazardous location environments. Custom Built Systems Available: Larson Electronics is a manufacturer and we can build portable power distribution systems to your specifications. Although we carry several models of portable power distribution systems in stock, we can deliver custom ordered units almost as quickly as our prebuilt units. If this model does not meet your needs, please contact us at 1-800-369-6671 or to discuss your specific requirements. |
