Heavy Duty Military Spider Box - 120/208V 3-phase - 60A Class L Inlet/Outlet, (6) 20A 125V Receptacles - Cage
Heavy Duty Military Spider Box - 120/208V 3-phase - 60A Class L Inlet/Outlet, (6) 20A 125V Receptacles - Cage
| MPD-MS-92LF-YT0YT-ZZ-1.MS32-6.N07-M1 Spider Box | Ratings/Approvals |
| Input: 60A Milspec Class L [120/208V] | NRTL Certified to UL 1640 |
| Primary Voltage: 120/208V AC Wye, 3-phase | NEMA 3R Weatherproof |
| Output: 60A Milspec Class L [120/208V] | Secondary Overload, GFI Protection |
| Secondary Voltage: 125V AC |  |
| Secondary Receptacles: (6) 20A Straight Blade GFI [125V] | |
| Secondary Protection: GFI (4 Devices), Overload, Weatherproof Covers | |
| GFI Trip Level: - | |
| Housing Material: - | |
| Mounting: Cage | |
| Dimensions: - | |
| Weight: - | |
| Color: Lusterless Forrest Green (RAL 110 30 10, Federal Standard 34083) - MIL-STD-1473A, Black Stripes | |

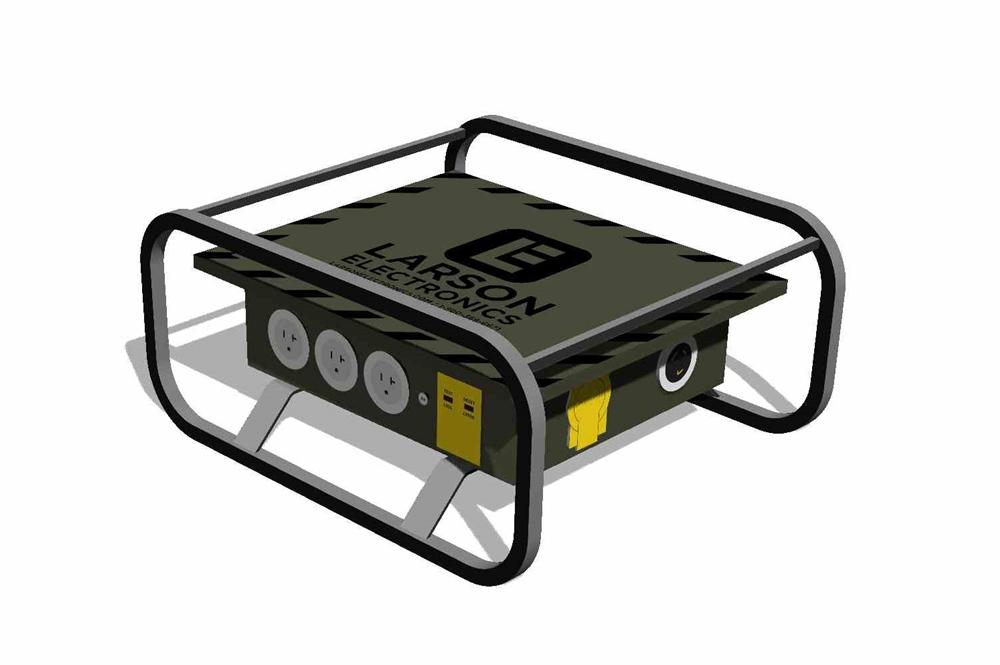

| Larson Electronics manufacture a wide variety of custom power distribution systems. The pictures displayed for this unit are a general representation of form factor and may not accurately represent this exact configuration in every detail due to being custom builds. The specifics for this configuration are listed in the specification table and one-line diagram. | *All grounding shall comply with state and local codes and meet the minimum requirements of the National Electronic Code section 250* |
| This unit is Made In USA - Manufactured in Texas The Larson Electronics MPD-MS-92LF-YT0YT-ZZ-1.MS32-6.N07-M1 is a Heavy Duty Military Spider Box for indoor, outdoor and rugged applications. This unit allows operators to use 120/208V 3-phase power via a milspec Class L electrical inlet. The device supports one milspec feed through outlet for 120/208V 3-phase equipment, as well as six straight blade 125V GFI receptacles. For robust protection, the NEMA 3R rated spider box is protected by a rugged cage. This portable spider box uses a 60-amp, 120/208V 3-phase milspec Class L inlet for bringing power into the unit, while the milspec outlet is a 60-amp, 120/208V 3-phase Class L feed through for powering 120/208V 3-phase tools and machines. The device supports one feed through receptacle for 120/208V equipment and six 20-amp straight blade 125V GFI receptacles with weatherproof covers. The MPD-MS-92LF-YT0YT-ZZ-1.MS32-6.N07-M1 spider box features overload protection for the secondary receptacles and GFI protection for four devices only. The housing on the MPD-MS-92LF-YT0YT-ZZ-1.MS32-6.N07-M1 carries a NEMA 3R enclosure rating for use in indoor, outdoor, wet and dry locations. A heavy-duty cage frame protects the unit from drops, bumps and objects. Certification: All units are built in accordance to NFPA 70 (National Electric Code). All equipment is NEMA 3R rated for indoor and outdoor use and provide a degree of protection against dirt, water, and ice. NEMA 4 and NEMA 4x equipment can be equipped upon request. Applications: Indoor or outdoor applications including but not limited to, construction sites, plant maintenance, plant turnarounds, shows, exhibits and shipyard operations. These units are popularly used in applications where external power sources are often necessary. We also offer class rated transformers for use within explosion proof and hazardous location environments. Larson Electronics is a manufacturer and we can build portable power distribution systems to your specifications. Although we carry several models of portable power distribution systems in stock, we can deliver custom ordered units almost as quickly as our prebuilt units. If this model does not meet your needs, please contact us at 1-800-369-6671 or to discuss your specific requirements.  |
