400A Rack Mount Mobile Power Distribution - 208Y/120 Input - 400A Camlock Inputs, (12) Receptacles - 12U Cart
400A Rack Mount Mobile Power Distribution - 208Y/120 Input - 400A Camlock Inputs, (12) Receptacles - 12U Cart
| MPD-SB12-CLP6.400AB-YT-Z-6.L35-6.N09-M1 Rack Mount Power Distribution | Ratings |
| Line-In Cord: N/A | Max Primary OCP: 400A @ 208V |
| Line-In Cord Cap: 400A Single-pole 16-Series Male Camlock Receptacles (1) grn, wht, blk, red, blu [600V] w/Flip Covers | NRTL Listed to UL 508A |
| Primary Voltage: 208/120V AC Wye | NRTL Listed to UL 1640 |
| Primary Phase (PH): 3-Phase (3PH) | NRTL Listed to CSA C22.2 No. 14 |
| Primary Frequency (HZ): 60 Hz (60-cycles) | Â |
| Primary Panel: 208Y/120V 3PH 400A MLO N3R | Â |
| Primary Breakers: (6) 30A 3P MCB [250V]; (6) 20A 1P MCB [125V] | Â |
| Primary Receptacles: (6) L21-30R NEMA Twist-Lock [120/208V]; (6) 5-20R NEMA DPLX [125V] | |
| Primary Protection: MCB Circuit Breakers; Flip Covers | |
| Form Factor: 12U Rack mount ATA Cube Case w/ Casters | |
| Frame Materials: - | |
| Dimensions: - | |
| Weight: - | |

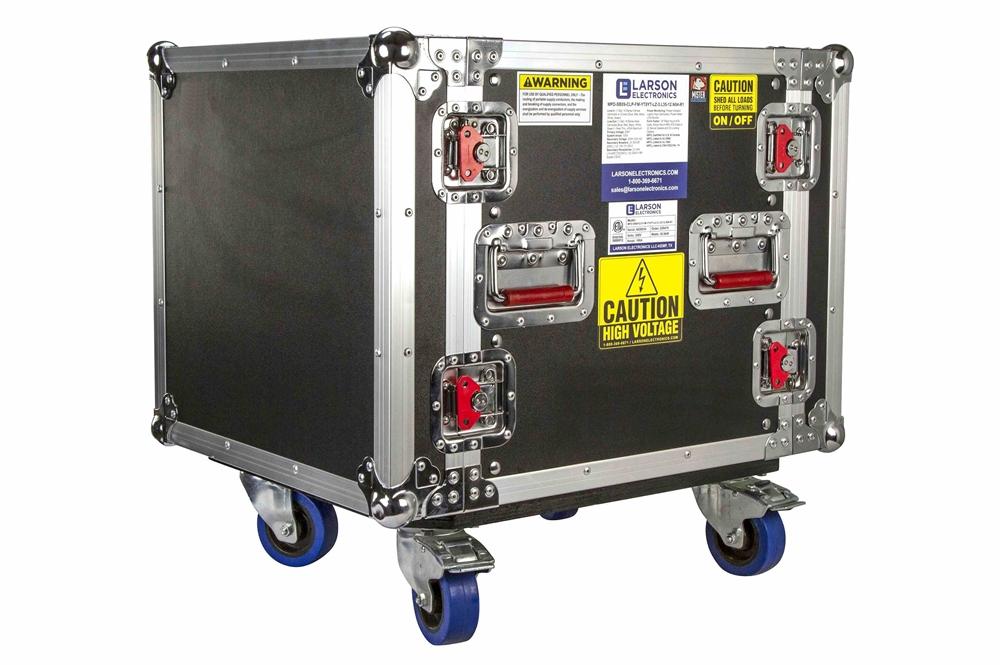

| Larson Electronics manufactures a wide variety of custom power distribution systems. The pictures displayed for this unit are a general representation of form factor and may not accurately represent this exact configuration in every detail due to being custom builds. The specifics for this configuration are listed in the specification table and one-line diagram. | *All grounding shall comply with state and local codes and meet the minimum requirements of the National Electronic Code section 250* |
| Made in Texas The Larson Electronics MPD-SB12-CLP6.400AB-YT-Z-6.L35-6.N09-M1 Rack Mount Mobile Power Distribution is a portable power solution designed for stages, movie sets, concerts and entertainment sites. This mobile power distribution unit provides operators the ability to safely tap into and distribute 208Y/120 AC power from a variety of sources, including generators and direct grid power, found in motion picture production. *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO POWER DISTRIBUTION PANELS, TRANSFORMERS, OR SUBSTATIONS* Portable Power Distribution Purpose and Use The MPD-SB12-CLP6.400AB-YT-Z-6.L35-6.N09-M1 portable power distribution system gives operators the ability to power their 208 volt and 120 volt equipment from a single system within live recording and entertainment venues. On the primary side, operators connect line-in power using one set of 16 series male camlock inputs with covers (blue, red, black, white and green). The primary side also contains six NEMA L21-30R twist-lock receptacles for 120/208V equipment and six NEMA 5-20R duplex receptacles for 120V equipment. Operation: One set of 400-amp 16 series male camlock inputs with covers (blue, red, black, white and green) brings three-phase 208Y/120 AC to the primary side of the mobile power distribution unit. The NEMA 3R 400-amp three-phase 208Y/120V main lug only panel is equipped with six 30-amp 3-pole 250V main circuit breakers protecting six 30-amp 120/208V L21-30R NEMA twist-lock receptacles and six 20-amp 1-pole 125V main circuit breakers protecting six 20-amp 125V 5-20R NEMA duplex receptacles. Protective Construction: All components are secured inside a compact 12U rack mount ATA case. This black case features side-located handles for mobility around the production or recording site. Four casters (two swivel and two locking) are available at the bottom of the power distribution unit, which allows operators to move the station easily without lifting. Dual locking casters ensure stable use and safe storage when being transferred in trucks or other large vehicles. This durable case is resistant to shock and takes on a standard design that is similar with professional recording equipment. It can withstand frequent handling around live stages and loading/unloading at outdoor locations. Certification: All units are built in accordance to NFPA 70 (National Electric Code) and NRTL certified to UL 1640. All equipment is NEMA 3R rated for indoor and outdoor use and provide a degree of protection against dirt, water, and ice. NEMA 4 and NEMA 4X equipment can be equipped upon request. Applications: This power distribution system is ideal for indoor or outdoor use and applications including but not limited to, movie sets, entertainment, television sets, stage lighting, studio recording, sporting events, rigging, audio and video production, concerts and motion picture production. These power distribution systems are popularly used in applications where external power sources are often necessary. We also offer class rated transformers for use within explosion proof and hazardous location environments. Custom Built Systems Available: Larson Electronics is a manufacturer and we can build portable power distribution systems to your specifications. Although we carry several models of portable power distribution systems in stock, we can deliver custom ordered units almost as quickly as our prebuilt units. If this model does not meet your needs, please contact us at 1-800-369-6671 or to discuss your specific requirements. |
