150A Rack Mount Power Distribution - 208Y/120V Wye Input - (4) Receptacles - Camlock Input - 7RU ATA
150A Rack Mount Power Distribution - 208Y/120V Wye Input - (4) Receptacles - Camlock Input - 7RU ATA
| MPD-SC07-CLP5-BM-YT0YT-HZ-2.L35-2.N09-R1 Rack Mount Power Distribution | Ratings |
| Line-In: (1 Set) 16 Series Female Camlocks w/ Covers [Green, Brown, Orange, and Yellow] | NRTL Certified for United States & Canada |
| Line-Out: - | NRTL Listed to UL 508A |
| Primary Voltage: 208Y/120 V Wye | NRTL Listed to UL 1640 |
| System Amps: 150A | NRTL Listed to CSA C22.2 No. 14 |
| Primary Panel: 208Y/120V 3PH 60A MCB N3R | Max Primary OCP: 60 A @ 208 V |
| Primary Breakers: (2) 20 A 3P MCB [250 V]; (2) 20 A 1P MCB [125 V] | |
| Primary Receptacles: (2) L21-20FO Nema Twist-Lock [125/250 V]; (2) 5-20R Nema Dplx [125 V] | |
| Primary Protection: MCB Circuit Breakers | Special Orders - Requirements |
| Power Monitoring: Power Indicator Lights (Input Camlocks) | |
| Form Factor: Rack mount ATA Case, Shock Mount 7RU ATA Cube w/ Handles & Rubber Feet | |
| Frame Materials: - | |
| Dimensions: - | |
| Weight: - | |

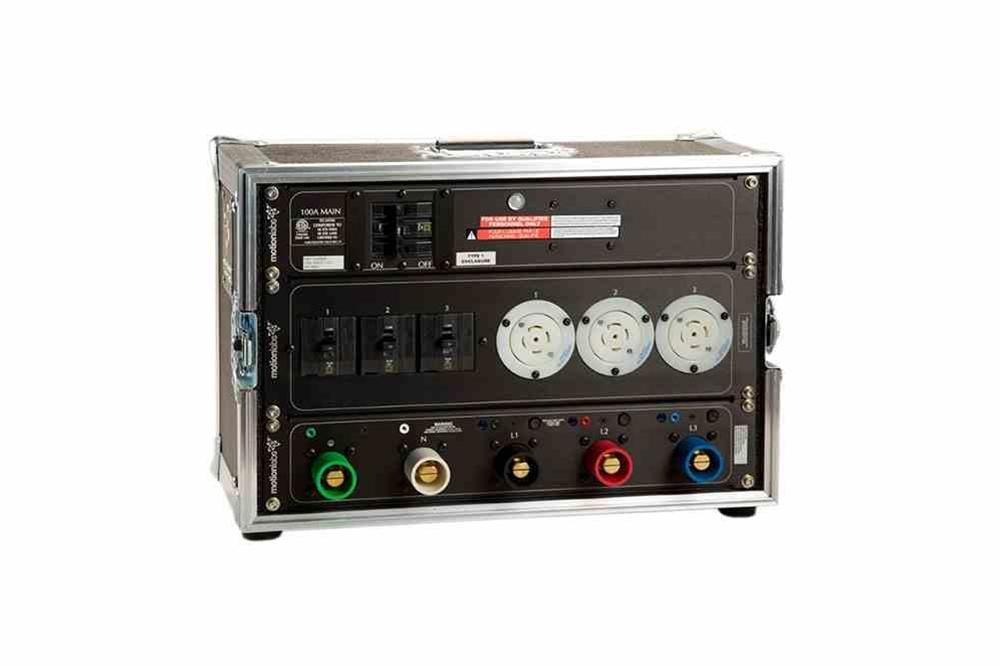

| Larson Electronics manufactures a wide variety of custom power distribution systems. The pictures displayed for this unit are a general representation of form factor and may not accurately represent this exact configuration in every detail due to being custom builds. The specifics for this configuration are listed in the specification table and one-line diagram. | *All grounding shall comply with state and local codes and meet the minimum requirements of the National Electronic Code section 250* |
| This unit is Made In USA - Manufactured in Texas The MPD-SC07-CLP5-BM-YT0YT-HZ-2.L35-2.N09-R1 from Larson Electronics is a Rack Mount Power Distribution that is a portable power solution designed for stages, movie sets, concerts, and entertainment sites. This mobile power distribution unit provides operators the ability to safely tap into and distribute 208Y/120 V Wye power from a variety of sources, including generators and direct grid power, found in motion picture production. *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO POWER DISTRIBUTION PANELS, TRANSFORMERS, OR SUBSTATIONS* Portable Power Distribution Purpose and Use The MPD-SC07-CLP5-BM-YT0YT-HZ-2.L35-2.N09-R1 portable power distribution system gives operators the ability to power their 208Y/120 V Wye volt equipment from a single system within live recording and entertainment venues. From equipment testing to live recording sets, these portable stations make power at busy production sites readily available and safe to use. On the primary side, operators connect 208Y/120 V Wye line-in power using one set of 16 series female camlock inputs with covers (green, brown, orange, and yellow). The secondary side contains two NEMA L21-20FO twist lock receptacles and two NEMA 5-20R duplex receptacles. Operation: One set of 16 series female camlock inputs with covers (green, brown, orange, and yellow) brings 208Y/120 V Wye into the primary side of the 150-amp mobile power distribution unit. The secondary side is equipped with two 20-amp 3-pole 250 V breakers protecting two 20-amp 125/250V L21-20FO receptacles and two 20-amp 1-pole 125 V breakers protecting two 20-amp NEMA 5-20R duplex receptacles. Protective Construction: All components are secured inside a compact rack mount ATA case. This black case features side-located handles for mobility around the production or recording site. This durable case is resistant to shock and takes on a standard design that is similar with professional recording equipment. It can withstand frequent handling around live stages and loading/unloading at outdoor locations. Certification: All units are built in accordance to NFPA 70 (National Electric Code) and certified to UL 1640. All equipment is NEMA 3R rated for indoor and outdoor use and provide a degree of protection against dirt, water, and ice. NEMA 4 and NEMA 4X equipment can be equipped upon request. Applications: This power distribution system is ideal for indoor or outdoor use and applications including but not limited to, movie sets, entertainment, television sets, stage lighting, studio recording, sporting events, rigging, audio and video production, concerts and motion picture production. These power distribution systems are popularly used in applications where external power sources are often necessary. We also offer class rated transformers for use within explosion proof and hazardous location environments. Custom Built Systems Available: Larson Electronics is a manufacturer and we can build portable power distribution systems to your specifications. Although we carry several models of portable power distribution systems in stock, we can deliver custom ordered units almost as quickly as our prebuilt units. If this model does not meet your needs, please contact us at 1-800-369-6671 or to discuss your specific requirements. |
