Explosion Proof Portable Spider Box - 120/208V 1-phase - (6) Receptacles, 30' SOOW Cord w/ EXP Plug - Powder Coated Spider Cart

LARSON ELECTRONICSSKU: PL3-MPD-XD2-82.30AB-ST0ST-ZC-6.X05-M1
filler

Price:
Sale price$43,642.00

Description

Specifications / Additional Information
MPD-XD2-82.30AB-ST0ST-ZC-6.X05-M1 Explosion Proof Power Distribution Ratings
Listing: NRTL Listed for United States and Canada Max OCP Primary: 30A @ 208V
Line-In Cord: 30' 10/4 AWG SOOW Cord Max Secondary Output: -
Line-in Cord Cap: EPP-30A C1D1 Male Plug [125/250V] Class I, Division 1
Primary Voltage: 120/208V AC NRTL Certified to UL 1640 Portable Power-Distribution Equipment
Primary Phase: 1-phase NEMA 3R Indoor / Outdoor Use
Primary Frequency: 60 Hz Made in the USA
Primary Disconnect: -
Primary Panel: 120/208V 1PH 30A MLO C1D1
Primary Breakers: (6) 20A 1P MCB [250V]
Primary Receptacles: (6) EPO-20A C1D1 Receptacle [125V]
Primary Protection: MCB Circuit Breakers
Transformer: -
Secondary Voltage: -
Secondary Phase: -
Secondary Frequency: -
Secondary Disconnect: -
Secondary Panel: -
Secondary Breakers: -
Secondary Receptacles: -
Secondary Protection: - Special Orders/Requirements
Internal Wiring Type: -
Form Factor: Powder Coated MGL Spider Cart w/ Run Flat Tires
Frame Materials: Non-sparking Aluminum
Dimensions: 30-H x 14-D x 24- W
Weight: -

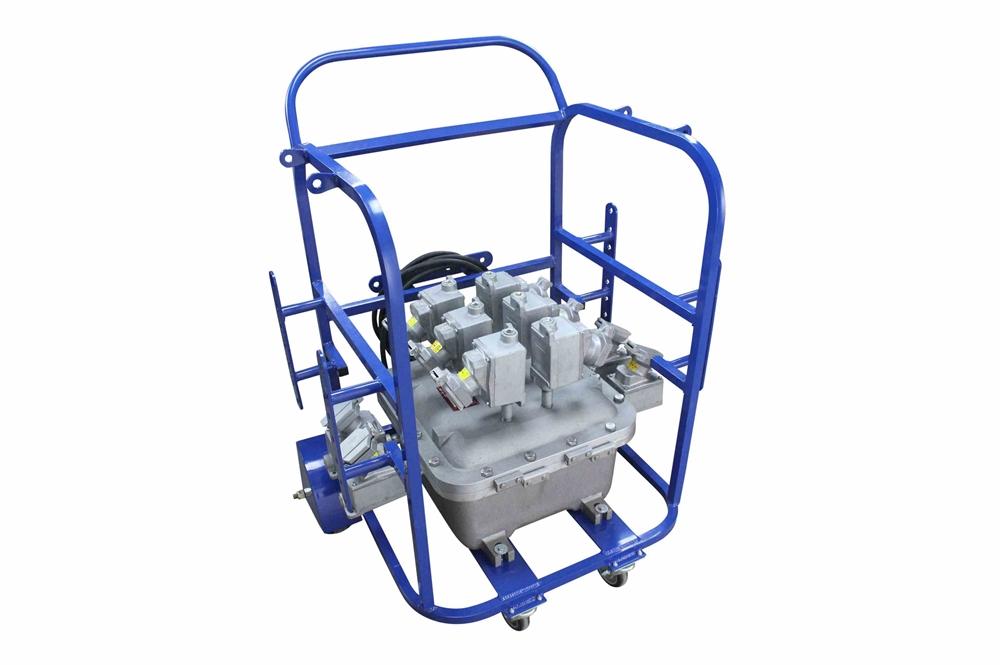

Larson Electronics manufactures a wide variety of custom power distribution systems. The pictures displayed for this unit are a general representation of form factor and may not accurately represent this exact configuration in every detail due to being custom builds. The specifics for this configuration are listed in the specification table and one-line diagram. *All grounding shall comply with state and local codes and meet the minimum requirements of the National Electronic Code section 250*
' Product Overview '
Made in Texas The Larson Electronics MPD-XD2-82.30AB-ST0ST-ZC-6.X05-M1 Explosion Proof Portable Spider Box is designed for Class I, Division 1 rated combustible environments. This mobile unit provides single-phase 120/208V power to six explosion proof receptacles. A powder coated non-sparking aluminum cart facilitates transportation around the hazardous work area. *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO POWER DISTRIBUTION PANELS, TRANSFORMERS, OR SUBSTATIONS* Portable Power Distribution Purpose and Use: The MPD-XD2-82.30AB-ST0ST-ZC-6.X05-M1 portable explosion proof power distribution system is designed to provide operators using equipment in hazardous locations with limited power receptacles within the area. This compact power distribution system is designed for portability and convenience as well as durability and is mounted to a wheeled, non-sparking aluminum frame for added protection.
Operation: A 30' 10/4 AWG SOOW cord with a 30-amp Class I, Division 1 125/250V male cord cap brings single-phase 120/208V power to the primary side of the system, which contains a 30-amp Class I, Division 1 single-phase 120/208V main lug only panel. The primary panel is equipped with six 20-amp 1-pole 250V main circuit breakers protecting six 20-amp Class I, Division 1 125V receptacles. Protective Construction: The class rated power distribution assembly is mounted onto a rugged cart style framed constructed of non-sparking aluminum and powder coated for added corrosion resistance. Mobility is provided by rotating front casters and run flat rear tires, allowing operators to wheel this temporary power station across job sites within the hazardous environment. Certification: All units are built in accordance to NFPA 70 (National Electric Code) and NRTL certified to UL 1640. All equipment is NEMA 3R rated for indoor and outdoor use and provide a degree of protection against dirt, water, and ice. NEMA 4 and NEMA 4X equipment can be equipped upon request. Applications: This C1D1 power distribution system is NEMA 3R rated and ideal for indoor/outdoor use and applications including but not limited to; construction sites, plant maintenance, plant turnarounds, hazardous location operations, shows, exhibits, and shipyard operations. These temporary power distribution systems are popularly used for HAZLOC applications where external power sources are often necessary and work well in combination with explosion proof lights and equipment. Larson Electronics is a manufacturer and as such can build portable transformer systems to your specifications. Although we carry several models of power distribution transformers, we can deliver custom ordered units almost as quickly as our prebuilt units. If this model does not meet your needs, please contact us at 1-800-369-6671 or to discuss your specific requirements.
