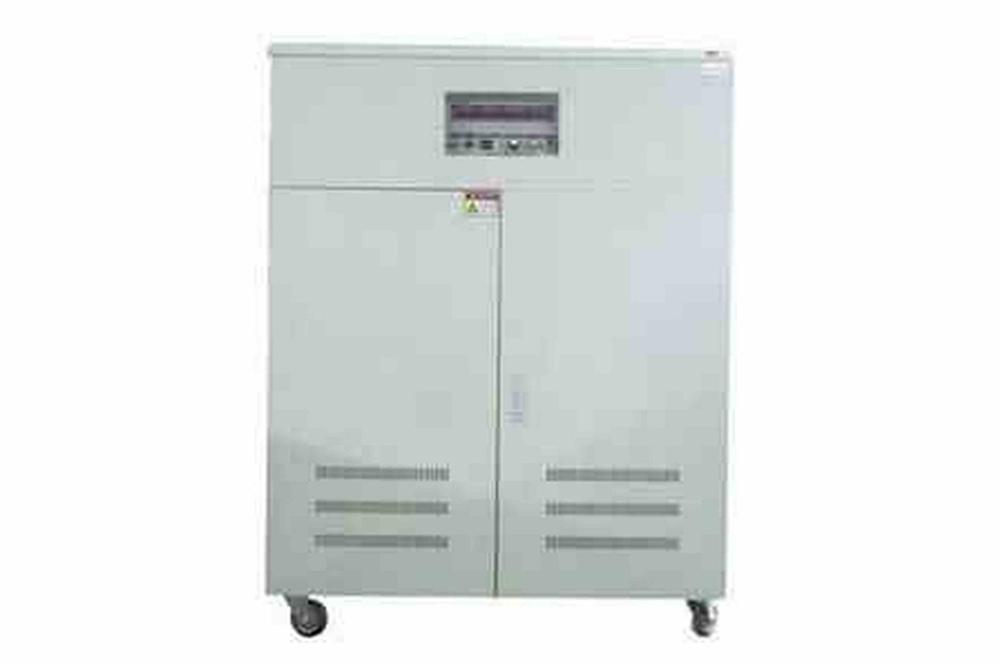

50 KVA Voltage Stabilizer - 240V 1PH Input to 120/240V 1PH Output - 50/60Hz - Mobile w/ Wheels

LARSON ELECTRONICSSKU: PL3-MT-LAVR-1P-240V-50KVA-120.240V-N1
filler

Price:
Sale price$30,110.00

Description

Specifications / Additional Information
MT-LAVR-1P-240V-50KVA-120.240V-N1 Industrial Single-phase Automatic Voltage Stabilizer Features/Ratings
Unit Type: Automatic Voltage Stabilizer LCD Display
Dimensions: 24.8" x 16.92" x 40.15"
Weight: 386 lbs
Input Voltage: 240V 1PH +/- 3% - (L+L+N)
Input Frequency: 50/60 Hz
Capacity: 50 KVA
Output Voltage: 120/240V 1PH +/- 3%
Output Frequency: 50/60 Hz
Adjust Time: < 1 Second (Against 10% Input Voltage Deviation)
Protection (Over Voltage): < 246 ± 4V
Delay: 5 Seconds
Load Factor: 0.8
Efficiency: ≥ 90%
Dielectric Strength: 1500V/min
Display: LCD
Ambient Temperature: -10°C ~ +40°C
Temperature Rise: < 60°C
Temperature Protection: 110℃ ± 10℃
Insulation Resistance: ≥ 5MΩ
Relative Humidity: < 95%
Mounting: Mobile Cart w/ Wheels
Color: Tan
' Product Overview '
The Larson Electronics MT-LAVR-1P-240V-50KVA-120.240V-N1 Industrial Automatic Voltage Stabilizer is designed for industrial and commercial locations. The 50 KVA power device comes with an input voltage/frequency of single-phase 240V, 50/60 Hz and an output voltage/frequency of single-phase 120/240V, 50/60 Hz. This unit is mobile via four wheels at the bottom of the enclosure. This 50 KVA unit accepts single-phase 240V AC 50/60Hz on the input side and provides single-phase 120/240V AC 50/60Hz on the output side. There is a delay of 5 seconds when starting the device and an adjust time of 1 second. This power unit is equipped with several protective features, including overload, short circuit and over temperature. An LCD display located at the front of the voltage stabilizer provides the status of protective features and various real-time indicators, such as input/output voltage, fault indication, delay time and more. The enclosure that houses the voltage stabilizer features vents to promote active cooling during use. Mounting: The MT-LAVR-1P-240V-50KVA-120.240V-N1 is secured inside a mobile enclosure with wheels for seamless mobility around the work site. Applications: Industrial facilities, laboratories, air compressor testing, power supply testing, motor equipment testing, quality assurance, lighting systems and more.
