75 kVA Pad Mount Transformer - 13800V Delta Primary - 208Y/120 Wye Secondary -Oil Cooled - Stainless

LARSON ELECTRONICSSKU: PL3-MT-PML-3P-13800D-75KVA-208Y.120-N3R-SS
filler

Price:
Sale price$61,768.00

Description

Specifications / Additional Information
MT-PML-3P-13800D-75KVA-208Y.120-N3R-SS Pad Mount Transformer Ratings
Phase: Three Phase Listed for United States and Canada
Frequency: 60 Hz KNAN Cooling
kVA: 75 IP10 Rated
Primary Voltage: 13800 V Delta Envirotemp FR3 Oil Filled
Primary kV Class: 15kV Dead Front
Primary Connection: Delta Radial Feed
Primary BIL: 95 kV
Primary FCAN: 2 x 2.5%
Primary FCBN: 2 x 2.5%
Tap Changer: 100 Amp 5-Position Tap Changer
High Voltage Bushings: (3) 200 A Cooper Bushing Wells w/ Removable Studs
Inserts: (3) 15 kV, 95 kV BIL Cooper Load-Break Inserts
Load-Breaking Switch: None
Arresters: None
Overcurrent Protection: None
Secondary Voltage: 208Y/120 V Wye
Secondary Connection: Wye
Secondary BIL: 30 kV
Low Voltage kV Class: 1.2 kV
Low Voltage Bushings: (4) 5/8" Copper Stud /w 4-Hole Screw-On Spade Bushings
IEEE K-Dimension: Radial Feed per IEEE C57.12.34-2015 Figure 10 Minimum Dimensions (Without Bails)
Notifications: (5) Danger High Voltage Decal
IR Windows: No Window Required
Gauge Location: Inside Main Cabinet on Front Plate
Gauges & Fittings: Liquid Level Gauge
Gauges & Fittings: Thermometer - Dial Type
Gauges & Fittings: Pressure/Vacuum Gauge
Gauges & Fittings: Drain Plug in LV Compartment
Gauges & Fittings: Pressure Relief Device, 50 SCFM
Gauges & Fittings: Schrader Valve
Tank Accessories: (3) IEEE Standard One-Hole Ground Pads
Tank Accessories: Nitrogen Blanket
Winding Material: Aluminum
Efficiency: DOE 2016
Cooling Class: KNAN
Insulating Fluid: Envirotemp FR3 Oil
Fluid Volume: 96 Gallons
Fluid Weight: 736 lb
Elevation: Designed for Operation at 1000M (3300`) Above Sea Level
Temperature Rise: 65°C
Impedance (Std): 2.93%
Sound Level: NEMA TR1 Standard
Cabinet: 20" Deep Cabinet
Construction: 100% Stainless Steel
Stainless Steel Type: 304L Stainless Steel
Corrosion-Proof Hardware: Corrosion-Proof Cover Hardware
Corrosion-Proof Hardware: Corrosion-Proof Bushing Clamps and Hardware
Cover: Bolted Cover w/ Handhole
Cabinet Hardware: Penta-Head Cabinet Door Bolts
Finish: Munsell Green (Munsell 7GY 3.29/1.5) Topcoat
Dimensions: -
Weight: 2191 lb
Mounting: Pad Mount
' Product Overview '

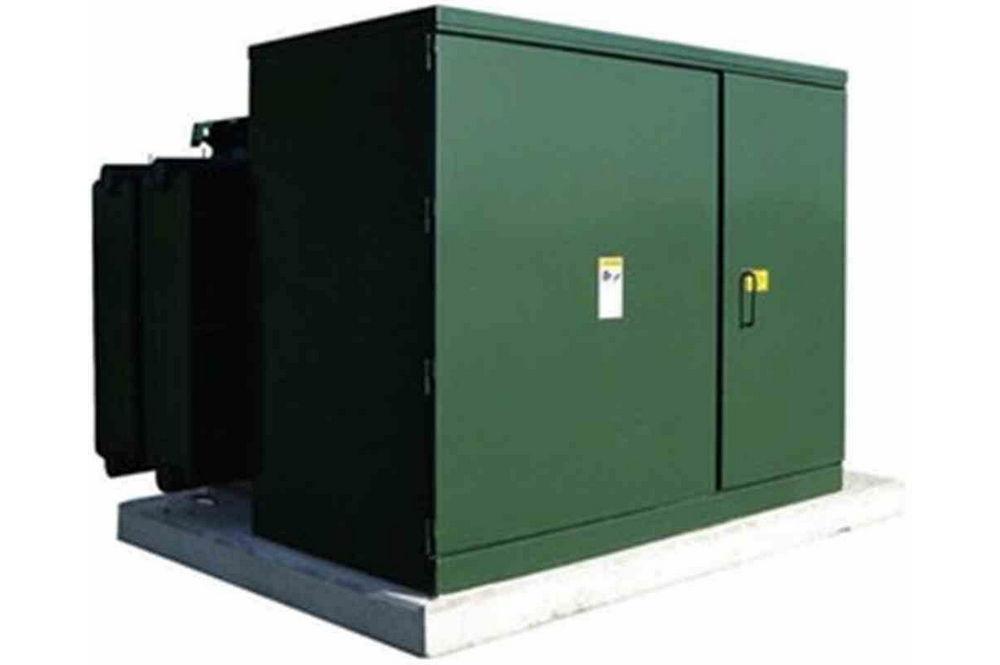

The MT-PML-3P-13800D-75KVA-208Y.120-N3R-SS 13800 V Delta 3 Phase Energy Efficient Pad Mount Dead Front Radial Feed Transformer from Larson Electronics is powerful, reliable and designed with the environment in mind. Suitable for both indoor and outdoor applications, the MT-PML-3P-13800D-75KVA-208Y.120-N3R-SS provides increased reliablity and protection against critical equipment failures. The lower operating costs, lower heat emissions and lower cost of ownership make this transformer ideal for a wide range of applications and businesses. *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO POWER DISTRIBUTION PANELS, TRANSFORMERS, OR SUBSTATIONS* Transformer Features: With a transformer rating of 75 kVA, the MT-PML-3P-13800D-75KVA-208Y.120-N3R-SS transformer is a three phase unit with a primary voltage of 13800 V Delta. It also provides a secondary voltage of 208Y/120 V Wye. Featuring robust construction, this unit`s cores are manufactured with non-aging, cold-rolled silicon steel laminations using state of the art technology. This unit boasts a low cost of ownership and is highly energy efficient. Lower heat emissions mean less cooling is needed as well. The NEMA Type 1 stainless steel enclosure makes the unit suitable for indoor applications and it can be pad mounted. The unit also features Envirotemp FR3 mineral oil cooling and a 65°C temperature rise and is rated IP10. The MT-PML-3P-13800D-75KVA-208Y.120-N3R-SS is designed so that no excess oil heating occurs from unbalanced loads or phase loss on the primary side. Benefits: The MT-PML-3P-13800D-75KVA-208Y.120-N3R-SS pad mount dead front radial feed transformer offers many benefits to the consumer. Precision cut aluminum transformer winding material help to improve performance. The close tolerances used during manufacturing also eliminates burrs which hinder performance. Each core is specially coated to prevent the ingress of moisture and are electrically balanced to minimize axial forces during short circuit situations. This transformer provides owners with significant energy savings as well as offering environmental benefits. Higher efficiency not only extends the life of the transformer, but also turn into cost savings for owners in the form of lower energy bills and decreased cost of ownership. Integrated floor and wall mounting brackets make installation fast and easy and the offset outward facing floor installation holes allow for easy power tool access. Applications: General purposes. Larson Electronics is a manufacturer and as such can build stationary and portable transformer systems to your specifications. Although we carry several models of power distribution transformer systems, we can deliver custom ordered units almost as quickly as our prebuilt units. If this model does not meet your needs, please contact us at 1-800-369-6671 or to discuss your specific requirements.
