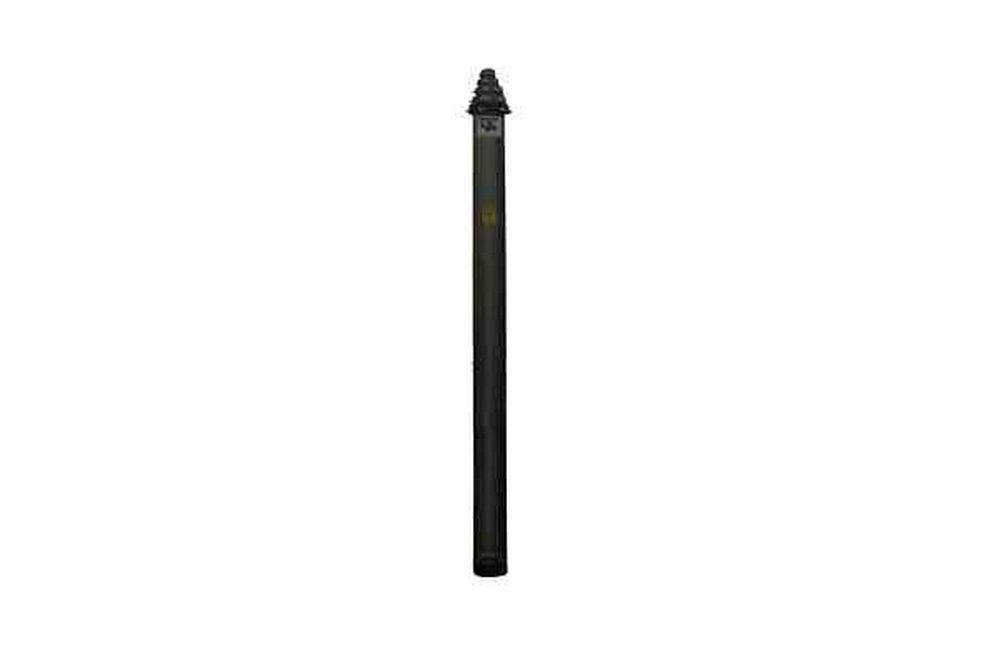

Pneumatic Light Mast w/ 6x CAT5e Internal Cable - Extends to 30 Feet - Air Powered Telescoping Boom

LARSON ELECTRONICSSKU: PL3-PLM-30-CAT5e-NAC
filler

Price:
Sale price$18,650.00

Description

Specifications / Additional Information
PLM-30-CAT5e-NAC Pneumatic Light Mast Quick Summary
Length: 8.25 feet - 30 feet 8.25-30 Ft Light Mast
Weight: 320 lbs Aluminum Construction
Capacity: 150 lbs Pneumatic Operation
Materials: Heat Treated 6063B/T5 Aluminum 1/3 HP Electric Air Compressor
Operation: Pneumatic - Electric Air Compressor
Sections: (5) 6` sections
Mounting: 1/2" thick, 12 inch Square, Four Hole Bracket
Shipping: Common Freight
Shipping Weight: 350 lbs
Section Lengths: 88.5"L x 5.5"D Base section, 86.6"L x 4.65"D, 85.4"L x 3.85"D, 84.25"L x 3.23"D, 83.1"L x 2.6"D Top section
Options: Length- Mounting-Fixtures
Wiring: (6) CAT5ecables and (1) RRV2x1.0mm cable - 12" whip top and bottom
' Product Overview '
The Larson Electronics PLM-30-CAT5e-NAC Pneumatic Light Mast with internal CAT5e cable provides a safe and effective way for operators to quickly deploy security cameras and other electrical equipment to elevations up to thirty feet. *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO LIGHT MASTS OR LIGHT TOWERS* Larson Electronicss’ telescoping pneumatic light tower mast is designed to allow operators to quickly and safely deploy lighting and other electrical equipment in locations where this equipment must be elevated to heights up to 30 feet for effective application. This light boom can be extended to 30 feet for maximum area coverage and collapsed to 8.25 feet for closer more intense illumination. The tower is constructed of high strength, heat treated aluminum tubing for strength and durability. This tower is comprised of five sections, and includes a locking top mounting plate for easy removal of lights or cameras. The mast is elevated using an air compressor, sold separately. An air release valve located at the base of this pneumatic mast allows operators to lower the tower. All wiring in internal, meaning no loose wiring when collapsed. The PLM-30-CAT5e-NAC includes an internal wiring harness with (6) CAT5e cables and (1) RRV2x1.0mm cable with 12 inches extending from both ends of the tower.

These light masts are typically mounted to trailers or other stable surfaces via a 12 inch square, ½ inch thick mounting base-plate which has been drilled to accept four mounting bolts (3/4 inch). This light tower weighs 250 lbs, and can easily support and lift 150+ lbs fixtures. When fully extended, this light tower can withstand winds up to 70 mph without guys. The entire tower assembly is shipped via common freight carrier and when shipped measures approximately 12 feet long, 4 feet wide, 3 feet tall and weighs 350 lbs. Larson Electronics can custom tailor these units to the customer’s requirements with longer sections and larger mounting plates.   Suggested Applications: Lighting and security camera deployment. We can equip this mast with 1000W or 1500W Metal Halide lights or a wide variety of high powered LED lights with comparable power, including the , or .
