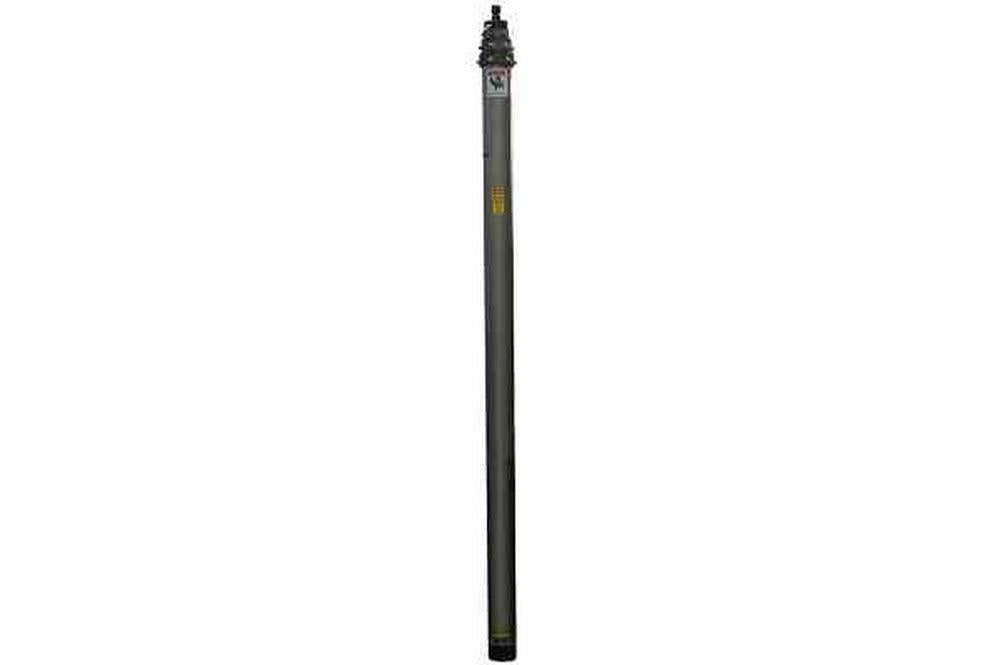

Pneumatic Light Mast - Extends to 30 Feet - Electric Air Compressor - Rotating Base
Pneumatic Light Mast - Extends to 30 Feet - Electric Air Compressor - Rotating Base
| PLM-30-R Rotating Pneumatic Light Mast | Quick Summary |
| Length: 8.25 feet -Â 30 feet | 8.25-30 Ft Light Mast |
| Weight: 350 lbs | Aluminum Construction |
| Capacity: 150 lbs | Pneumatic Operation |
| Materials: Aluminum | 1/3 HP Electric Air Compressor |
| Operation: Pneumatic - Electric Air Compressor | |
| Mounting: 1/2" thick, 12 inch Square, Four Hole Bracket | |
| Shipping: Common Freight | |
| Shipping Weight: 400 lbs | Phone:Â 1-214-616-6180 |
| Options: Length- Mounting-Fixtures/ Call Us for Special Requirements | Toll Free:Â 1-800-369-6671 |
| Section Lengths: 88.5"L x 5.5"D Base section, 86.6"L x 4.65"D, 85.4"L x 3.85"D, 84.25"L x 3.23"D, 83.1"L x 2.6"D Top section | Fax:Â 1-903-498-3364 |
| E-mail:Â |
| The Larson Electronics PLM-30-R Pneumatic Light Mast provides a safe and effective way for operators to quickly deploy lights, security cameras and other equipment to elevations up to eighteen feet. *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO LIGHT MASTS OR LIGHT TOWERS* Larson Electronics’ telescoping pneumatic light tower mast is designed to allow operators to quickly and safely deploy lighting and other electrical equipment in locations where this equipment must be elevated to heights up to 30 feet for effective application. This light boom can be extended to 30 feet for maximum area coverage and collapsed to 8.25 feet for closer more intense illumination. The tower is constructed of high strength, heat treated aluminum tubing for strength and durability. This tower is comprised of five sections, and includes a locking top mounting plate for easy removal of lights or cameras. The mast is elevated using an included 250 watt 220 Volt AC 50/60hz, 1/3 horsepower air compressor. An air release valve located at the base of this pneumatic mast allows operators to lower the tower. All wiring in internal, meaning no loose wiring when collapsed. The PML-30-R includes a six-wire internal wiring harness with 12 inches extending from both ends of the tower.  | |||||
|
|
|||||
| These light masts feature a 360 degree rotation with a ring style ball bearing base. Operators can manually rotate the tower and lock it into position via the saftey lock on the base. This light tower weighs 350 lbs, and can easily support and lift 150 lbs fixtures. When fully extended, this light tower can withstand winds up to 70 mph without guys. The entire tower assembly is shipped via common freight carrier and when shipped measures approximately 12 feet long, 4 feet wide, 3 feet tall and weighs 350 lbs. Larson Electronics can custom tailor these units to the customer’s requirements with longer sections and larger mounting plates.  Suggested Applications: Lighting and security camera deployment. We can equip this mast with 1000W or 1500W Metal Halide lights or a wide variety of high powered LED lights with comparable power, including the , or . |
