Pneumatic Light Mast - Extends to 7.2 Feet - Air Powered Mini Telescoping Boom

LARSON ELECTRONICSSKU: PL3-PLM-7-NAC
filler

Price:
Sale price$1,636.00

Description

Specifications / Additional Information
PLM-7-NAC Pneumatic Light Mast Quick Summary
Length: 3.35 feet - 7.2 feet 3.35-7.2 Ft Light Mast
Weight: 11 lbs Aluminum Construction
Capacity: 30 lbs Pneumatic Operation
Materials: Aluminum
Sections: (3) 2.8` sections
Diameter: 2-2.2", 1.3-1.7" - .8"-1.1"
Operation: Pneumatic - Electric Air Compressor
Mounting: Square, Four Hole Bracket
Shipping: Common Freight
Shipping Weight: 35 lbs
Options: Length- Mounting-Fixtures/ Call Us for Special Requirements

' Product Overview '

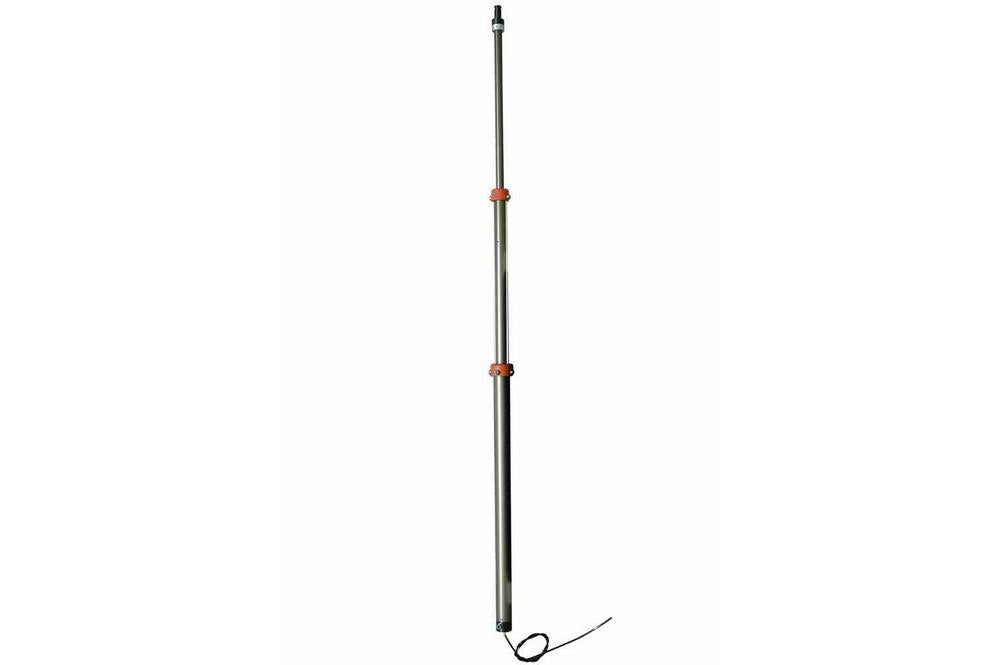

The Larson Electronics PLM-7-NAC Pneumatic Light Mast provides a safe and effective way for operators to quickly deploy lights, security cameras and other equipment to elevations up to 7.2 feet. This rugged telescoping pneumatic light tower mast is designed to allow operators to quickly and safely deploy lighting and other electrical equipment in locations where the equipment must be elevated to heights up to 7.2 feet for effective application. This light boom can be extended to 7.2 feet for maximum area coverage and collapsed to 3.35 feet to bring equipment closer to the target area as well as for transport and storage. The tower is constructed of high strength, heat treated aluminum tubing for strength and durability. This tower is comprised of three sections, and includes a locking top mounting plate for easy removal of lights or cameras. The mast is elevated using an air compressor, sold separately. An air release valve located at the base of this pneumatic mast allows operators to lower the tower. The 16/3 AWG wiring is internally routed, meaning no loose wiring when the tower is collapsed and no exposed wiring to fray or become damaged. The PML-7-NAC includes a three-wire internal wiring harness with 12 inches extending from both ends of the tower to allow easy installation and connection.

Click Photo to Enlarge
These light masts are typically mounted to trailers or other stable surfaces via square mounting base-plate which has been predrilled to accept four mounting bolts. This light tower weighs 11 pounds, and can easily support and lift 30 pound fixtures. The entire tower assembly is shipped via common freight carrier and when shipped measures approximately 4 feet long, 2 feet wide, 2 feet tall and weighs 35 lbs. Larson Electronics is a manufacturer and as such, can custom tailor these units to the customer’s requirements with longer sections and larger mounting plates.   Suggested Applications: Lighting and security camera deployment. We can also equip this mast with 1000W or 1500W Metal Halide lights or a wide variety of high powered LED lights with comparable power, including the , or .
