Remote Controlled Pan Tilt Base - Rotates and Tilts with Mounting Plate - White Housing - 60' Harness
Remote Controlled Pan Tilt Base - Rotates and Tilts with Mounting Plate - White Housing - 60' Harness
| PTB-1-60C-WHT Pat/Tilt Base | Â |
| Dimensions: 8"L x 11-W x 10"H | |
| Weight: 20 lbs | |
| Voltage: 12V or 24V DC | |
| Rotation: 0° to 355° | |
| Tilt: -60° to +30° | |
| Pan Speed: 7.2°/Sec | |
| Tilt Speed: 3.6°/Sec | |
| Pan Electrical Power: 6 Watts | |
| Tilt Electrical Power: 15 Watts | |
| Maximum Load: 100 lbs | |
| Ambient Operating Temp Range: -25°C to +50°C | |
| Ingress Protection: IP54 | |
| Housing Material: Die-Cast Aluminum | |
| Finish: Powder Coated - White | |
| Mounting: 4-Corner Thru-Hole | Toll Free:Â 1-800-369-6671 |
| Remote: Hard Wired & Wireless (Both Included) | Intl:Â 1-903-270-1187 |
| Wiring:Â 60` Cable w/ Inline Remote - (2) 1` Pigtails | E-mail:Â |
|

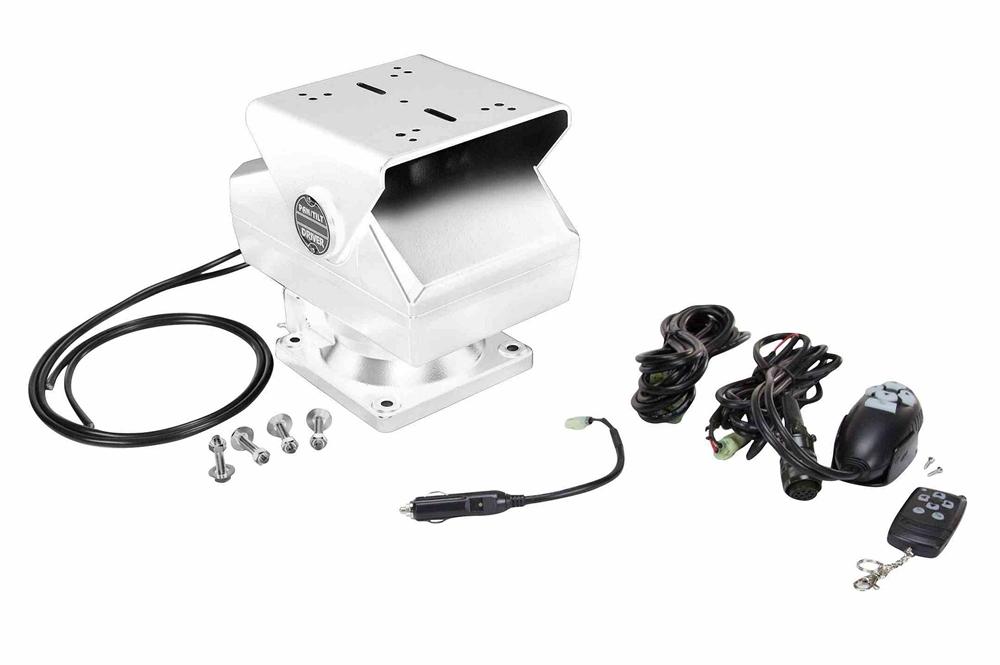

The PTB-1-60C-WHT from Larson Electronicis is an Industrial Grade Pan Tilt Base that is designed to provide wireless and hard wired remote control of lights and equipment. This remote control unit allows operators to rotate through from 0° to 355°, tilt from -60° to +30°, and mount equipment weighing up to 100lbs. The PTB-1-60C-WHT features an attractive white housing.
The PTB-1-60C-WHTÂ pan/tilt base provides operators with a remote way to control lights, cameras, and other equipment mounted to the base. An 8" by 10" mounting plate allows operators to mount a variety of user provided equipment to the top of the pan/tilt base, including LED and HID lights, cameras, and antennas. Wired and wireless remote controls are provided with this unit, providing flexibility in the field.
This unit is constructed of die-cast aluminum and powder coated with a white finish for added corrosion resistance. The internal gears of the PTB-1-60C-WHTÂ provide no slip and no "slop" during operation, and the pan/tilt base holds its position after movement has stopped. Mounting is provided via four-corner thru-holes. This pan/tilt base will keep its position during storms and strong winds and holds up to vibrations in vehicle and offshore applications.
|
|
