80W Remote LED Spotlight - 120-277V AC & 127-431V DC - Hard Wired/Wireless Remotes - Permanent Mount

LARSON ELECTRONICSSKU: PL3-RCL360-LE-LED-80W-R2-1227
filler

Price:
Sale price$16,366.00

Description

Specifications / Additional Information
RCL360-LE-LED-80W-R2-1227 LED Remote Control Light Ratings/Approvals
Lamp Technology: LED 80 Watts, 7,400 Lumens
Dimensions: 18"W x 18" Depth x 24"H Hard Wired and Wireless Remote Controls Included
Weight: 25 lbs Meets Marine Standards for Fresh / Saltwater Use
Voltage: 120-277V AC or 127-431V DC UV and Weatherproof
Total Watts: 80 Watts 120-277V AC or 127-431V DC Operation
Total Lumens: 7,400 lms Can Be Invert Mounted on Soffit
Luminous Efficacy: - Sustains 100 MPH Wind loads
Lamp Life: 50,000+ Hours
Color Temperature: 6000K
Color Rendering Index: -
Lamp Type: -
Lamp Base: -
Replacement Lamp: -
Beam Angle: -
Lighting Configuration: Spot to Flood
Power Efficiency: -
Power Factor: -
Movement Range: 270° Tilt - 360° Rotation
Wireless Remote Control Type: Handheld w/ 433 MHz Radio Frequency
Hard Wired Remote Control Type: Joystick, Rotary Knob - Panel Mount w/ 20' Hard Wired Harness
Amps: 0.67A @ 120V, 0.33A @ 240V
Ambient Operating Temp Range: -20° C to 60°C
Housing Material: -
Mounting: Permanent 4-hole Mounting
Wiring: 15` 16/3 SOOW Cord From Spotlight to Power Supply, 1` Cord w/ General Area Cord Cap
Cord Cap Options: 5-15 Straight, 6-15 Straight, L5-15 Twist, L6-15 Twist, UK BS1363, Intl. Schuko, Pigtail
' Product Overview '

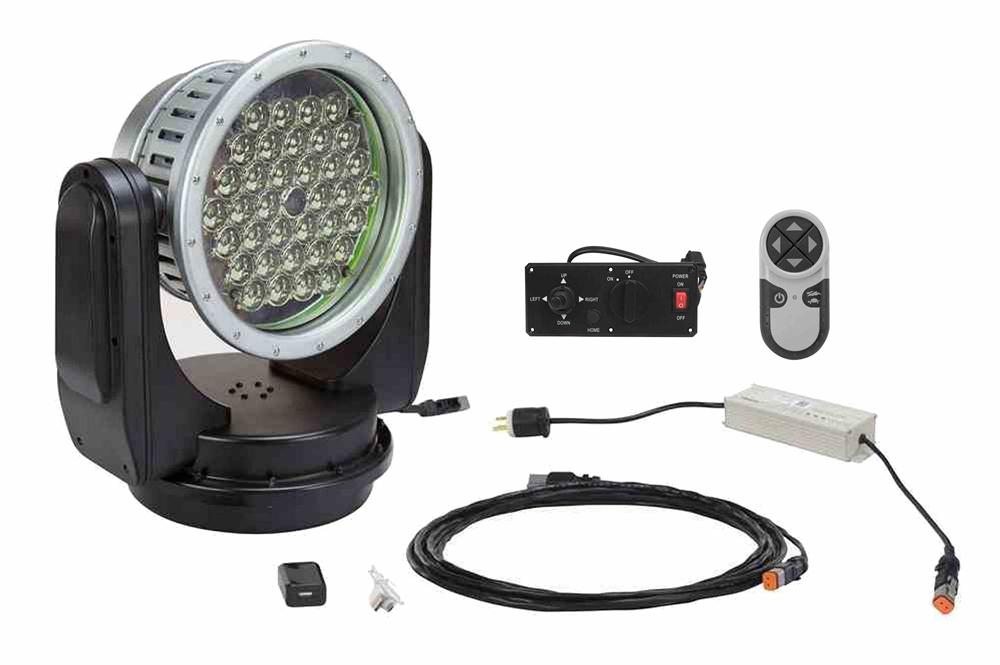

The RCL360-LE-LED-80W-R2-1227 from Larson Electronics is a Remote LED Spotlight that produces a powerful beam capable of reaching over 2,000 feet in distance. This 80-watt LED offers both hard wired and wireless remote pan and tilt control. The system operates with 120-277V AC or 127-431V DC and is capable of sustaining 100 MPH wind loads. The RCL360-LE-LED-80W-R2-1227 LED remote control light is designed for use in all weather conditions and produces 7,400 lumens of intense light output. These units feature remote control operation, allowing users to rotate the light 360 degrees with a hard stop and to adjust vertical tilt through 270 degrees. Remote operation is provided by one handheld wireless remote controller that operates on 433 MHz radio frequency and one hard wired remote controller with 20' of harness. Light Output: The lamp in this remote control spotlight is an 80-watt LED assembly which produces 7,400 lumens. This bulb is paired with a tight 6° focus spot beam optics to produce a spot beam over 2,000 feet in length. This lamp has a 6000K color temperature, giving it very good color rendering and contrasting properties and the ability to clearly and sharply illuminate objects at long distances. This beam is effective to the far end of its reach, producing enough illumination to read a book at 2,000 feet. The beam can be adjusted from spot to flood via the remote, without need to add or remove lenses from the light itself.
LED Benefits: Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation and/or transportation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current is applied, providing instant illumination with no warm up or cool down time before re-striking. Because there is no warm up period, this light can be cycled on and off with no reduction in lamp life. LED lights run at significantly cooler temperatures than traditional metal halide and high pressure sodium lights and contain no harmful gases, vapors, or mercury, making them both safer and more energy efficient. No extra energy is wasted in cooling enclosed work areas due to external heat emissions from bulb type lights, and the operator risks associated with traditional lighting methods, such as accidental burns and exposure to hazardous substances contained in the glass bulbs, are eliminated. In addition, LEDs are also safer for the environment as they are 100% recyclable, which eliminates the need for costly special disposal services required with traditional gas burning and arc type lamps. Wireless Remote Operation: This system comes with one wireless remote control that operates over a radio frequency of 433 MHz. Remote functions include on/off and 4 buttons which control up, down, left and right movement. The light will continue movement as long as the buttons are pressed. Releasing the buttons stops movement and holds the light in position. A fast and slow mode button (turtle/hare) controls the speed of the motor while the pan and tilt function buttons are depressed. Holding the button for 12 seconds in fast mode results in pinpoint accuracy at distance and is approximately 35 seconds for full rotation and 20 seconds for full range of tilt. Hard Wired Remote Operation: An include hard wired remote with a 20' harness facilitates controls at remote distances. Remote control functions include a 3-way rotary switch. Up, down, left and right movement is controlled by a 4-way joystick with auto engage 2-speed function. The light will continue movement as long as the joystick is held in position. Releasing the joystick stops movement and holds the light in position. A homing button and a programmable azimuth position feature allow operators to quickly position the light to the home position or preprogrammed position at the push of a button. A master power switch turns the unit on or off. This panel mount remote is secured to equipment panels or vehicle dash via six attachment points.
Click Photo to Enlarge
Durability: The RCL360-LE-LED-80W-R2-1227 LED is designed for hunting and demanding outdoor use with a weather resistant housing constructed of corrosion resistant aluminum and high quality thermoplastic that is heat resistant, impact resistant, UV resistant and able to withstand rugged use and abusive conditions. Remote movement of this spotlight is provided by an automotive grade internal motor, gear, and transmission assembly that is constructed of LEXAN, brass, and stainless steel to provide rust and corrosion resistance as well as long life and reliable operation. Mounting: The light is permanently mounted with 4 screws through pre-drilled holes which secure the light to the mounting surface. Power: This light operates with 120-277V AC or 127-431V DC current and draws 0.67 amps from a 120V system, making it ideal for sources of high voltage current.
Click Photos to Enlarge
5-15 Straight Blade Plug 15 Amp / 125V Rated L5-15 Twist Lock Plug 15 Amp / 125V Rated L6-15 Twist Lock Plug 15 Amp / 250V Rated
UK BS1363 Straight Blade Plug 13 Amp / 250V Rated / Internal Fuse Intl Schuko 2-Pin Plug 16 Amp / 250V Rated / Grounded Flying Leads / Pigtail Wires
Wiring/Plug: This LED light is equipped with 15 feet of 16/3 chemical and abrasion resistant SOOW cord between the spotlight and power supply and another 1 foot of cord that is fitted with an industrial grade cord cap for easy connection to common wall outlets. Plug options include standard 5-15 15 amp straight blade plug for 110V wall outlets with ground, standard 6-15 15 amp straight blade plug for 220-240V wall outlets with ground, NEMA L5-15 15 amp twist lock plug for 125V twist lock outlets, NEMA L6-15 15 amp twist lock plug for 240V twist lock outlets, British BS1363 13 amp fused 3-blade plug for United Kingdom outlets, or a two pin 16 amp rated Schuko plug with ground contact and socket for European outlets up to 250V. Alternatively, we can provide flying leads with no plug for hard wire applications or for operators who prefer to wire in user provided cord caps. Please choose pigtail option below for flying leads with no plug. This high power LED remote control light is ideal for hunting, security, boating, law enforcement, emergency services, utilities, and anywhere high power and remote control functionality are desired. This unit produces a more powerful and far reaching beam than halogen spotlights and uses less power on a 120 volt system, making it well suited to vehicles and boats where power supply is limited.
