120W All Weather Flexible Solar Panel - 12V, 36 Cells - Aluminum Backsheet, 34" Wire Leads

LARSON ELECTRONICSSKU: PL3-SP-FLX-120W-R1
filler

Price:
Sale price$708.00
 更多支付选项

Description

Specifications / Additional Information
SP-FLX-120W-R1 Solar Panel Ratings/Approvals
Panel Type: Mono-crystalline Flexible AM1.4 100MW/cm 25°C Standard Test Conditions
Panel Dimensions: 46.6" x 21.3" x 0.1"
Cells Orientation: 36 Cells
Weight: -
Watts: 120W
Voltage: 12V
Maximum System Voltage: 700V
Vm(V): 20V
Im(A): 6A
Voc(V): 22.8V
Isc(A): 6.65A
Cell Efficiency: ≥18%
Output Tolerance: +/- 3%
Junction Box Type: PPO, Black
Temperature Coefficient of Isc: +0.1%/°C
Temperature Coefficient of Voc: -0.38%/°C
Temperature Coefficient of Pm: -0.47%/°C
Temperature Coefficient of lm: +0.1%/°C
Temperature Coefficient of Vm: -0.38%/°C
Operating Temperature Range: -40°C to 85°C
Materials: Aluminum Substrate (Backsheet), PET (Encapsulation)
Mount: Surface
Wire Leads: 34"
' Product Overview '

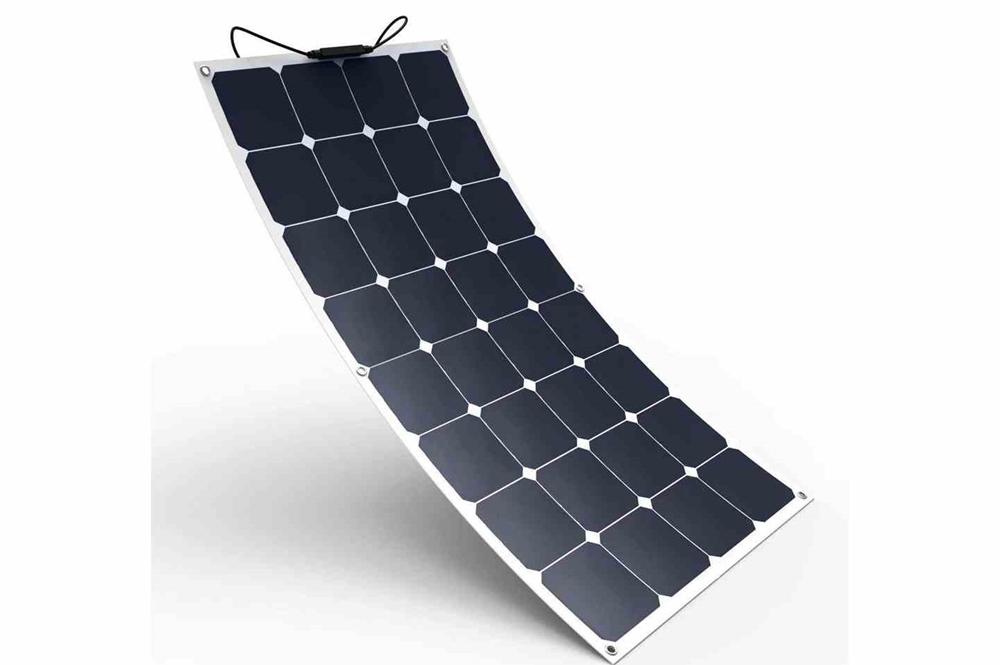

The SP-FLX-120W-R1 All Weather Flexible Solar Panel from Larson Electronics is designed for solar applications in remote and outdoor locations. The 12V unit is bendable and contains 36 mono-crystalline cells. Equipped with an aluminum substrate backsheet and PET encapsulation, the solar panel comes with 34" wire leads. The SP-FLX-120W-R1 is a crucial component in solar-powered systems. This 120-watt flexible solar panel operates on 12V (nominal) and has a 36-cell orientation. During use, the mono-crystalline unit offers ≥18% cell efficiency with +/- 3% output tolerance. The lightweight and bendable solar panel measures 46.6" x 21.3" x 0.1". This unit features an aluminum substrate backsheet and PET encapsulation. Wiring: The SP-FLX-120W-R1 comes with 34" wire leads for power connections. Operators may access a PPO, black junction box on the system. Mount: This unit can be mounted on surfaces. Applications: Solar panels, outdoor sites, remote locations, and more.
