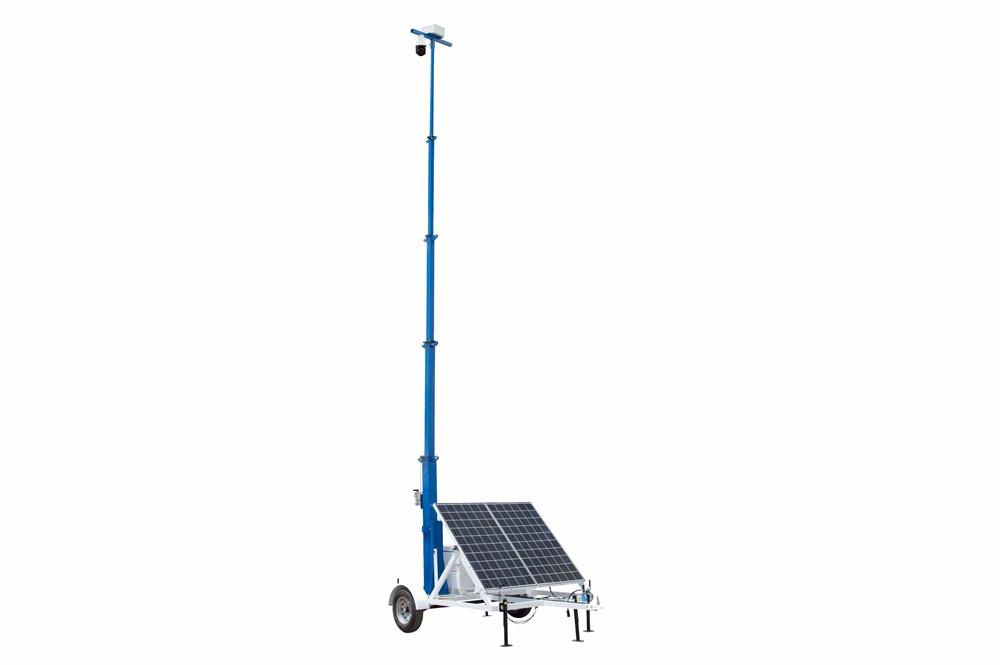

Dummy Solar Security Tower - 20' Mast - 7.5' Trailer - (1) 60W Solar Panel, (1) Battery Pack - (1) Dummy PTZ Camera

LARSON ELECTRONICSSKU: PL3-SPLT-.06K-LM20-TLR7-DC.PTZ
filler

Price:
Sale price$36,420.00

Description

Specifications / Additional Information
SPLT-.06K-LM20-TLR7-DC.PTZ Trailer Mounted Security Mast Quick Summary
Mast Specs 13.5` to 20` Light Mast
Tower Length: 13.5` to 20` Steel Construction
Mast Head Length: 44" Powder Coated Finish
Materials: Steel Removable Mast Head
Finish: Powder Coated - Gloss Blue (4) 1,000lb Outriggers
Operation: (1) 1,000lbs Hand Winch 125 mph Wind Resistance
Mast Cable: 3/16" Galvanized Aircraft Cable Manual or Optional Electric Operation
Cable Sheath: Sealtight Coiled Tubing A-Frame for mounted (1) 60 Watt Solar Panels
Fully Solar, No Fuel Needed
Equipment Specs
Panels: (1) 60 Watt Panel
Method of Deployment: Fixed Mount
System Voltage: 12 Volts
Dummy PTZ Camera: (1)
Recording Light: Blinking, Red
Battery Pack: (1) 20aH Lithium-ion
Job Box: Lockable, Included
Trailer Specs
Materials: Steel
Trailer Dimensions: 7.5`L` x 7`W trailer bed- 10.75 total length
Hitch: 2" Ball Coupler
Wiring: 7-Pin Flat
Axle: 3,500lb
Suspension: 3,500 Lb 4-Leaf Double Eye Springs
Outriggers: (4) 1,000 Manual Crack Leveling Jacks
Wheels: (2) 15" 5x4.5 Steel Rims
Tires: ST205/75/D15 H188
Weight: +-600 lbs
Shipping: Common Freight Toll Free: 1-800-369-6671
Shipping Dimensions: 8`-L x 8`-W x 12`-H Intl: 1-214-616-6180
Shipping Weight: +-600 lbs
Options: Length- Mounting-Fixtures/ Call Us for Special Requirements
' Product Overview '
Made in the USA The Larson Electronics SPLT-.06K-LM20-TLR7-DC.PTZ Dummy Security Tower provides a safe and effective way for operators to quickly deploy one dummy PTZ camera to elevations up to twenty feet. This system features a telescoping tower that folds over for easy transportation, features a rotating boom that allows for 360° of rotation, and a removable mast head for storage when not in use. The unit contains one 60-watt solar panel, one 20aH lithium-ion battery pack and a lockable job box. *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO LIGHT MASTS OR LIGHT TOWERS* The SPLT-.06K-LM20-TLR7-DC.PTZ features one dummy PTZ camera with a "recording" blinking light, which is suitable for providing a sense of added security in outdoor areas. This system is comprised of one 60-watt solar panel mounted to a stationary assembly. The panels are wired to the solar charger control box which manages the charging system. Supported by one 20aH lithium-ion battery pack, the solar panel is mounted to a frame angled at 45° to capture the intensity of the sun for optimized light intake. The entire assembly is mounted onto a 7.5` single axle trailer, allowing operators to transport this portable security tower from location to location.
Light Mast: This telescoping three stage steel light mast from Larson Electronics is designed to allow operators to quickly and safely deploy a variety of equipment in locations where it must be elevated to heights up to 20` for effective coverage. This light mast can be extended to 20` above the trailer floor for maximum area coverage, and collapsed to 13.5` for applications where a smaller footprint is required. The tower is constructed of square steel tubing and extends to its full height using an included 1,000lb rated hand winch with 3/16" galvanized steel cable. A 44" wide and 2" by 2" by 1/4" thick mounting plate is attached to the upper section of the mast which provides a strong and stable platform for the dummy camera. A half-moon shaped mounting plate on the top of the mast head provides a secure mounting platform for the NEMA 3R 12" x 12" x 6" junction box. When elevated to its full upright position, the mast can be rotated a full 360°. By loosening the T-Handle, operators can rotate the mast with easy in either direction. The mast can be positioned in one of four different positions, and locked back in place by re-tightening the T-handle. The mast itself spins freely with easy, and can typically be rotated with a single hand. The LM series of towers are powder coated with glossy blue finish for corrosion resistances and aesthetics. The LM family of telescoping towers feature a proprietary mast guidance system, which provide increased stability during high winds. Four 1,000 lbs hand crank leveling jacks are used for leveling. The jacks can be leveled by hand crank or attachment provided for power drills. These outriggers can be extended 2` out from the side of the trailer for added stability. When lowered to 13.5`, the mast can withstand winds up to 125 mph. Custom builds can be provided for higher wind speed resistance when fully raised. Component Control Center: The battery pack and solar controller are encapsulated in a NEMA 3R job box that is bolted to the trailer. Since most of these components are not rated for high heat, our component cooling system circulates air within the job box at 1400 CFM when the ambient temperature exceeds 90 degrees Fahrenheit. The job box that contains the component control system includes locks for security purposes. Trailer Assembly: The entire assembly is mounted to a 7.5` by 7`, single axle trailer via six 1/2" anchor bolts. The two wheel trailer is equipped with 3,500 lbs axle and leaf springs with 15" trailer tires. A standard 2" ball coupling, two standard safety chains, and 7-pin flat trailer plug allow for easy hookup and towing. The trailer tongue can be removed for long term deployment. A rugged and waterproof job box is included, safely secured to the trailer. Four outriggers mounted to the corners of the trailer allow operators to level the trailer, and provide stabilization during deployment. All trailer lighting complies with DOT/FMVSS regulations.
