SPLT-1.06K-LM30-4XWP60-2XPTZ.23X-2TB-AT-BC-SP.120V Trailer Mounted 5-Stage Light Tower | Quick Summary |
Light Mast Specs | 12` to 30` Light Mast |
Tower Length: 12` to 30` | Steel Construction |
Mast Head Length: 44" | Powder Coated Finish |
Materials: Steel | Removable Mast Head |
Finish: Powder Coated - Gloss Blue | (4) 1,000lb Outriggers |
Operation: (1) 1,000lbs Hand Winch | 125 mph Wind Resistance |
Cable: 3/16" Galvanized Aircraft Cable | Manual or Optional Electric Operation |
 | (4) 265 Watt Solar Panels w/ Sliders |
Solar Specs | Fully Solar, No Fuel Needed |
Panes: (4) 265 Watt panels | Waterproof Lamps/Cameras |
Method of Deployment: Slider | 50,000+ Hour LED Life |
System Voltage: 24 Volts | Battery Charger w/ Cord Cap |
Battery Bank: (4) 12V 176aH Lithium Ion batteries | Auto Timer for Lights |
Battery Capacity: 704aH Total/704aH Usable | Embedded Linux Operating System |
Battery Charger Cord Cap: 20A 320P4W [125V] | 4G/LTE Router |
Extended Coverage via External Antenna | |
LED Lamp Specs | Customer-provided 4G Service |
Lamp Qty: (4) | De-fog Viewing (Rain and Fog) |
Lamp Type: CREE LED | 492` IR Camera Distance |
Total Watts: 240W (60W per lamp) | Full-HD, 20x Optical Zoom |
Total Lumens: 21,600 lms (5,400 per lamp) | Camera Motion Detection |
Luminous Efficacy: 90 lm/w | Includes 1080p Monitor |
LED Life Expectancy: 50,000+ hours |  |
Color Temp: 5600K |  |
Color Rendering Index: 80 | |
Beam Angle: 60° Vertical, 75° Horizontal | |
Lighting Configuration: Flood Beam | |
Lamp Housing Material: Cast Aluminum | |
Lamp Lens Material: Polycarbonate | |
Mounting: Tower w/ Adjustable Mounting Bracket | |
 |  |
Camera Specs | |
Camera Qty: (2) | |
Unit Type: Security Camera | |
Dimensions: 14.38" H x 7.12" D | |
Total Weight: 18 lbs | |
Total Watts: 51 (Max) | |
Voltage: 24V AC (PoE - 802.3at) | |
Image Sensor: CMOS | |
Connectors: 1.0Vp-p, 75 Ohm, BNC | |
Effective Pixels: 2.1 MP, 1920 x 1080 Resolution | |
Min. Illumination: 0.02 Lux @ F1.6 AGC On, 0 Lux w/ IR | |
Electronic Shutter: 1 ~ 1/10,000s | |
Lens: 4.7-94mm Varifocal Lens | |
Angle of View: 58.3° (Wide) ~ 3.2° (Tele) | |
Optical Zoom: 20x | |
Day/Night: ICR | |
IR Distance: 492` (850 nm) | |
Video Framerate: 1080p @ 30fps | |
Video Offload: MP4 | |
Video Output: (1) BNC | |
Language: English | |
Ambient Temperature Range: -22°F to 149°F | |
Housing Materials: Aluminum | |
Lens Material: Polycarbonate | |
Mounting: Tower w/ Adjustable Mounting Bracket | |
Color: Beige/Black | |
 |  |
NVR Specs | |
Device Type: Network Video Recorder | |
Dimensions: 15†W × 11.4†D × 1.8†H | |
Weight: 6.6 lbs | |
Storage Capacity: 2 TB SATA Hard Drive | |
Channels: 8 | |
Camera Resolution Support: Up to 8MP | |
Installation Type: Plug and Play | |
Incoming Bit Rate: 40Mbps | |
Outgoing Bit Rate: 80Mbps | |
FPS: 60fps Per Channel | |
Compression Format: H.265, H.264, H.264 OVC | |
Recording Modes: Continuous, Schedule, Event, Motion Detection, VCA | |
Export Format: MP4 | |
Video Outputs: (1) RCA, (1) VGA, (1) HDMI, (1) USB 2.0 (Front), (1) USB 3.0 (Rear) | |
Two-way Audio Input: 1-ch, RCA | |
Power Over Ethernet: = 120W, Supported Standards- 802.3af and 802.3at | |
Alarm Input: 4x (Rear Panel), Camera Dependent | |
Alarm Output: 1x (Rear Panel), Camera Dependent | |
Protocols: IPv4, TCP/IP, UDP, HTTP, UPnP, RTSP/RTP/RTCP, SMTP, FTP, DHCP, NTP, DNS, ONVIF, HTTP Multipart | |
Power Requirements: 100 ~ 240 VAC | |
Housing Material: Aluminum | |
Operating Temp: 14°F ~ 131°F | |
Color: Black | |
 | |
Monitor Specs | |
Unit Type: LED Monitor | |
Screen Size: 24" | |
Camera Qty: (2) | |
Resolution: 1080p | |
Speakers: Integrated | |
 | |
Router/Antenna Specs | |
Router Type: 4G/LTE Rugged Router | |
Modem: 600 Mbps Minimum | |
Built-in Security: Yes | |
Monitoring: Uptime w/ Real-time Alerts | |
4G Plan/Service: Customer Provided | |
External Antenna Frequency: 690~960 MHz, 1710~2170 MHz, 2500~2700 MHz | |
External Antenna Gain: 5dB | |
External Antenna Height: 12` | |
 | |
Trailer Specs | |
Materials: Steel | |
Trailer Dimensions: 7.5`L` x 7`W trailer bed - 10.75` total length | |
Hitch: 2" Ball Coupler | |
Wiring: 7-Pin Flat | |
Axle: 3,500lb | |
Suspension: 3,500 Lb 4-Leaf Double Eye Springs | |
Outriggers: (4) 1,000 Manual Crack Leveling Jacks | |
Wheels: (2) 15" 5x4.5 Steel Rims | |
Tires: ST205/75/D15 H188 | |
Weight: +-600 lbs | |
Shipping: Common Freight | Toll Free: 1-800-369-6671 |
Shipping Dimensions: 8`-L x 8`-W x 12`-H | |
Shipping Weight: +-600 lbs | Fax: 1-903-498-3364 |
Options: Length- Mounting-Fixtures/ Call Us for Special Requirements | E-mail: |

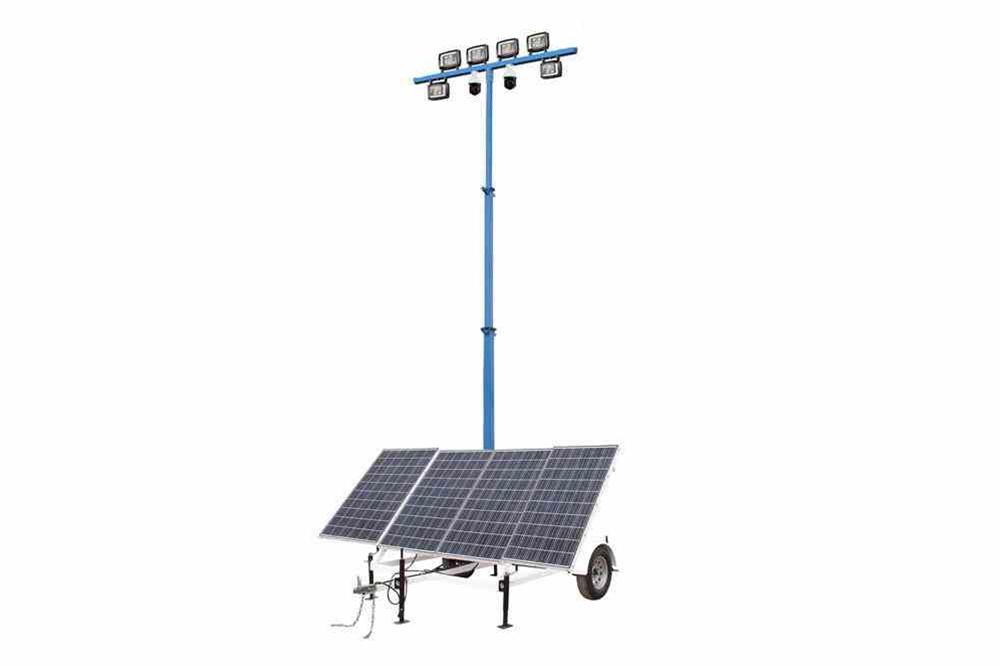

The Larson Electronics SPLT-1.06K-LM30-4XWP60-2XPTZ.23X-2TB-AT-BC-SP.120V solar-powered LED light tower provides a safe and effective way for operators to quickly deploy 240 watts of intense LED illumination and dual security cameras with day/night functionality to elevations up to 30 feet. This solar light plant features a telescoping light tower that folds over for easy transportation, a rotating boom that allows for 360° rotation and a removable mast head for storing the four LED light fixtures and two IP security cameras when not in use. The unit features four 265-watt solar panels and a 704 aH capacity battery bank. The entire assembly is mounted onto a 7.5` single axle trailer, allowing operators to transport this solar light tower from location to location. *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO LIGHT MASTS OR LIGHT TOWERS* Solar Powered Light Tower: This solar light tower includes four solar panels, solar charging system, battery bank, battery charger with cord cap, LED outdoor lamps, dual security cameras w/ NVR and 24" monitor, 4G wireless router w/ an external antenna and manual crank up mast mounted on trailer with outriggers. The 1.06 kW solar generator system replenishes amp hours of usable battery capacity per day, assuming 5.5 hours of peak charging sunlight. This system delivers 24 volts for lighting mounted atop the 30` telescoping light mast. The SPLT-1.06K-LM30-4XWP60-2XPTZ.23X-2TB-AT-BC-SP.120V is supported by four 176aH lithium-ion batteries, equating to 704aH battery capacity (704aH usable). A battery charger, with a 20-amp 125V 320P4W cord cap, provides flexibility during deployment, which allows operators to supply power to the batteries using an external power source. This feature is useful for fast turnaround projects, sustaining extended periods of illumination and remote sites that lack adequate exposure to sunlight. Light Mast: This telescoping steel light mast from Larson Electronics is designed to allow operators to quickly and safely deploy the four LED light heads and two security cameras in locations where this equipment must be elevated to heights up to 30` for effective coverage. This light boom can be extended to 30` above the trailer floor for maximum area coverage, and collapsed to 12` for applications where a smaller footprint is required. The tower is constructed of square steel tubing and contains 5 stages. The mast is elevated using an included 1,000 lbs. hand winch with 3/16 inch cable and extended to its full height using a second 1,000 lbs. winch. A 44" wide and 2" by 2" by 1/4" thick mounting plate is attached to the upper section of the mast which provides a strong and stable platform for the equipped LED light fixtures. When elevated to its full upright position, the mast can be rotated a full 360°. By loosening the T-Handle, operators can rotate the mast with easy in either direction. The mast can be positioned in one of four different positions, and locked back in place by re-tightening the T-handle. The mast itself spins freely with easy, and can typically be rotated with a single hand. The LM series of towers are powder coated with glossy blue finish for corrosion resistances and aesthetics. The LM family of telescoping towers feature a proprietary mast guidance system, which provide increased stability during high winds. Four 1,000 lbs hand crank leveling jacks are used for leveling. The jacks can be leveled by hand crank or attachment provided for power drills. These outriggers can be extended 2` out from the side of the trailer for added stability. When lowered to 12`, the mast can withstand winds up to 125 mph. Custom builds can be provided for higher wind speed resistance when fully raised. | ||||||||||||||||||||||
|
||||||||||||||||||||||
LED Light Fixtures: This solar light plant is equipped with four 60-watt LED lights. Each light assembly consists of six LEDs paired with high purity specular optics to produce a wide light distribution overpowering that of a 500 watt quartz flood lights. This light is constructed of three angled boards that helps provide a wider spread. Instead of the light only shining forward, the center board is concentrated to go straight out while the boards on the side are 45° offset. This LED wall pack is designed to withstand demanding conditions and is waterproof, vapor proof, and built to resist the damaging effects of an outdoor environment.
The LED lights are protected by a waterproof aluminum housing that is powder coated for added durability and resistance to corrosion. The housing incorporates integral cooling fins for efficient heat dissipation and increased LED longevity. The LED lamp assembly is protected by a shatterproof polycarbonate lens which is secured to the housing with a waterproof seal. A 1/2" waterproof connector provides a secure and sealed power connection point and rounds out this unit`s weather resistant construction. An optional glare shield it shipped with this light.
LED Technology: Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current applied and emitting light. With LED lights, there is no warm up time or cool down time before re-striking and provide instant illumination when powered on, adding to the reliability of LED technology. By nature, LED light sources run significantly cooler than traditional lamps, reducing the chance of accidental burns and increased temperatures due to heat emissions. This solid state design of light emitting diodes provides a more reliable, stable, durable, and energy efficient light source over traditional lighting.
Lamp Control: Each lamp can be powered on individually, allowing operators to power one lamp or all four lamps at a single time to fit the required illumination requirements. An equipped dusk-to-dawn day/night sensor allows for automated operation of the light configuration set within the control center. Operators may also set a time/duration for light activation using the built-in auto timer feature.
|
