1.06 kW Solar Light Tower - 30' Light Tower - 7.5' Trailer - (6) 60W LED Lamps - (4) 250aH 4D Batteries
1.06 kW Solar Light Tower - 30' Light Tower - 7.5' Trailer - (6) 60W LED Lamps - (4) 250aH 4D Batteries
常规价格
$54,458.00 CAD
常规价格
促销价
$54,458.00 CAD
结账时计算的运费。
Specifications / Additional Information
| SPLT-1.06K-LM30-6XWP600E-AT-BC Trailer Mounted 3-Stage Light Tower | Quick Summary |
| Light Mast Specs | 13.5` to 30` Light Mast |
| Tower Length: 13.5` to 30` | Steel Construction |
| Mast Head Length: 44" | Powder Coated Finish |
| Materials: Steel | Removable Mast Head |
| Finish: Powder Coated - Gloss Blue | (4) 1,000lb Outriggers |
| Operation: (1) 1,000lbs Hand Winch | 125 mph Wind Resistance |
| Cable: 3/16" Galvanized Aircraft Cable | Manual or Optional Electric Operation |
|  | (4) 265 Watt Solar Panels w/ Sliders |
| Solar Specs | Fully Solar, No Fuel Needed |
| Panes: (4) 265 Watt panels | Waterproof/Vapor Proof Lamps |
| Method of Deployment: Slider | 50,000+ Hour LED Life |
| System Voltage: 24 Volts | Lamps ETL Approved for Wet Locations |
| Battery Bank: (4) 12V 250aH 4D batteries | IP68 Waterproof Lamps |
| Battery Capacity: 1,000aH Total / 500aH Usable | Battery Charger |
| Auto Timer for Lights | |
| LED Lamp Specs | |
| Lamp Qty: (6) | |
| Lamp Type: CREE LED | |
| Total Watts: 360W | |
| Single-lamp Watts: 60W | |
| Total Lumens: 32,400 lms | |
| Single-lamp Lumens: 5,400 lms | |
| Luminous Efficacy: 90 lm/w | |
| LED Life Expectancy: 50,000+ hours | |
| Color Temp: 5600K, 4000K, or 3000K | |
| Color Rendering Index: 80 | |
| Beam Angle: 60° Vertical, 75° Horizontal | |
| Lighting Configuration: Flood Beam | |
| Ambient Temp Range: -25°C to +60° | |
| Lamp Housing Material: Cast Aluminum | |
| Lamp Lens Material: Polycarbonate | |
|  |  |
| Trailer Specs | |
| Materials: Steel | |
| Trailer Dimensions: 7.5`L` x 7`W trailer bed - 10.75` total length | |
| Hitch: 2" Ball Coupler | |
| Wiring: 7-Pin Flat | |
| Axle: 3,500lb | |
| Suspension: 3,500 Lb 4-Leaf Double Eye Springs | |
| Outriggers: (4) 1,000 Manual Crack Leveling Jacks | |
| Wheels: (2) 15" 5x4.5 Steel Rims | |
| Tires: ST205/75/D15 H188 | |
| Weight: +-600 lbs | |
| Shipping: Common Freight | Toll Free: 1-800-369-6671 |
| Shipping Dimensions: 8`-L x 8`-W x 12`-H | |
| Shipping Weight: +-600 lbs | Fax: 1-903-498-3364 |
| Options: Length- Mounting-Fixtures/ Call Us for Special Requirements | E-mail: |

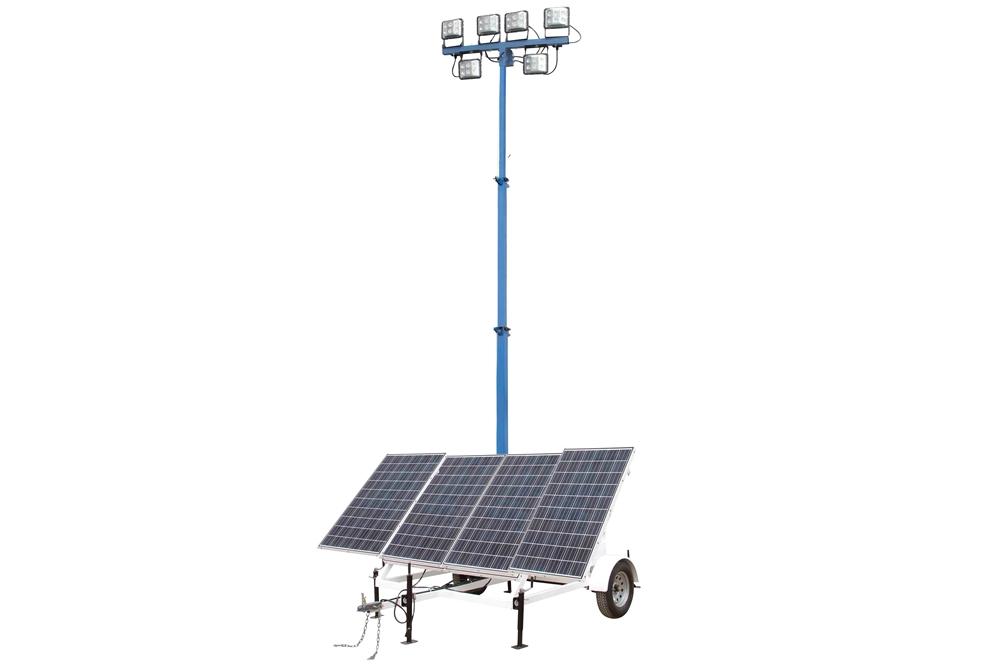

| Made in the USA The Larson Electronics SPLT-1.06K-LM30-6XWP600E-AT-BC solar powered LED light tower provides a safe and effective way for operators to quickly deploy 360 watts of intense LED illumination to elevations up to thirty feet. This solar light plant features a telescoping light tower that folds over for easy transportation, a rotating boom that allows for 360° rotation and a removable mast head for storing the six LED light fixtures when not in use. The unit features four 265-watt solar panels and a 1,000 aH capacity battery bank. The entire assembly is mounted onto a 7.5` single axle trailer, allowing operators to transport this solar light tower from location to location. *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO LIGHT MASTS OR LIGHT TOWERS* Solar Powered Light Tower: This solar light tower includes four solar panels, solar charging system, battery bank, battery charger, six LED lamps and manual crank up mast mounted on trailer with outriggers. The 1.06 kW solar generator system replenishes amp hours of usable battery capacity per day, assuming 5.5 hours of peak charging sunlight. This system delivers 24 volts for lighting mounted atop the 30` telescoping light mast. The SPLT-1.06K-LM30-6XWP600E-AT-BC is supported by four 250aH 4D 12V batteries, equating to 1,000aH battery capacity (500aH usable). A battery charger provides flexibility during deployment, which allows operators to supply power to the batteries using an external power source. This feature is useful for fast turnaround projects, sustaining extended periods of illumination and remote sites that lack adequate exposure to sunlight. Light Mast: This telescoping three stage steel light mast from Larson Electronics’ is designed to allow operators to quickly and safely deploy the six LED light heads in locations where this equipment must be elevated to heights up to 30` for effective coverage. This light boom can be extended to 30` above the trailer floor for maximum area coverage, and collapsed to 13.5` for applications where a footprint smaller is required. The tower is constructed of square steel tubing with a base section 6.6` in length and 6" by 6" by 3/16" thick, lower section 6.78` in length and 5" by 5" by 3/16" thick, middle section 6.93` in length and 4" by 4" by 1/8" thick, upper section 7.08` in length and 3" by 3" by 1/8" thick, and top section 7.58` in length and 2" by 2" by 1/8" thick. Each section has a 1`+ overlap. The mast is extended to its full height using an included 1,000lb rated hand winch with 3/16" galvanized steel cable. A 44" wide and 2" by 2" by 1/4" thick mounting plate is attached to the upper section of the mast which provides a strong and stable platform for the equipped LED light fixtures. When elevated to its full upright position, the mast can be rotated a full 360°. By loosening the T-Handle, operators can rotate the mast with easy in either direction. The mast can be positioned in one of four different positions, and locked back in place by re-tightening the T-handle. The mast itself spins freely with easy, and can typically be rotated with a single hand. The LM series of towers are powder coated with glossy blue finish for corrosion resistances and aesthetics. The LM family of telescoping towers feature a proprietary mast guidance system, which provide increased stability during high winds. Four 1,000 lbs hand crank leveling jacks are used for leveling. The jacks can be leveled by hand crank or attachment provided for power drills. These outriggers can be extended 2` out from the side of the trailer for added stability. When lowered to 13.5`, the mast can withstand winds up to 125 mph. Custom builds can be provided for higher wind speed resistance when fully raised. | ||||||||||||||||||||||
|
||||||||||||||||||||||
LED Light Fixtures: This solar light plant is equipped with six Larson Electronics LEDWP-600E high output LED light fixtures. The LEDWP-600E consists of six 10-watt LEDs housed within a waterproof aluminum housing that is powder coated for added durability and resistance to corrosion. The housing incorporates integral cooling fins for efficient heat dissipation and increased LED longevity. The LED lamp assembly is protected by a shatterproof polycarbonate lens which is secured to the housing with a waterproof seal. Mounting hardware for the LEDWP-600E consists of a stainless steel coated bracket and stainless steel screws to provide secure mounting and resistance to rust and corrosion. The mounting assembly provides for 360/180 degrees of rotation and tilt to allow the user to position the unit as desired once mounted.
LED Technology: Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current applied and emitting light. With LED lights, there is no warm up time or cool down time before re-striking and provide instant illumination when powered on, adding to the reliability of LED technology. By nature, LED light sources run significantly cooler than traditional lamps, reducing the chance of accidental burns and increased temperatures due to heat emissions. This solid state design of light emitting diodes provides a more reliable, stable, durable, and energy efficient light source over traditional lighting.
Lamp Control: Each lamp can be powered on individually, allowing operators to power one lamp or all six lamps at a single time to fit the required illumination requirements. An equipped dusk-to-dawn day/night sensor allows for automated operation of the light configuration set within the control center. Operators may also set a time/duration for light activation using the built-in auto timer feature.
|
||||||||||||||||||||||
