1.2 kW Solar Light Tower - 30' Tower - 7.5' Trailer - (4) LED Lamps - 1360aH Li-ion Battery Pack - Wind Generator

1.2 kW Solar Light Tower - 30' Tower - 7.5' Trailer - (4) LED Lamps - 1360aH Li-ion Battery Pack - Wind Generator

$82,190.00 CAD
$82,190.00 CAD
促销 售罄
结账时计算的运费。
Specifications / Additional Information
SPLT-1.2K-LM30-WG.04-4X150LTL-AT-BC Trailer Mounted 3-Stage Light Tower Quick Summary
Light Mast Specs 13.5` to 30` Light Mast
Tower Length: 13.5` to 30` Steel Construction
Mast Head Length: 44" Powder Coated Finish
Materials: Steel Removable Mast Head
Finish: Powder Coated - Gloss Blue (4) 1,000lb Outriggers
Operation: (1) 1,000lbs Hand Winch 125 mph Wind Resistance
Cable: 3/16" Galvanized Aircraft Cable Manual or Optional Electric Operation
  (4) 300 Watt Solar Panels w/ Sliders
Solar Specs Fully Solar, No Fuel Needed
Panes: (4) 300 Watt panels IP67 Waterproof Lamps
Method of Deployment: Slider 80,000+ Hour LED Life
System Voltage: 24 Volts Battery Charger
Battery Pack: 1,360aH Lithium-ion Battery Pack Auto Timer for Lights
Battery Capacity: 1,360aH Total / 1,360aH Usable Weatherproof Wind Generator

Wind Generator Specs
Dimensions: 9.44" x 25.59" x 5.7"
Rotor Diameter: 44.1"
Voltage: 12V
Watts: 400W
Amps: 27A
Blades: 3
Minimum Wind Speed: 7 mph
Maximum Wind Speed: 45 mph
Protection: Overspeed, Overcharge
Materials: Cast Aluminum, Carbon Fiber Composite
Finish: Powder Coated

LED Lamp Specs
Lamp Type: CREE LED
Lamp Qty: (4)
Total Watts: 600W
Single-lamp Watts: 150W
Total Lumens: 81,000 lms
Single-lamp Lumens: 20,250 lms
Luminous Efficacy: 135 lm/w
LED Life Expectancy: 80,000+ hours
LED Color Temperature: Cool White - 5500-6500K
Lighting Configuration: Wide Spot Beam
Ambient Temp Range: -25°C to +60°
Materials: Die Cast Aluminum Housing, PMMA Optics
Housing Color: Powder Coated Black

Trailer Specs
Materials: Steel
Trailer Dimensions: 7.5`L` x 7`W trailer bed - 10.75` total length
Hitch: 2" Ball Coupler
Wiring: 7-Pin Flat
Axle: 3,500lb
Suspension: 3,500 Lb 4-Leaf Double Eye Springs
Outriggers: (4) 1,000 Manual Crack Leveling Jacks
Wheels: (2) 15" 5x4.5 Steel Rims
Tires: ST205/75/D15 H188
Weight: +-600 lbs
Shipping: Common Freight Toll Free: 1-800-369-6671
Shipping Dimensions: 8`-L x 8`-W x 12`-H Intl: 1-214-616-6180
Shipping Weight: +-600 lbs
Options: Length- Mounting-Fixtures/ Call Us for Special Requirements
' Product Overview '

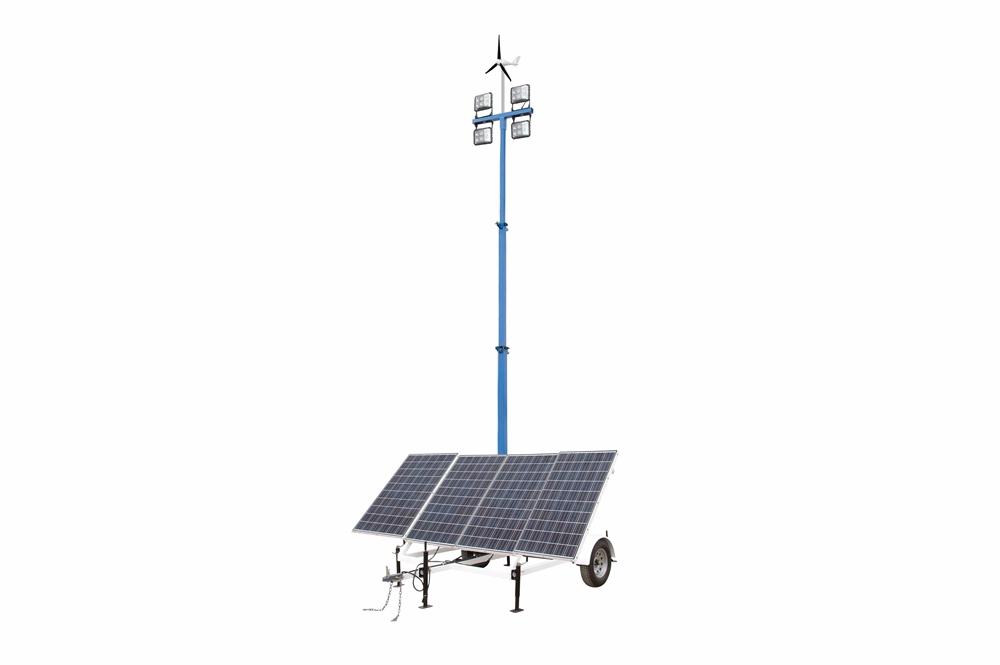

The Larson Electronics SPLT-1.2K-LM30-WG.04-4X150LTL-AT-BC Solar-powered LED Light Tower provides a safe and effective way for operators to quickly deploy 600 watts of intense LED illumination to elevations up to thirty feet. This solar light plant features a telescoping light tower that folds over for easy transportation, a rotating boom that allows for 360° rotation and a removable mast head for storing the four LED light fixtures when not in use. The unit features four 300-watt solar panels, a 400-watt wind generator and a 1,360 aH lithium-ion battery pack. The entire assembly is mounted onto a 7.5` single axle trailer, allowing operators to transport this solar light tower from location to location. *PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO LIGHT MASTS OR LIGHT TOWERS* Solar Powered Light Tower: This solar light tower includes four solar panels, wind generator, solar charging system, battery bank, battery charger and manual crank up mast mounted on trailer with outriggers. The 1.2 kW solar generator system replenishes amp hours of usable battery capacity per day, assuming 5.5 hours of peak charging sunlight. This system delivers 24 volts for lighting mounted atop the 30` telescoping light mast. The SPLT-1.2K-LM30-WG.04-4X150LTL-AT-BC is supported by a 1,360aH lithium-ion battery pack, equating to 1,360aH battery capacity (1,360aH usable). A battery charger provides flexibility during deployment, which allows operators to supply power to the batteries using an external power source. This feature is useful for fast turnaround projects, sustaining extended periods of illumination and remote sites that lack adequate exposure to sunlight. Light Mast: This telescoping three stage steel light mast from Larson Electronics’ is designed to allow operators to quickly and safely deploy the four LED light heads in locations where this equipment must be elevated to heights up to 30` for effective coverage. This light boom can be extended to 30` above the trailer floor for maximum area coverage, and collapsed to 13.5` for applications where a smaller footprint is required. The tower is constructed of square steel tubing with a base section 6.6` in length and 6" by 6" by 3/16" thick, lower section 6.78` in length and 5" by 5" by 3/16" thick, middle section 6.93` in length and 4" by 4" by 1/8" thick, upper section 7.08` in length and 3" by 3" by 1/8" thick, and top section 7.58` in length and 2" by 2" by 1/8" thick. Each section has a 1`+ overlap. The mast is extended to its full height using an included 1,000lb rated hand winch with 3/16" galvanized steel cable. A 44" wide and 2" by 2" by 1/4" thick mounting plate is attached to the upper section of the mast which provides a strong and stable platform for the equipped LED light fixtures. When elevated to its full upright position, the mast can be rotated a full 360°. By loosening the T-Handle, operators can rotate the mast with ease in either direction. The mast can be positioned in one of four different positions, and locked back in place by re-tightening the T-handle. The mast itself spins freely with easy, and can typically be rotated with a single hand. The LM series of towers are powder coated with glossy blue finish for corrosion resistance and aesthetics. The LM family of telescoping towers feature a proprietary mast guidance system, which provide increased stability during high winds. Four 1,000 lbs hand crank leveling jacks are used for leveling. The jacks can be leveled by hand crank or attachment provided for power drills. These outriggers can be extended 2` out from the side of the trailer for added stability. When lowered to 13.5`, the mast can withstand winds up to 125 mph. Custom builds can be provided for higher wind speed resistance when fully raised.
44" Mast Head for mounting lights and equipment Mast folds over for transportation and when not in use
Click Image to Enlarge Click Image to Enlarge
LED Light Fixtures: This solar light plant is equipped with four GAU-LTL-150W-LED lights from Larson Electronics. Each LED lamp produces 20,250 lumens of high intensity light. Sixteen CREE® high output LEDs producing 1,350 lumens each are arranged in rows and paired with PMMA high purity optics to produce a well focused 24° wide spot beam that is ideal for providing far reaching concentrated illumination while still covering a substantial amount of area. We also offer optional optics with 10° spot, 38° narrow flood, 60° flood, and 90° wide flood beam spreads. The spot beams are tightly focused and are designed for high elevation mounting to achieve distance, making spot versions ideal for high mast and spots lighting. The flood beams are designed to provide more light over a larger area nearer the fixture, making flood versions ideal for use as dedicated work and area lights. The 150-watt lights are ideal replacements for fragile and hot running 400-watt metal halide lamps. They offer low power requirements and high durability that makes these LED light emitters a superior lighting solution for demanding applications where power and reliability is critical. The heavy-duty design and power of these LED lights also make them suitable for a wide array of applications, including but not limited to: high mast lighting, light towers, light plant LED retrofits, military, mining, industrial manufacturing, machine visioning, security and law enforcement, commercial structure illumination, sport complexes, billboards, race tracks, and parking lots to name a few. LED Technology: Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current applied and emitting light. With LED lights, there is no warm up time or cool down time before re-striking and provide instant illumination when powered on, adding to the reliability of LED technology. By nature, LED light sources run significantly cooler than traditional lamps, reducing the chance of accidental burns and increased temperatures due to heat emissions. This solid state design of light emitting diodes provides a more reliable, stable, durable, and energy efficient light source over traditional lighting. Lamp Control: Each lamp can be powered on individually, allowing operators to power one lamp or all four lamps at a single time to fit the required illumination requirements. An equipped dusk-to-dawn day/night sensor allows for automated operation of the light configuration set within the control center. Operators may also set a time/duration for light activation using the built-in auto timer feature.
Images Below Show Light Tower Lowered and Raised to 30ft.
Click Images to Enlarge
Lamps Off (Ambient Light) (4) 60 Watt LED Lamps Turned On Illuminating Wall 200ft. Away (20,000+sq.ft. area)
Area from Above
Solar Panel Assembly: This unit is comprised of four 300-watt solar panels, generating a total maximum output of 1.2 kW. The panels are mounted securely on a sliding assembly. During deployment, the top solar panels slide out to form a four-panel array for maximum exposure to sunlight. The panels are wired to the solar charger control box which manages the charging system. When in use, the four solar panels are angled at 45° to capture the intensity of the sun for optimized light intake. Wind Generator: The SPLT-1.2K-LM30-WG.04-4X150LTL-AT-BC contains a 400-watt wind generator, which can be used to charge the batteries in windy conditions. The compact turbine is equipped with three, carbon fiber blades and features overspeed protection. For best results, the unit should be exposed to a minimum wind speed of seven mph and a maximum wind speed of 45 mph. This weatherproof wind generator comes with a charge controller that automatically shuts down the unit, when the batteries are in a fully charged state. Component Control Center: All the electrical components are encapsulated in a NEMA 3R job box that is bolted to the trailer. Since most of these components are not rated for high heat, our component cooling system circulates air within the job box at 1400 CFM when the ambient temperature exceeds 90 degrees Fahrenheit. The job box that contains the component control system includes locks for security purposes. Trailer Assembly: The entire assembly is mounted to a 7.5` by 7`, single axle trailer via six 1/2" anchor bolts. The two wheel trailer is equipped with 3,500 lbs axle and leaf springs with 15" trailer tires. A standard 2" ball coupling, two standard safety chains, and 7-pin flat trailer plug allow for easy hookup and towing. The trailer tongue can be removed for long term deployment. A rugged and waterproof job box is included, safely secured to the trailer. Four outriggers mounted to the corners of the trailer allow operators to level the trailer, and provide stabilization during deployment. All trailer lighting complies with DOT/FMVSS regulations. Applications: Remote work locations, construction sites, military bases, camping sites, outdoor events, security applications, emergency services, outdoor lighting, portable lighting and more.
