SPLT-.53K-LM30-2XN3B-PW-TLR7-2XPTZ-20X-2TB-W4G Trailer Mounted Solar Generator Security Mast | Quick Summary |
Mast Specs | 9` to 30` Mast |
Tower Length: 9` to 30` | Steel Construction |
Stages: 5 | Powder Coated Finish |
Mast Head Length: 44" | Removable Mast Head |
Materials: Steel | (4) 1,000lb Leveling Jacks |
Finish: Powder Coated - Gloss Blue | 125 mph Wind Resistance |
Operation: (1) 1,000lbs Hand Winch | Manual or Optional Electric Operation |
Mast Cable: 3/16" Galvanized Aircraft Cable | A-Frame for mounted (2) 265 Watt Solar Panels |
Cable Sheath: Sealtight Coiled Tubing | Fully Solar, No Fuel Needed |
Low Noise Operation | |
Solar Specs | IP66 Waterproof Cameras |
Panels: (2) 265 Watt panels | Day/Night Monitoring |
Method of Deployment: Fixed Mount | De-fog Viewing (Rain and Fog) |
System Voltage: 12 Volts | 360° Rotation, -15°~90° Tilt |
Battery Bank: (2) 12V 8D 250aH batteries | 492` IR Distance |
Battery Capacity: 500aH Total / 250aH Usable | Full-HD, 20x Optical Zoom |
 | Motion Detection |
IP Camera Specs | CE, FCC, RoHS, UL Listed NVR |
Unit Type: (2) Security Camera | Embedded Linux Operating System |
Camera Dimensions: 14.38" H x 7.12" D | CAT5E Networking Cable |
Camera Weight: 9 lbs | Professional Grade Router |
Total Watts: 51 (Max) | Extended Coverage via External Antenna |
Voltage: 24V AC (PoE - 802.3at) | Verizon 4G Hotspot |
Image Sensor:Â CMOS | Â |
Connectors: 1.0Vp-p, 75 Ohm, BNC | Â |
Effective Pixels: 2.1 MP, 1920 x 1080 Resolution | |
Min. Illumination: 0.02 Lux @ F1.6 AGC On, 0 Lux w/ IR | |
Electronic Shutter: 1 ~ 1/10,000s | |
Lens: 4.7-94mm Varifocal Lens | |
Angle of View: 58.3° (Wide) ~ 3.2° (Tele) | |
Optical Zoom: 20x | |
Day/Night: ICR | |
IR Distance: 492` (850 nm) | |
Video Framerate: 1080p @ 30fps | |
Video Offload: MP4 | |
Video Output: (1) BNC | |
Language: English | |
Ambient Temperature Range: -22°F to 149°F | |
Housing Materials: Aluminum | |
Lens Material: Polycarbonate | |
Mounting: Tower | |
 | |
NVR Specs | |
Device Type: Network Video Recorder | Â |
Storage Capacity: 2 TB SATA Hard Drive | Â |
Channels: 8 | Â |
Camera Resolution Support: Up to 8MP | Â |
Installation Type: Plug and Play | Â |
Incoming Bit Rate: 40Mbps | |
Outgoing Bit Rate: 80Mbps | |
FPS: 60fps Per Channel | |
Compression Format: H.265, H.264, H.264 OVC | |
Recording Modes: Continuous, Schedule, Event, Motion Detection, VCA | |
Export Format: MP4 | |
Video Outputs: (1) RCA, (1) VGA, (1) HDMI, (1) USB 2.0 (Front), (1) USB 3.0 (Rear) | |
Two-way Audio Input: 1-ch, RCA | |
Power Over Ethernet: = 120W, Supported Standards- 802.3af and 802.3at | |
Alarm Input: 4x (Rear Panel), Camera Dependent | |
Alarm Output: 1x (Rear Panel), Camera Dependent | |
Protocols: IPv4, TCP/IP, UDP, HTTP, UPnP, RTSP/RTP/RTCP, SMTP, FTP, DHCP, NTP, DNS, ONVIF, HTTP Multipart | |
Power Requirements: 100 ~ 240V AC | |
Housing Material: Aluminum | |
Operating Temp: 14°F ~ 131°F | |
Networking Cable: CAT5E | |
 | |
Router/Antenna Specs | |
Router Type: Pepwave Surf SOHO Router | |
WAN Interface: 1x 100/1000M Ethernet Port, 1x USB 2.0 Interface, Wi-Fi as WAN | |
LAN Interface: 4x 100/1000M Ethernet Ports, Simultaneous Dual-Band 11ac Wi-Fi AP | |
Wi-Fi AP Operating Frequency: 2412 - 2472MHz and 5180 - 5825MHz | |
Wi-Fi Data Rates: 3x3 MIMO, 2.4GHz: 450Mbps or 5GHz: 1300Mbps | |
Wi-Fi Antenna: 3x External Wi-Fi Antenna | |
Router Throughput: 120 Mbps | |
Power Input: DC Jack: 10V - 24VDC AC Adapter: AC Input 100V - 240V, DC Output 12V, 3A | |
Power Consumption: 26W (w/ USB WAN), 22W (w/o USB WAN) | |
Dimensions: 9.17` x 5.6` x 1.18` | |
Weight: 0.86 lbs | |
Humidity: 15% - 95% (Non-condensing) | |
External Antenna Frequency: 690~960 MHz, 1710~2170 MHz, 2500~2700 MHz | |
External Antenna Gain: 5dB | |
External Antenna Height: 12` | |
 |  |
Trailer Specs | |
Materials: Steel | |
Trailer Dimensions: 7.5`L` x 7`W trailer bed- 10.75 total length | |
Hitch: 2" Ball Coupler | |
Wiring: 7-Pin Flat | |
Axle: 3,500lb | |
Suspension: 3,500 Lb 4-Leaf Double Eye Springs | |
Leveling Jacks: (4) 1,000 Manual Crank Leveling Jacks | |
Wheels: (2) 15" 5x4.5 Steel Rims | |
Tires: ST205/75/D15 H188 | |
Weight:Â +-600 lbs | |
Shipping:Â Common Freight | Toll Free:Â 1-800-369-6671 |
Shipping Dimensions:Â 8`-L x 8`-W x 12`-H | |
Shipping Weight:Â +-600 lbs | |
Options:Â Length- Mounting-Fixtures/ Call Us for Special Requirements |
Made in the USA

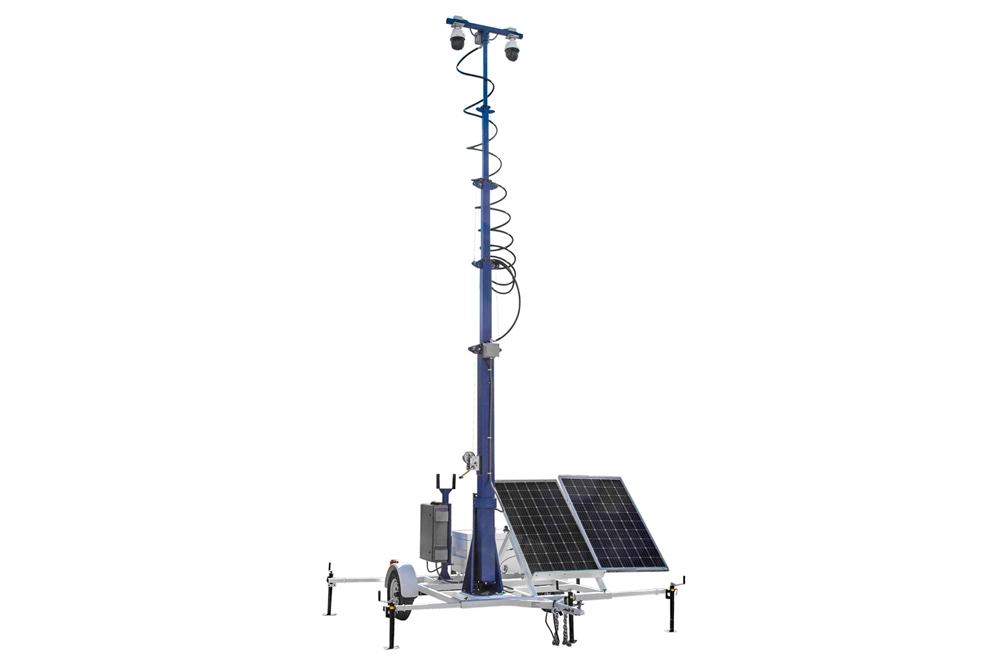

The Larson Electronics SPLT-.53K-LM30-2XN3B-PW-TLR7-2XPTZ-20X-2TB-W4G solar powered security tower provides a safe and effective way for operators to quickly deploy cameras, security devices, and other equipment to elevations up to 30 feet. This solar security plant features a telescoping tower that folds over for easy transportation, a rotating boom that allows for 360° of rotation and a removable mast head for storage when not in use. This low-noise unit features two, IP outdoor cameras, router/wireless 4G hotspot access, two, 265-watt solar panels and a 400aH capacity battery bank with 200aH being usable. A 2TB NVR can be found at the base of the mast.
*PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO LIGHT MASTS OR LIGHT TOWERS*
This trailer mounted security mast with solar generator has a 12" x 12" x 6" junction box and two, IP outdoor cameras mounted at the top of the mast. The junction box supports the security cameras for a 360° field of view and can be used with other electrical devices for each operator`s specific needs, such as small sensors and monitoring devices. The junction box is mounted to the mast head via a half-moon shaped mounting plate. External sealtite coiled tubing runs around the mast to allow operators to run Ethernet cable to the junction box at the top of the mast. The tubing connects the junction box and base solar component box together. The entire assembly is mounted onto a 7.5` single axle trailer, allowing operators to transport this portable solar tower from location to location. Operators may access a 2TB NVR for network configurations. The system, which supports wireless 4G hotspot access, utilizes CAT5E cable for networking.
Network Cameras: The security cameras provide operators with crisp, 1080p full-HD high resolution images. A 4.7-94mm varifocal lens automatically adjusts focus, providing operators with precise 20x optical zoom levels. Integrated long-range IR LEDs, with a wavelength measurement of 850 nm, enable the day/night cameras to see distances up to 492` under nighttime conditions. The units offload videos in MP4 format and features H.264 and MJPEG video compression. The PTZ cameras each measure a compact 14.38" x 7.12".
The cutting-edge security devices are designed to perform in outdoor locations and rainy conditions. The IP66-rated units resist the negative effects of non-corrosive liquids. De-fogging features enable the units to operate in rainy and foggy conditions. The devices are capable of operating in temperatures between -22°F and 149°F.
NVR: The solar tower contains an 8-channel NVR that can be used with the network cameras. Setup only takes minutes via plug-and-play, which automatically detects, displays and configures system components. With multiple recording modes (Schedule, Continuous, Motion Detection and Event) and 2TB of storage, users could capture hours of footage with ease. The remote configurable network recorder features a bit rate of 40Mbps incoming and 80Mbps outgoing at up to 60fps per channel. To maximize storage, the unit supports H.265, H.264, and H.264 OVC video compression.
The network recorder is compatible with two-way audio streaming (camera dependent) and includes 9 ethernet ports (RJ-45 interface). During recording, the unit handles the following data: activity log, email notification, event log, event notification, video analytics and event search. This device offloads videos in MP4 format. Cameras hooked up to the NVR-POE-8CH-2TB may use power directly via PoE (802.3af / 802.3at) during operation. The NVR runs on 100 - 240VAC of power and is suitable for use in temperatures between 14°F - 131°F.
NVR Inputs: (1) RCA, 4 Sensor Inputs
NVR Outputs: (1) RCA, (1) VGA, (1) HDMI, (1) USB 2.0 (front), (1) USB 3.0 (rear)
Router/Wireless 4G Hotspot: Operators can connect to Verizon 4G internet via a professional-grade router. The unit supports dual-band 2.4 GHz (450 Mbps) and 5 GHz (1,300 Mbps), as well as 3x3 MIMO. Stateful firewall and DoS prevention ensures secure network usage during operation. Settings and configurations are controlled via a cloud-based smartphone app or web-based computer program. An external antenna is available for signal boosting and extending hotspot coverage. The antenna measures 12` and offers compatibility with the following frequencies: 690~960 MHz, 1710~2170 MHz and 2500~2700 MHz.
|
