SPLT-.6K-LM20-TLR7-PA-ACC-4X6MP.OZ-2TB-W4G-M1 Trailer Mounted Solar Security Mast | Quick Summary |
Mast Specs | 12' to 20' Mast |
Tower Length: 12' to 20' | Steel Construction |
Stages: 3 | Powder Coated Finish |
Mast Head Length: 44" | Removable Mast Head |
Materials: Steel | (4) 1,000 lb Outriggers w/ Stabilizing Jacks |
Finish: Powder Coated - Gloss Blue | 65 MPH Constant Wind Speed Rating |
Operation: (1) 2,500 lb Manual Crank Winch | 85 MPH Gust Rating |
Mast Cable: 3/16" Galvanized Aircraft Cable | A-Frame for Mounted (2) 300 Watt Solar Panels |
Cable Sheath: Sealtight Coiled Tubing | Fully Solar, No Fuel Needed |
Low Noise Operation | |
Solar Specs | Wi-Fi and 4G/LTE Router |
Panels: (2) 300 Watt Panels | Easy Setup for Rapid Deployment |
Method of Deployment: Fixed Mount | 2TB NVR |
System Voltage: 12 Volts | Loud Speaker PA System for Voice Warnings |
Solar Charge Controller: LCD Display - Charge/Real-time Status | Â |
Battery Bank: (12) 40aH Lithium Iron Phosphate | Â |
Battery Capacity: 480aH Total - 100% Usable | Â |
Battery Charger: 120V | Â |
Battery Enclosure Cooling: Fan | Â |
Battery Voltage Monitoring: Remote | Â |
 |  |
Camera Specs | Â |
Unit Type: (4) Varifocal Security Cameras | Â |
Camera Dimensions: - | Â |
Camera Weight: - | Â |
Total Watts: - | Â |
Voltage: - | Â |
Mega Pixels: 6MP | Â |
Mounting: Tower | |
LED Light Specs | |
Lamp Qty: (4) | |
Lamp Type: CREE LED | |
Dimensions: W-9" Â D-3.25" Â H-6.5" | |
Weight: - | |
Total Watts: 240W | |
Single-lamp Watts: 60W | |
Total Lumens: 21,600 lms | |
Single-lamp Lumens: 5,400 lms | |
Luminous Efficacy: 90 lm/w | |
LED Life Expectancy: 50,000+ hours | |
Color Temp: 5600K | |
Color Rendering Index: 80 | |
Beam Angle: 60° Vertical, 75° Horizontal | |
Lighting Configuration: Flood Beam | |
Amperage: - | |
Ambient Temp Range: -50°C to +70° | |
Housing Material: Cast Aluminum | |
Lens Material: Polycarbonate | |
Mounting: Tower | |
Wiring: - | |
Strobe Light Specs | |
Lamp Type: LED | |
Dimensions: 4.5"-High, 6.5" Diameter | |
Lamp Weight: 3 lbs | |
Wattage: 14.4 | |
Lumens: - | |
Candela: - | |
Luminous Efficiency: - | |
Lighting Configuration: Strobing Flash | |
Color: Red and White | |
NVR Specs | |
Device Type: Network Video Recorder | Â |
Storage Capacity: 2 TB SATA Hard Drive | Â |
Channels: 8 | Â |
Camera Resolution Support: Up to 8MP | Â |
Installation Type: Plug and Play | Â |
Incoming Bit Rate: 40Mbps | |
Outgoing Bit Rate: 80Mbps | |
FPS: 60fps Per Channel | |
Compression Format: H.265, H.264, H.264 OVC | |
Recording Modes: Continuous, Schedule, Event, Motion Detection, VCA | |
Export Format: MP4 | |
Video Outputs: (1) RCA, (1) VGA, (1) HDMI, (1) USB 2.0 (Front), (1) USB 3.0 (Rear) | |
Two-way Audio Input: 1-ch, RCA | |
Power Over Ethernet: = 120W, Supported Standards- 802.3af and 802.3at | |
Alarm Input: 4x (Rear Panel), Camera Dependent | |
Alarm Output: 1x (Rear Panel), Camera Dependent | |
Protocols: IPv4, TCP/IP, UDP, HTTP, UPnP, RTSP/RTP/RTCP, SMTP, FTP, DHCP, NTP, DNS, ONVIF, HTTP Multipart | |
Monitor: 14" HD Screen w/ Anti-glare Monitor | |
Mouse: Included | |
Power Requirements: 100 ~ 240 V AC | |
Housing Material: Aluminum | |
Operating Temp: 14°F ~ 131°F | |
Networking Cable: CAT5E | |
Remote Connectivity: Yes w/ Customer-provided 4G Service | |
 | |
PA System Specs | |
Loud Speaker PA: (1) | |
Remote Speak: Yes | |
 | |
Router/Antenna Specs | |
Router Type: 4G/LTE Rugged Router | |
Modem: 600 Mbps Minimum | |
Built-in Security: Yes | |
Monitoring: Uptime w/ Real-time Alerts | |
4G Plan/Service: Customer Provided | |
GPS: Included | |
External Antenna: Not Included | |
Trailer Specs | |
Materials: Steel | |
Trailer Dimensions: 7.5'L x 7'W Trailer Bed- 10.75' Total Length | |
Hitch: 2" Ball Coupler | |
Wiring: 7-Pin Flat | |
Axle: 3,500 lb | |
Suspension: 3,500 lb 4-Leaf Double Eye Springs | |
Outriggers: (4) 1,000 Manual Crank Leveling Jacks | |
Lights: DOT Listed - All Running Lights | |
Wheels: (2) 15" 5x4.5 Steel Rims | |
Tires: ST205/75/D15 H188 | |
Weight: +-600 lb | |
Shipping: Common Freight | |
Shipping Dimensions: 8'-L x 8'-W x 12'-H | |
Shipping Weight: +-600 lb | |
Options: Length - Mounting - Fixtures / Call Us for Special Requirements |

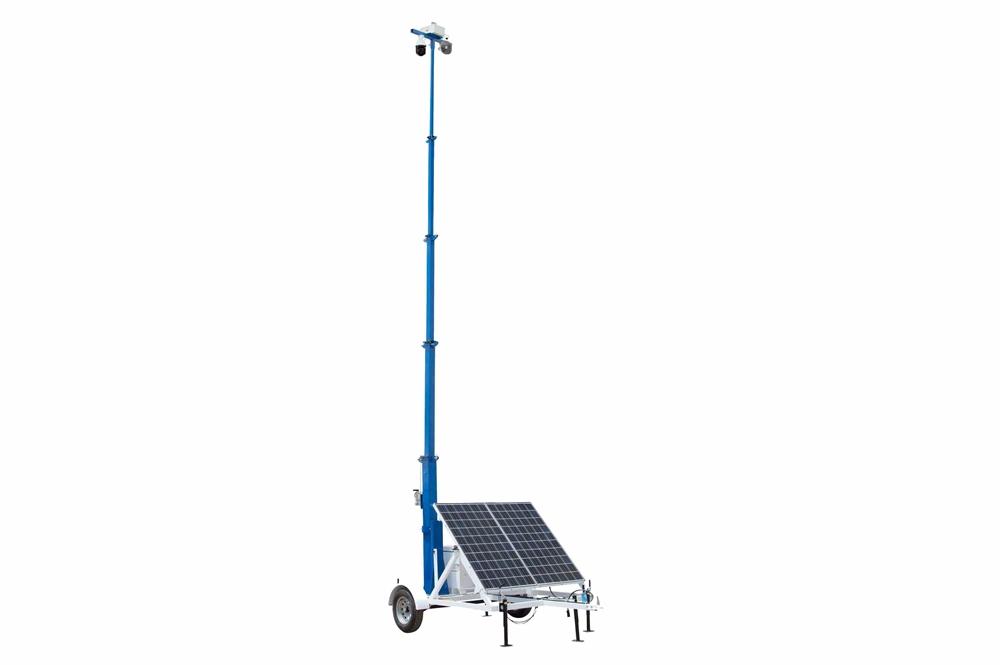

The SPLT-.6K-LM20-TLR7-PA-ACC-4X6MP.OZ-2TB-W4G-M1 from Larson Electronics is a Solar Security Tower that provides a safe and effective way for operators to quickly deploy equipment to elevations up to 20 feet. This solar security plant features a telescoping tower that folds over for easy transportation, a rotating boom that allows 360° rotation, and a removable mast head for storage when not in use. The low-noise unit features four outdoor cameras, four LED lights, one red/white strobe light, one loud speaker PA system, router/wireless 4G hotspot access (requires customer-provided 4G plan), two 300-watt solar panels and a 160aH capacity battery bank. A 2TB NVR can be found at the base of the mast.
*PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO LIGHT MASTS OR LIGHT TOWERS*
The SPLT-.6K-LM20-TLR7-PA-ACC-4X6MP.OZ-2TB-W4G-M1 is a portable solar-powered security system for outdoor and remote locations. This unit consists of a 20' telescoping mast, two 300-watt solar panels, four cameras, NVR, red and white strobe light, wireless router, GPS tracking, battery bank, battery charger and solar charge MPPT controller. The entire assembly is mounted onto a 7.5` single axle trailer, allowing operators to transport this portable solar tower from location to location.
Operation:
€¢ (2) 300W solar panels w/ solar MPPT charge controller
€¢ (12) 40aH batteries - 480aH total battery bank/480aH usable
€¢ (4) 6MP bullet cameras, varifocal
€¢ 2TB NVR
€¢ 4G LTE router - wireless access point or cell network
€¢ (1) Red and white strobe light
€¢ (4) LED Lights
€¢ (1) Loud Speaker PA
€¢ 120V battery charger
€¢ All system components secured to a DOT-approved trailer
€¢ Trailer comes with (4) leveling jacks and vin#
Bullet Cameras: Four 6MP bullet cameras provide operators with full-HD high resolution images. A varifocal lens automatically adjusts focus, providing operators with precise zoom levels.
NVR: The solar tower contains an 8-channel NVR that can be used with the network cameras. Setup only takes minutes via plug-and-play, which automatically detects, displays and configures system components. With multiple recording modes (Schedule, Continuous, Motion Detection and Event) and 2TB of storage, users could capture hours of footage with ease. The remote configurable network recorder features a bit rate of 40Mbps incoming and 80Mbps outgoing at up to 60fps per channel. To maximize storage, the unit supports H.265, H.264, and H.264 OVC video compression.
The network recorder is compatible with two-way audio streaming (camera dependent) and includes 9 Ethernet ports (RJ-45 interface). During recording, the unit handles the following data: activity log, email notification, event log, event notification, video analytics and event search. This device offloads videos in MP4 format. Cameras hooked up to the NVR may use power directly via PoE (802.3af / 802.3at) during operation.
NVR Inputs: (1) RCA, 4 Sensor Inputs
NVR Outputs: (1) RCA, (1) VGA, (1) HDMI, (1) USB 2.0 (front), (1) USB 3.0 (rear)
LED Lights: There are four LED lights on the system for outdoor illumination. Each light assembly consists of six LEDs paired with high purity specular optics to produce a wide light distribution overpowering that of a 500 watt quartz flood lights. This light is constructed of three angled boards that helps provide a wider spread. Instead of the light only shining forward, the center board is concentrated to go straight out while the boards on the side are 45° offset.
The LED lamps consist of six LEDs housed within a waterproof aluminum housing that is powder coated for added durability and resistance to corrosion. The housing incorporates integral cooling fins for efficient heat dissipation and increased LED longevity. The LED lamp assembly is protected by a shatterproof polycarbonate lens which is secured to the housing with a waterproof seal. A 1/2" waterproof connector provides a secure and sealed power connection point and rounds out this unit`s weather resistant construction. An optional glare shield it shipped with this light.
Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current applied and emitting light. With LED lights, there is no warm up time or cool down time before re-striking and provide instant illumination when powered on, adding to the reliability of LED technology. By nature, LED light sources run significantly cooler than traditional lamps, reducing the chance of accidental burns and increased temperatures due to heat emissions. This solid state design of light emitting diodes provides a more reliable, stable, durable, and energy efficient light source over traditional lighting.
PA System: This unit features a loud speaker PA system. Operators can speak into the speaker from remote locations.
Router/Wireless 4G Hotspot: Operators can connect to wireless access points or cellular networks via a professional-grade router. The unit supports WAN, LAN and Wi-Fi interfaces with 100Mbps throughput capabilities. Recommended for 1-60 users, this device works with all major carriers (CDMA/GSM/LTE). The access point can be disabled for security purposes upon request. Customers must provide a 6dbi antenna for the system (not included).
GPS Tracking: The router is equipped with built-in GPS fleet tracking. This feature enables operators to monitor the location of the solar-powered system easily. Cloud-based management tools enable access to the wireless network from compatible devices.
LED Strobe: The system has a red and white security LED strobe light. We can add a blue LED strobe light at an additional cost (combination of colors is also possible).
|
