SPLT-.6K-LM30-EW-TLR10-2X100W-4XPTZ-1XFE-W4G-M1 Trailer Mounted Solar Security Mast | Quick Summary |
Mast Specs | National Defense Authorization Act (NDAA) Compliant |
Tower Length: Telescoping to 30' | 30' Solar Light Tower |
Stages: 5 | Steel Construction |
Mast Head Length: 44" | Powder Coated Finish |
Materials: Steel | Removable Mast Head |
Finish: Powder Coated - Gloss Blue | 125 mph Wind Resistance |
Operation: Electric Winch | Electric Winch Operation |
Mast Cable: 3/16" Galvanized Aircraft Cable | (2) 300 Watt Solar Panels |
Lights: (2) Rotatable 100W Flood Lights - Day/Night, Motion, or Overwrite Operation | Fully Solar, No Fuel Needed |
 | 120 V Battery Charger |
Solar Specs | Foldable Tongue |
Panels: (2) 300 Watt panels | 12 TB NVR |
Method of Deployment: Fixed Mount | GPS Tracking |
System Voltage: 12 Volts | Blue LED Strobe Light |
Solar Charge Controller: 40A MPPT | 600W Inverter |
Battery Bank: (10) 40aH Lithium-ion Batteries | 4kW Backup Diesel Generator |
Battery Capacity: 400aH Total / 400aH Usable | (4) PTZ Cameras |
Battery Charger: 120 V - Connected to Backup Genset | (1) Dome Camera |
Inverter: 600W [120 V] | 1-way PA System |
System Runtime: - | Collapsed Mast Clears Standard Bridges |
(2) 100W LED Flood Lights | |
Backup Generator Specs | |
Fuel Type: Diesel |  |
Total Watts: 4,000W |  |
Fuel Tank Capacity: 30 Gallons |  |
Autostart: When Battery Bank Reaches Below 30% Capacity |  |
 | |
LED Strobe Light Specs |  |
Lamp Type: LED |  |
Voltage: - |  |
Watts: - |  |
LED Expected Lifespan: 50,000+ Hours |  |
LED Color: Blue |  |
Light Pattern: Strobe |  |
Amps: - |  |
Materials: - |  |
Mount: Mast |  |
 |  |
PA System Specs |  |
PA Unit Type: 1-way Talking |  |
Speakers: (2) 50W |  |
Mount: Mast |  |
 | |
PTZ Camera Specs | |
Camera Type: PTZ Outdoor Camera | |
Camera Qty: (4) | |
Single-camera Watts: 25.5 (Max) | |
Voltage: - | |
Image Sensor: CMOS | |
Connectors: 1.0Vp-p, 75 Ohm, BNC | |
Resolution: 720p and 1080p | |
Min. Illumination: 0.02 Lux @ F1.6 AGC On, 0 Lux w/ IR | |
Electronic Shutter: 1 ~ 1/10,000s | |
Lens: 4.7-94mm Varifocal Lens | |
Angle of View: 58.3° (Wide) ~ 3.2° (Tele) | |
Rotation: 360° | |
Zoom: 12x Digital, 30x Optical | |
Day/Night: ICR | |
IR Distance: 492' (850 nm) | |
Video Framerate: 1080p @ 30fps | |
Video Offload: MP4 | |
Video Output: (1) BNC | |
Language: English | |
Ambient Temperature Range: -22°F to 149°F | |
Housing Materials: Aluminum | |
Lens Material: Polycarbonate | |
Mount: Mast | |
 | |
Dome Camera Specs | |
Camera Type: Panoramic Dome Camera | |
Camera Qty: (1) | |
Total Watts: - | |
Voltage: - | |
Megapixels: 5MP | |
Position: Downwards | |
Coverage: 360° (Trailer and Surrounding Area of Trailer) | |
Materials: - | |
Mount: Mast | |
 |  |
Network Video Recorder Specs | |
Storage Capacity: 12 TB SATA Hard Drive | |
Channels: 8 | |
Camera Resolution Support: Up to 8 MP | |
Installation Type: Plug and Play | |
Incoming/Outgoing Bit Rate: : 40 Mbps/80 Mbps | |
Frame Rate (fps): 60 fps per Channel | |
Recording Modes: Continuous, Schedule, Event, Motion Detection and VCA | |
Export Format: MP4 | |
Video Outputs: (1) RCA, (1) VGA, (1) HDMI, (1) USB 2.0 (Front), (1) USB 3.0 (Rear) | |
PoE: = 120W, Supported Standards- 802.3af and 802.3at | |
Alarm Input: 4x (Rear Panel), Camera Dependent | |
Alarm Output: 1x (Rear Panel), Camera Dependent | |
Protocols: IPv4, TCP/IP, UDP, HTTP, UPnP, RTSP/RTP/RTCP, SMTP, FTP, DHCP, NTP, DNS, ONVIF, HTTP Multipart | |
Materials: Aluminum | |
 | |
Router Specs | |
Wireless Router Type: Pepwave MAX BR1 MK2 Router w/ CAT6 LTE Advanced Modem (Wireless Access Network and Cell Network) | |
WAN Interface: (1) GE, (1) Embedded LTE-A Modem | |
LAN Interface: (1) GE | |
Wi-Fi Interface: 802.11ac/a/b/g/n 2x2 MIMO Simultaneous Dual-Band, Wi-Fi WAN & AP | |
Router Throughput: 100Mbps | |
4G Bands: FDD LTE- B1, B2, B3, B4, B5, B7, B8, B12, B13, B20, B25, B26, B29, B30, B41 | |
3G Bands: WCDMA/HSPA+/DC-HSPA+- B1, B2, B3, B4, B5, B8 | |
Recommended Users: 1-60 | |
GPS Tracking: Built-in | |
SIM Slots: (2) | |
Cellular and GPS Antenna Connector: (2) SMA Antenna Connectors, (1) SMA GPS Antenna Connector, (2) Wi-Fi Connector | |
Power Input: DC Jack/Terminal Block: 10V – 30V DC | |
Power Consumption: 16W (Max) | |
Antenna: 6dbi (Not Included) | |
 | |
System Devices Specs | |
Monitor Type: 12" | |
Mouse Type: USB | |
Keyboard Type: USB | |
Pull-out Tray Type: Vibration | |
 | |
Trailer Specs | |
Materials: Steel | |
Trailer Dimensions: 10'L x 6'W (Trailer Bed) - 14'L (Tow Length) | |
Trailer Footprint: 14.65'-L x 12.91'-W | |
Wiring: 7-Pin Flat | |
Axle: 3,500 lb | |
Suspension: 3,500 lb 4-Leaf Double Eye Springs | |
Leveling Jacks: (4) 1,000 lb Manual Crack Leveling Jacks | |
Wheels: (2) 15" 5x4.5 Steel Rims | |
Tires: ST205/75/D15 H188 | |
Hitch: 2" Ball Coupler |  |
Transport Dimensions: 160.68"-L x 88"-W x 81.15"-H | Special Orders - Requirements |
Weight: +-1200 lb | |
Shipping: Common Freight | Toll Free: 1-800-369-6671 |
Shipping Dimensions: 14'L x 10'W x 12'H | Intl: 1-214-616-6180 |
Shipping Weight: - | |
Options: Length - Mounting - Fixtures / Call Us for Special Requirements |
Made in the USA

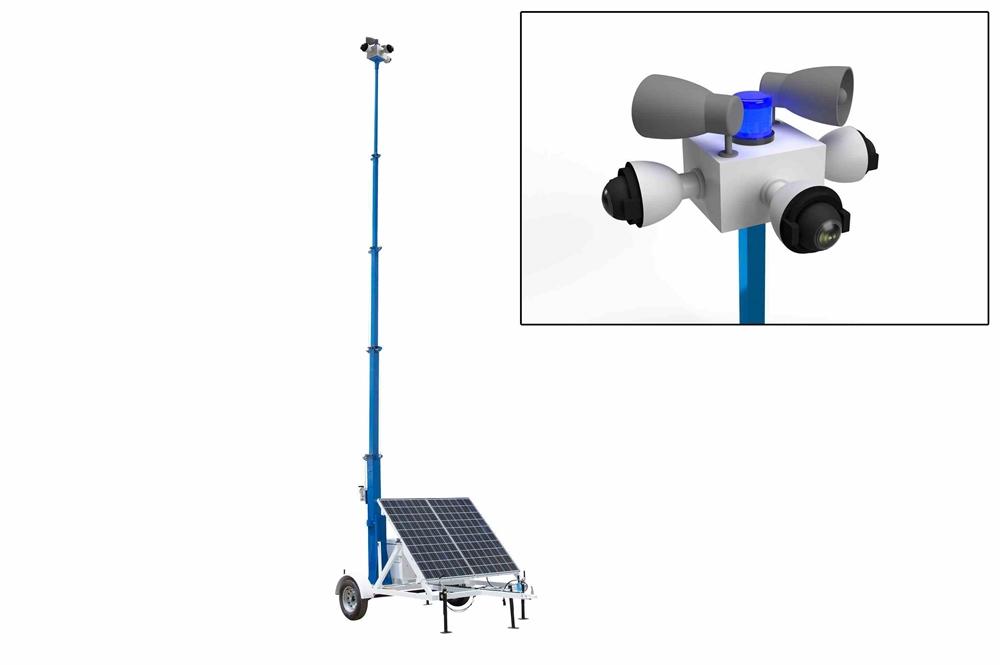

The SPLT-.6K-LM30-EW-TLR10-2X100W-4XPTZ-1XFE-W4G-M1 from Larson Electronics is a Portable Security Tower that provides a safe and effective way for operators to illuminate and monitor locations from elevated positions up to 30'. This solar security assembly features a telescoping tower with a removable mast head for storage when not in use. Two 100-watt LED lights provide visibility in low light conditions while the five outdoor security cameras (four PTZ cameras and one dome camera - all NDAA compliant) can be used to record images, supported by a 12TB NVR. Equipped with GPS tracking, an included router facilitates wireless access point and cell network connections (6dbi antenna not included). This unit features two 300-watt solar panels (fixed mount), 400aH capacity lithium-ion battery bank, 4kW backup diesel generator, 120V battery charger and 600-watt inverter.
*PLEASE NOTE: ANY FREE SHIPPING OFFERS DO NOT APPLY TO LIGHT MASTS OR LIGHT TOWERS*
The SPLT-.6K-LM30-EW-TLR10-2X100W-4XPTZ-1XFE-W4G-M1 is a complete, portable solar-powered security system for outdoor and remote locations. This unit consists of a 30' telescoping mast with electric winch, two-100 watt LED flood lights, two 300-watt solar panels, four PTZ cameras, one dome camera, wireless router, GPS tracking, lithium-ion battery bank, backup diesel generator, battery charger, inverter and solar charge MPPT controller. All components are mounted on a single-axle trailer. This system does not come with monitoring plans.
All cameras on this system comply with the 2019 National Defense Authorization Act (NDAA). The regulation bans federal governments, their contractors and businesses with national security interests from buying and using surveillance equipment made by specific major China-based manufacturers, including Hikvision, Dahua and their OEMs. Security products sold by Honeywell, Bosch, Panasonic, ADT, Flir and many more are affected by the ban. NDAA compliance also includes a ban on ZTE, Huawei and Hytera telecommunication equipment.
