Solar Powered Industrial Horn - 8 Tones, 10 Decibels - 30W Solar Panel - Programmable Timer - N4X

LARSON ELECTRONICSSKU: PL3-SPWASN-HRN-PA-AT-MOD1
filler

Price:
Sale price$5,160.00

Description

Specifications / Additional Information
SPWASN-HRN-PA-AT-MOD1 Solar Power Industrial Horn Ratings/Approvals
Type: Solar Powered Industrial Horn NEMA 4X Rated
Horn Dimensions: 10.8"L x 10"W x 10"H UL Listed
Horn Control Box Dimensions: 9.5"L x 6"W x 4"D Marine Rated
Weight: 19.5 lbs
Materials: Cast Aluminum & Fiberglass
Volume: 110 dBa @ 10 Feet
Mounting: Omni directional mounting bracket, 1/2" conduit access
Operating Modes: 8 User Selectable Field Tones
Ambient Operating Temperature: –55°C to +85°C (–67°F to +185°F)
Timer Configuration: 1 Horn per Hour Between 6:30AM to 5:30PM
Solar Panel Solar Panel Features
Operation: Power output based on timer Multiple Mounting Options
Panel Dimensions: 14.3"-W x 27.89"-L x 3.19"-D Solar Panel w/ 8 Amp Rating
Weight: 15 lbs Waterproof
Ambient Temp: -45°C to +55°C
Runtime: 12 Hours
Charging Time: 5 Hours
Battery: (4) Sealed Lead Acid Battery
Mounting: Surface or Pole
Wiring: 15` SOOW Whip w/ Blunt Cut Ends
' Product Overview '

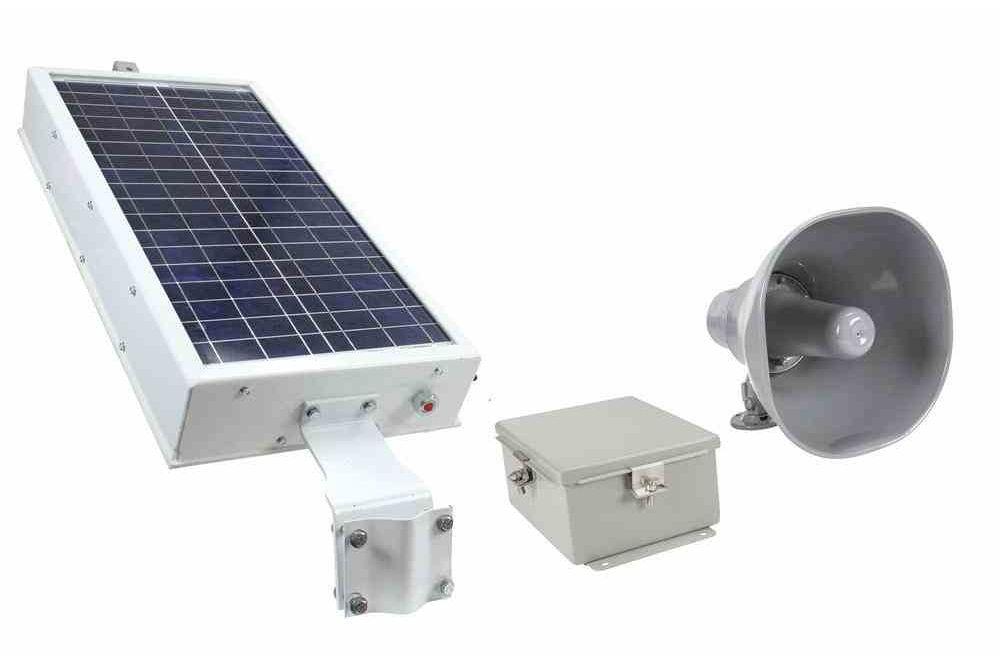

The SPWASN-HRN-PA-AT-MOD1 from Larson Electronics is a Solar Powered Industrial Siren that is NEMA 4X rated, weather and dust proof and includes 8 tones that can reach up to 110dBa while also being remotely operated. The included 30 watt solar panel recharges the 4 batteries in 5 hours with direct sunlight. A programmable timer activates the industrial horn once per hour, from 6:30AM to 5:30PM. The SPWASN-HRN-PA-AT-MOD1 industrial horn provides operators in wet locations with an effective and powerful alert/signal system that can withstand demanding conditions and be heard over the operation of industrial machinery. This unit includes 8 different tones which can reach peak output of 110dBA and can be remotely operated for priority alerts. A programmable timer ensures accurate and automated operation of once per hour from 6:30AM to 5:30PM. The housing on this solar powered horn is constructed of heavy duty aluminum and the horn is formed fiberglass. The entire unit is finished in durable grey powder coat for resistance to corrosion, is weatherproof/dustproof, and NEMA4x and marine rated for wet environments. Wiring is through a 1/2" conduit access hub and mounting is via an omni directional bracket which allows mounting to flat surfaces and vertical adjustment of the horn for secure placement and optimum sound direction.
The solar panel is weatherproof and designed to catch the maximum amount of sunlight possible when properly mounted. As with all solar powered equipment, charging time is affected by the amount of available ambient light. When ambient light levels drop below a certain level, such as on very cloudy days, the unit will not recharge. The sealed lead acid battery pack is contained within the solar panel, not the connected equipment. The mounting apparatus is designed to allow a variety of mounting options including flat surfaces such as a wall and square or round pole mounting. The SPWASN-HRN-PA-AT-MOD1 features a 15 foot whip of SOOW cable off the panel with a blunt cut end. Operators provide their own additional wiring to accomodate their specific mounting and wiring circumstances.
Tones (Selectable by switch on sound module):
1. Continuously running train of eight sounds in sequence 2. Wail - conventional siren 3. Yelp - rapid siren 4. Two-tone 5. Whoop - ascending low to high 6. Yeow - descending high to low 7. Horn - Steady 8. Beep - slow intermittent horn 9. Stutter - rapid intermittent horn 0. Remote-Enables remote selection of: (7) - Horn (4) - Two tone - alternating (3) - Yelp - rapid siren (1) - Wail - manual siren
