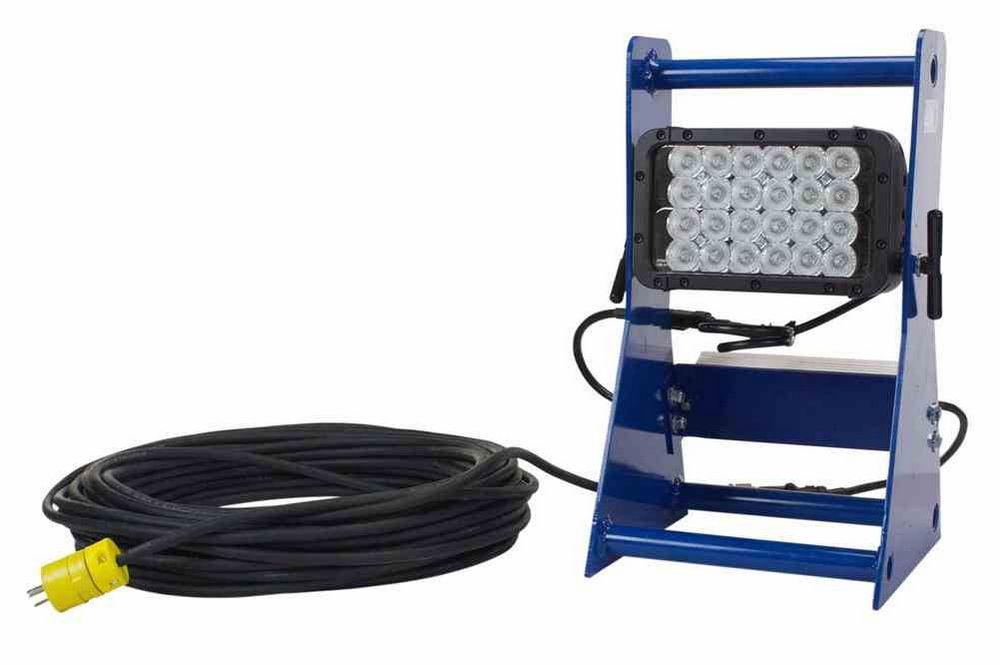

72W Portable LED Waterproof Work Light - Aluminum Frame - 120-240VAC to 12VDC or 24VDC - 25' SOOW

72W Portable LED Waterproof Work Light - Aluminum Frame - 120-240VAC to 12VDC or 24VDC - 25' SOOW

$3,172.00 CAD
$3,172.00 CAD
促销 售罄
结账时计算的运费。
Specifications / Additional Information
WAL-PM-24LED-XLVI-25 LED Work Light WAL-PM-24LED-XLVI-25 Features
Lamp Type: 24 Edixeon 3 Watt LED Emitters IP68 Rated Weatherproof & Waterproof
Dimensions: 9.5"-L 17.25" -H 10.2"-D Adjustable LED Lamp Head
Total Watts: 72 Long 50,000 Hour LED Life
Lumens: 4,320 Low Amp Draw
Voltage: 120-240V AC Stepped Down to 12V DC or 24V DC 3 Watt Edixeon® LED Emitters
Mounting: Portable Pedestal Frame Inline Stepdown Transformer
Lighting Configuration: 35° Flood or 10° Spot
LED Light Color: 6000K
LED Life Expectancy: 50,000 Hours
Wiring: 25` 12/3 SOOW Between Tower & Transformer, 5` 12/3 SOOW Line Out
Cord Cap: 5-15, L5-15, L6-15, BS1363, Schuko, or Pigtail
Unit Weight: 20 lbs Total
Spot Beam: 900`L x 100`W
Flood Beam: 300`L X 280`W
' Product Overview '
The WAL-PM-24LED-XLVI-25 Portable LED Work Light from Larson Electronics offers high light output and extreme durability within a portable pedestal frame. This versatile LED work light is IP68 rated and is waterproof to three meters. This portable LED area light produces 4,320 lumens of light while drawing only 72 watts of power. An included inline stepdown transformer converts commonly used 120-240V AC electrical current to 12V DC or 24V DC depending on the operators choice. The WAL-PM-24LED-XLVI-25 work area LED light provides a floodlight beam that is 300 feet wide and 280 feet long with 4,320 lumens of light output. We also offer optional spotlight versions with 10° optics to produce a tighter beam with much longer throw and higher intensity. The LED light head measures 8.25 inches long by 5.25 inches high. The LED light head on this unit produces a brilliant flood pattern of light that is ideal for work area and temporary lighting applications. This portable LED work light is comprised of a light head mounted atop a base stand fabricated from non-sparking aluminum with a convenient carrying handle built into the top of the stand. Twenty-four Edison Edixeon® Emitters containing CREE EZBright three watt LEDs producing 180 lumens each are arranged in rows and paired with high purity 35° optics to produce an evenly spread floodlight beam. The lamp can be easily adjusted up or down 90 degrees and locked into position by simply loosening the two thumb screws located on either side of the light head and retightening them once the desired angle is found. Included with this LED light is 25 feet of SOOW cord terminating in a NEMA 5-15 straight blade plug. LED Benefits: Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation and/or transportation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current is applied, providing instant illumination with no warm up or cool down time before re-striking. Because there is no warm up period, this light can be cycled on and off with no reduction in lamp life. LED lights run at significantly cooler temperatures than traditional metal halide and high pressure sodium lights and contain no harmful gases, vapors, or mercury, making them both safer and more energy efficient. No extra energy is wasted in cooling enclosed work areas due to external heat emissions from bulb type lights, and the operator risks associated with traditional lighting methods, such as accidental burns and exposure to hazardous substances contained in the glass bulbs, are eliminated. In addition, LEDs are also safer for the environment as they are 100% recyclable, which eliminates the need for costly special disposal services required with traditional gas burning and arc type lamps. Stepdown Transformer Features: The stepdown transformer in the WAL-PM-24LED-XLVI-25 provides a safe and effective way for users to tap into and utilize common 100 to 277 Volt AC power sources and convert this current to 12 Volts DC or 24 Volts DC (make choice when ordering below) for use with equipment that requires low voltage electrical power. This unit can be operated with input current ranging from 100 to 277 VAC and will output 12 Volt DC or 24 Volt DC current. This power converter features an IP67 rated waterproof design, making it suitable for indoor or outdoor use and is wet-damp area approved. This converter includes integral short circuit, over voltage, over temperature and overload protection that will shut down the unit or reduce output in case of faults and overloads to protect the unit and connected equipment from damage.
Click Photo to Enlarge
Power: These LED tower lights are equipped with an inline stepdown transformer that converts commonly used 120-240V AC electrical current to 12 VDC or 24V DC current. This tower is equipped with a waterproof single switch controller that allows operators to power the lights on or off without having to unplug the tower. We also offer a dual switch configuration which allows operators to operate each light independently of the other or in tandem.
Click Photos to Enlarge
5-15 Straight Blade Plug 15 Amp / 125V Rated L5-15 Twist Lock Plug 15 Amp / 125V Rated L6-15 Twist Lock Plug 15 Amp / 250V Rated
UK BS1363 Straight Blade Plug 13 Amp / 250V Rated / Internal Fuse Intl Schuko 2-Pin Plug 16 Amp / 250V Rated / Grounded Flying Leads / Pigtail Wires
Wiring and Plug: This LED work light is equipped with 25 feet of 12/3 chemical and abrasion resistant SOOW cord between the transformer and the tower. There is also five feet of line out cord that is fitted with an industrial grade cord cap for easy connection to common wall outlets. Plug options include standard 5-15 15 amp straight blade plug for 110V wall outlets with ground, NEMA L5-15 15 amp twist lock plug for 125V twist lock outlets, NEMA L6-15 15 amp twist lock plug for 240V twist lock outlets, British BS1363 13 amp fused 3-blade plug for United Kingdom outlets, or a two pin 16 amp rated Schuko plug with ground contact and socket for European outlets up to 250V. Alternatively, we can provide flying leads with no plug for hard wire applications or for operators who prefer to wire in user provided cord caps. Please choose pigtail option below for flying leads with no plug. Heat Management: Heat is the single largest factor in premature LED failure and color shifting. As a result, many manufacturers reduce the output of their LEDs to reduce the amount of heat produced. These LED work lights utilize an extruded aluminum housing that incorporates an advanced heat radiating fin design which dissipates heat efficiently to produce the maximum amount of power and longevity from the integrated Edison Edixeon® Emitters. The end result is more light and longer LED life with higher average lumen maintenance after 50,000 hours. Durability: This LED work area light is made up of IP68 rated construction that is designed to withstand extremes of environmental and operating conditions. These LED area lights can withstand rapid temperature changes of -40° Celsius to 85° Celsius, are waterproof to three meters and resist ingress of dust, dirt and humidity. The housings are formed from thick extruded aluminum and the lenses are shock resistant polycarbonate. The Edixeon® LEDs offer inherent LED resistance to shocks and vibrations contributing to these unit`s 15.6Grms rating of vibration tolerance.
Made in USA Quality Superior LED Benefits
1. UL Listed power supply, cable and plug. 2. Led lamp head requires no re-lamping. 3. Durable base mount resists toppling. 4. Extreme long life LEDs reduce maintenance and replacement costs. 5. Adjustable LED light head. 6. 4,320 Lumens produced from only 72 watts. 7. Shock resistant LED lamp light head. 1. 50,000 hour lifespan. 2. Can SAVE 50% or more on energy. 3. Qualifies retrofit projects for financial incentives, including utility rebates, tax credits and energy loan programs. 4. Reduces energy use and prolongs life-spans of peripheral cooling units (A/C, refrigeration) 5. 100% recyclable. 6. No toxins-lead, mercury. 7. No UV light, infrared radiation or CO2 emissions. 8. Qualifies buildings for LEED and other sustainable business certifications. 9. Bright, even light maintains consistent color over time. 10. Instant on/off - No flickering, delays or buzzing. 11. Very good color rendering. 12. Vibration/impact resistant. 13. Significantly cooler operation. 14. Less frequent outages, higher output improves workplace safety. 15. California Title 24 Compliant
