Larson 1200' Work Area Mining String Light - 120 LED Lamps - 277V- 10/4 SOOW Cable - Daisy Chain

Larson ElectronicsSKU: PL3-WAL-SL-MJ-120-LED-10.4-L22
filler

Price:
Sale price$143,766.00

Description

PuriLite suggests you place an order directly with us for large Larson orders due to the potential customization requirements. Please email us at info@purilite.ca to place your order. If you prefer to place your order online, a PuriLite agent will be in touch with you to discuss any custom options.

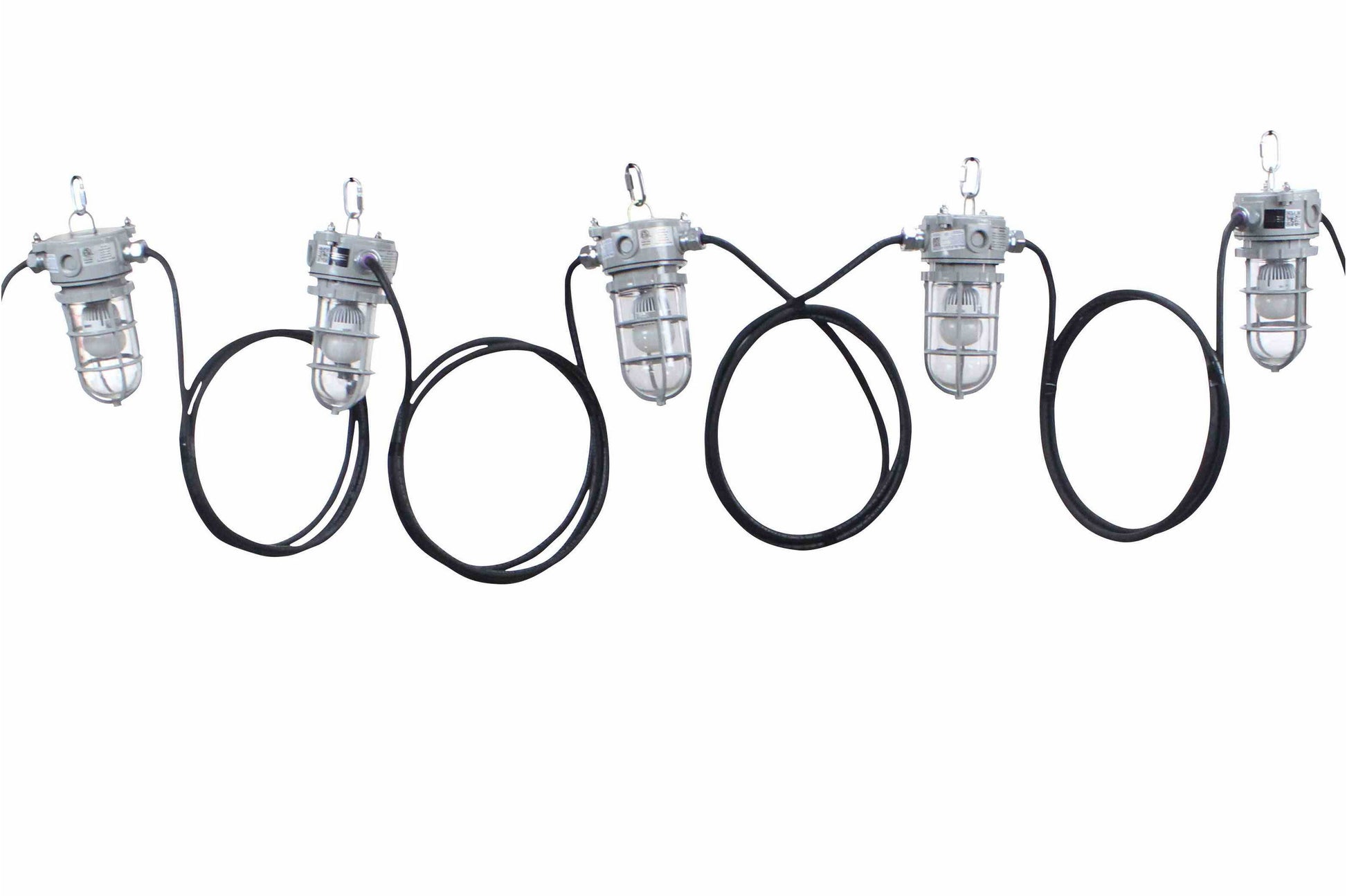

The Larson Electronics WAL-SL-MJ-120-LED-10.4-L22 Temporary Tunnel LED String Light System is designed for high output illumination and daisy chain connections across a total length of 1,200` away from the power source. The 10 watt LED lamps on this this work site light set provide more and higher quality light than 100 wattage incandescent lights while creating less heat and using less power. This LED light stringer operates on 277V AC and provides operators with a temporary work light solution for tunnels and underpasses up to a mile in length.
This temporary tunnel string light consists of 120 industrial grade LED lamps with 10` of 10/4 SOOW cable between each unit, stretching a total of 1,200` in length. This temporary LED string light is connected to a 277V power source via an integrated 5` line-in cable (also comes with 5 feet of output whip). For seamless installation, this unit features quick disconnects every 300 feet. Operators are provided access to L22-30P and L22-30C cord caps for electrical connections.
Each mason jar lamp is equipped with a high output LED bulb which delivers more light output than a 100 watt incandescent. The 10-watt LED bulbs draw 10% the electrical power of a standard 100-watt bulb, making it suitable for standard voltage and low voltage applications. Each LED light screws into an E26 lamp socket and the bulb is enclosed in a bird cage style metal guard.
A total of 120 high output A19 style LED lamps producing 1,050 lumens per lamp provide a total of 126,000 lumens of bright white illumination. Each lamp housing is constructed from copper free aluminum, and fitted with a tempered glass diffuser. These LED light bulbs provide additional safety measures and time savings, given the low heat production and that it does not require replacing for 50,000 hours. Since the LED bulb uses solid state technology, the vibration (dropping, etc.) that degrades conventional incandescent bulbs is not an issue with these LED bulbs.
LED Benefits:
Unlike gas burning and arc type lamps that have glass bulbs, LEDs have no filaments or fragile housings to break during operation and/or transportation. Instead of heating a small filament or using a combination of gases to produce light, light emitting diodes (LEDs) use semi-conductive materials that illuminate when electric current is applied, providing instant illumination with no warm up or cool down time before re-striking. Because there is no warm up period, this light can be cycled on and off with no reduction in lamp life.
LED lights run at significantly cooler temperatures than traditional metal halide and high pressure sodium lights and contain no harmful gases, vapors, or mercury, making them both safer and more energy efficient. No extra energy is wasted in cooling enclosed work areas due to external heat emissions from bulb type lights, and the operator risks associated with traditional lighting methods, such as accidental burns and exposure to hazardous substances contained in the glass bulbs, are eliminated. In addition, LEDs are also safer for the environment as they are 100% recyclable, which eliminates the need for costly special disposal services required with traditional gas burning and arc type lamps.
Safety within the workplace is another benefit of LED work lights and temporary lighting. All light sources produce heat. With traditional work lamps, such as incandescent and halogen light sources, the lamp reaches high surface temperatures. These surface temperatures introduce a burn risk to anyone to anyone that allows prolonged skin contact with the light source, as well as a fire hazard if a flammable material is accidentally set too close to the light source for an extended period of time. While LED fixtures do still produce heat, they are designed with heat sinks to properly disperse the heat. Each LED bulb is engineered to disperse and expel this heat quickly and efficiently, keeping the lamp cooler than traditional light sources. This LED work light operates at a lower surface temperature than a comparable model with traditional light source, and thus does not present a significant burn risk if an operator or bystander accidentally brushed up against an exposed lamp, and reduce the fire hazard should they fixture accidentally come in contact with a flammable material for a short period of time. This significantly increases the safety within the work environment.
Each light housing is constructed of light weight aluminum and is fitted with an aluminum mesh guard enclosure that provides protection for the enclosed bulb. Utilizing energy efficient LED lamps, operators are able to provide more light coverage from the same amp draw, or lower the amp draw using the same amount LED lamps as incandescent. Each LED light has an effective range that approximately covers a 5-8` radius with 10-15 foot candles of light. Unlike fragile incandescent and compact fluorescent lamps that are made from glass, these LED bulbs are extremely durable and can live up to the abuse of harsh working conditions. With a lamp life of 50,000 hours, operators are not constantly having to replace burnt out or broken lamps, reducing down time and lowering the amount of spare lamps required at the job site.
Each high output LED lamp produces more light output than standard 100 watt rough serve lamps. The 3D polar distribution curve displays a standard 100 watt rough service incandescent lamp (red) in comparison to the LED-A19-10-E26 high output LED lamp (green) that is used in this work area string light. The LED lamp visible covers more than twice ground than the 100 watt rough service lamp, and the higher CRI of the LED lamp provides a better working environment. The cool white color temperature allows operators to see fine details that would not be clearly visible incandescent lighting.
Daisy Chain:
Multiple stringer sections can be daisy chained together via 10` whips terminated in twist lock connectors, with a maximum of fifteen stringers daisy chained together. Alternating hots along between each daisy chained unit allows these string lights to be connected together, spanning over 6000` in length. Previously, it would have been unrealistic to have a complete assembly reaching 6000` in length from a single point of power.
These LED lamps are suitable for wet areas, extremely long lived, resistant to damage from impacts and vibrations, and consume far less energy than standard lamps.
This tunnel string light is configured to operate with 277 volt electrical current. The LED lamps provide more and better quality illumination than 100 watt incandescent string lights without the high heat and fragile glass construction of traditional lamps. With the low energy requirements of LED lamps, mile long assembly units are now physically possible.
Mounting:
The WAL-SL-MJ-120-LED-10.4-L22 is designed with rear-mounted brackets to allow for hanging of the string light assembly. A hook eyelet on the back of each lamp housing allows operators to hang these lights overhead.
Contact info@purilite.ca for more information about our custom options tailored to meet your specific industry needs.

Specifications
Lamp Type: LED
Lamp Quantity: 120
Voltage: 277V AC
Lamp Watts: 10 Watts
Total Watts: 1,200 Watts
Lumens: 126,000 (1,050 per lamp)
LED Expected Lifespan: 50,000+ Hours
Lamp Material: Aluminum
Mounting: Eyelet for hook mounting
Wiring: 1,200` 10/4 SOOW Cable, 5` Input Whip, 5` Output Whip, 10` Spacing Between Lamps
Cord Caps: L22-30P and L22-30C
Disconnect Intervals: Every 300`
Shipping Dimensions: 40" x 48" x 36"
