Larson Laser Distance Meter - Class 2 Red Laser Sensor - 550 Yards - 100 Hz - 1 mm Accuracy - No Contact
Larson Laser Distance Meter - Class 2 Red Laser Sensor - 550 Yards - 100 Hz - 1 mm Accuracy - No Contact
Made in the USA

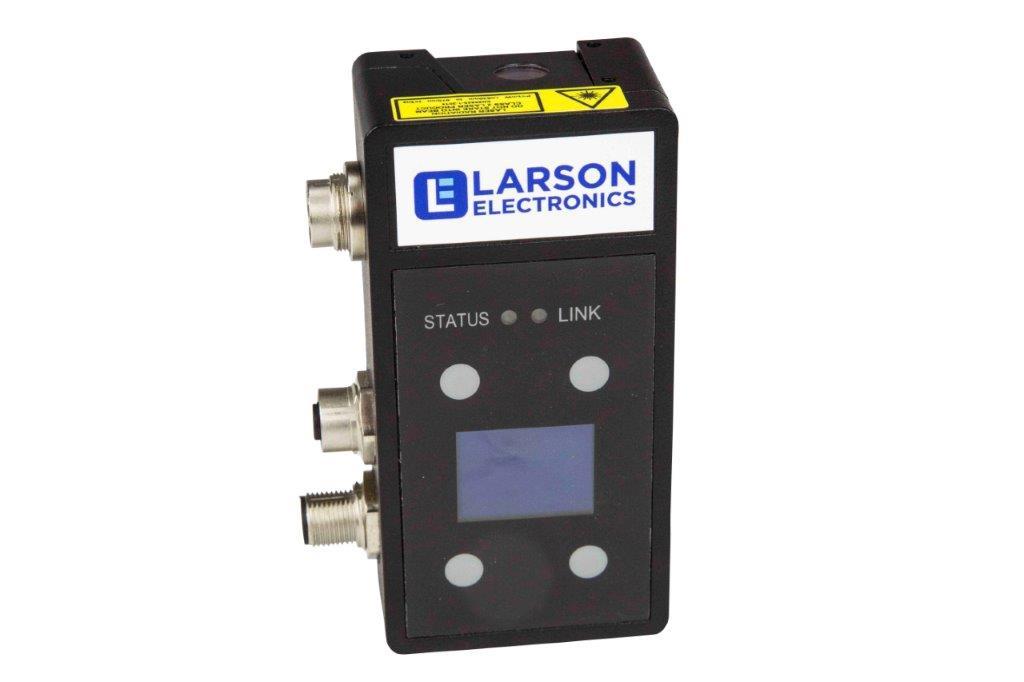

The Larson Electronics XLE-LSR-DST-222103 Laser Distance Meter provides no-contact distance measuring in industrial facilities and outdoor locations. Capable of measuring hot surfaces safely, the device features a Class 2 laser with a range of 1,640 feet. This unit operates on 10V DC to 30V DC and can be mounted securely on surfaces.
The XLE-LSR-DST-222103 is a robust laser measuring tool for industrial applications and hot surfaces. This Class 2 laser features a wavelength measurement of 635 nm, with less than 0.35 mrad divergence. Operating on 10V DC to 30V DC, the unit offers no-contact distance measuring with up to 1mm accuracy. The device is capable of measuring ranges up to 1,640 feet, using a measuring frequency of 100 Hz.
The XLE-LSR-DST-222103 is IP67 rated for waterproof protection in outdoor locations. Two status LEDs provide real-time notification of the unit`s status. Operators can engage the unit via 4 touch keys. Connectors on the laser sensor includes the following: (1) 12-pole M16, (1) 8-pole M12, (2) 5-pole M12.
Mounting:
This measuring device can be mounted on flat surfaces in various configurations. Three M6 fastening screws are available for completing mounts.
Applications:
Industrial facilities, surveying, distance measurements, rugged work sites, outdoor locations, warehouses, power plants and more.
Contact info@purilite.ca for more information about our custom options tailored to meet your specific industry needs.
Specifications
Unit Type:
Dimensions: 4.724" x 1.574" x 3.011"
Weight: 1.54 lbs
Voltage: 10V DC to 30V DC
Power Consumption: 5W to 15W (Heating Mode) @ 24V
Classification: Laser Class 2
Wavelength: 635 nm
Divergence: <0.35 mrad
Range: 4 in/.1m to 1,640 ft/500 m
Accuracy: ±0.039 in / 1 mm
Operating Temp: 40 °C to +60 °C
Mount: Surface
Connectors: (1) 12-pole M16, (1) 8-pole M12, (2) 5-pole M12
