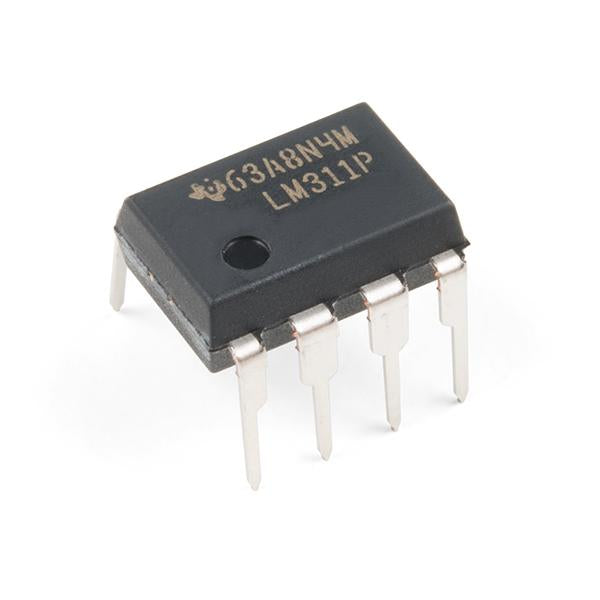

Differential Comparator - LM311

PuriLiteSKU: PL4-COM-13950
filler

Price:
Sale price$8.99

Description

The LM311 device is a single high-speed voltage comparator. This device is designed to operate from a wide range of power-supply voltages, including ±15-V supplies for operational amplifiers and 5-V supplies for logic systems. The output levels are compatible with most TTL and MOS circuits.

It is capable of driving lamps or relays and switching voltages up to 50 V at 50 mA. All inputs and outputs can be isolated from system ground. The outputs can drive loads referenced to ground, VCC+ or VCCˆ’. Offset balancing and strobe capabilities are available, and the outputs can be wire-OR connected. If the strobe is low, the output is in the off state, regardless of the differential input.

**Features:**

* Fast Response Time: 165 ns
* Strobe Capability
* Maximum Input Bias Current: 300 nA
* Maximum Input Offset Current: 70 nA
* Can Operate From Single 5-V Supply

**Documents:**

* [Datasheet](http://www.ti.com/lit/ds/slcs007k/slcs007k.pdf)
