EasyVR 3 Plus Shield for Arduino

Do you make time to talk to your Arduino? Maybe you should! The EasyVR 3 Plus Shield is a voice recognition shield for Arduino boards integrating an EasyVR module. This kit includes the EasyVR 3 Plus Module, the Arduino Shield Adapter, microphone, and headers. With all of these parts, everything has been provided to you to get up and running in a short amount of time with minimal soldering!

EasyVR 3 Plus is a multi-purpose speech recognition module designed to add versatile, robust and cost effective speech recognition capabilities to almost any application. The EasyVR 3 Plus module can be used with any host with a UART interface powered at 3.3V “ 5V, such as PIC and Arduino boards. Some application examples include home automation, such as voice-controlled light switches, locks, curtains or kitchen appliances, or adding œhearing to the most popular robots on the market.

**Note:** Please be aware that the EasyVR 3 Plus Shield for Arduino does not come pre-assembled and will require some soldering and assembly before operation.

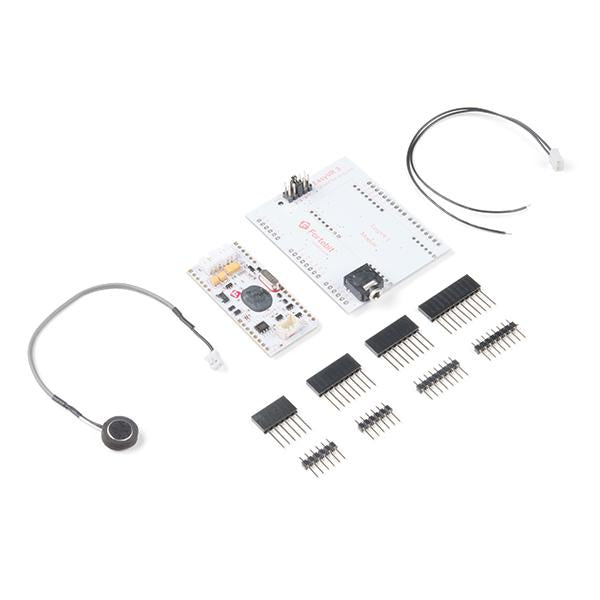

**Includes:**

* EasyVR 3 Plus Module
* EasyVR Shield 3
* Wired Microphone
* Speaker cable (Speaker not included)
* Header Set

**Features:**

* Up to 256 user-defined Speaker Dependent (SD) or Speaker Verification (SV) commands, that can be trained in ANY language, divided into maximum 16 groups (up to 32 SD or 5 SV commands each).
* A selection of 26 built-in Speaker Independent (SI) commands for ready-to-run basic controls, in the following languages:
* US English
* French
* German
* Italian
* Japanese
* Spanish
* Other SI commands freely downloadable from the Fortebit website (downloads section).
* SonicNet„¢ technology for wireless communications between modules or any other sound source (Audio CD, DVD, MP3 Player).
* Up to around 21 minutes of pre-recorded sounds or speech.
* Up to about 137 seconds of live message recording and playback.
* Real-time Lip-sync capability.
* DTMF tone generation.
* Differential audio output that directly supports 8„¦ speakers.
* Easy-to-use Graphical User Interface to program Voice Commands and audio.
* Standard UART interface (powered at 3.3V - 5V).
* Simple and robust documented serial protocol to access and program through the host board.
* Six General purpose I/O lines that can be controlled via UART commands.
* With the optional Quick T2SI Lite license, up to 28 custom Speaker Independent (SI) command vocabularies, with up to 12 commands each, for a total of 336 possible commands in the following languages:
* US English
* British English
* French
* German
* Italian
* Japanese
* Korean
* Mandarin
* Spanish
* Compatible with Arduino boards that have the 1.0 Shield interface (UNO R3) including, but not limited to:
* Arduino Zero
* Arduino Uno
* Arduino Mega
* Arduino Leonardo
* Arduino Due
* Supports 5V and 3.3V main boards through the IOREF pin (defaults to 5V if this pin is absent)
* Supports direct connection to the PC on main boards with a separate USB/Serial chip and a special software-driven œbridge mode on boards with only native USB interface, for easy access and configuration with the EasyVR Commander
* Enables different modes of serial connection and also flash updates to the embedded EasyVR module (through the Mode Jumper)
* Supports remapping of serial pins used by the Shield (in SW mode)
* Provides a 3.5mm audio output jack suitable for headphones or as a line out

**Documents:**

* [User Manual](https://cdn.sparkfun.com/assets/learn_tutorials/9/3/1/EasyVR-3-User-Manual-1.0.17.pdf)
* [EasyVR Commander](https://fortebit.tech/download/13195/) (35MB File)
* [Arduino Library](https://cdn.sparkfun.com/assets/a/f/c/d/2/EasyVR-Arduino-library-v1.11.1.zip)
* [Downloads Page](https://fortebit.tech/downloads/)
