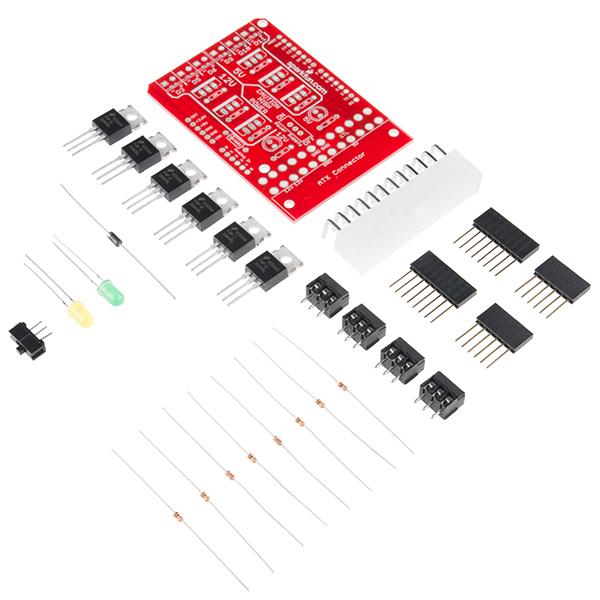

Power Driver Shield Kit

SparkFunSKU: PL4-DEV-10618
filler

Price:
Sale price$75.99
 更多支付选项

Description

This shield allows you to use a computer power supply (or other power source) to use your Arduino to switch high current. With RFP30N06LE MOSFETS, you can easily control a lot of current directly from your Arduino.

The board provides 6 PWM outputs via screw terminals. Check the datasheet for the MOSFET below for full specifications on how much current this board can handle.This board is a very easy way to start using MOSFETS for your next high current project.

A protection diode has been added to the power input of this version of the board.

**Note:** If you want to stack another shield on top of this one, you will want to double-up on the stackable headers to clear the MOSFETs.

**Documents:**

* [Schematic](http://cdn.sparkfun.com/datasheets/Dev/Arduino/Shields/PowerDriver-Shield-v13.pdf)
* [Eagle Files](http://cdn.sparkfun.com/datasheets/Dev/Arduino/Shields/PowerDriver-Shield-v13.zip)
* [Datasheet](http://www.sparkfun.com/datasheets/Components/General/RFP30N06LE.pdf) (RFP30N06L)
* [GitHub](https://github.com/sparkfun/Power_Driver_Shield_Kit/tree/V_1.3)
