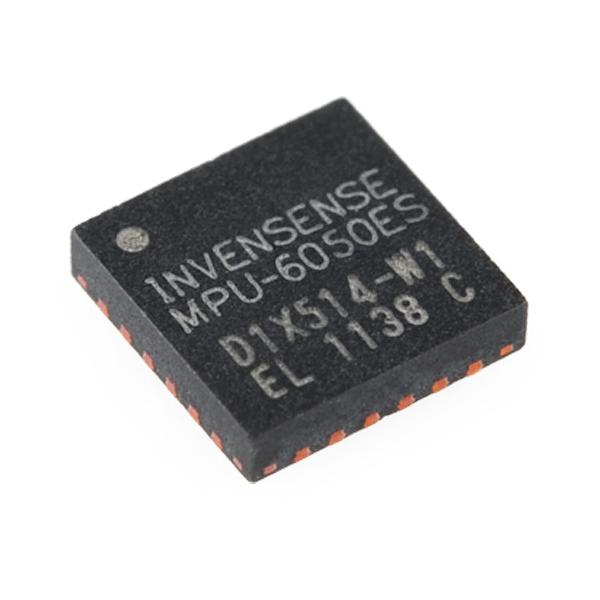

3-Axis Gyro/Accelerometer IC - MPU-6050

PuriLiteSKU: PL4-SEN-10937
filler

Price:
Sale price$45.99

Description

The MPU-6050 is a serious little piece of motion processing tech! By combining a MEMS 3-axis gyroscope and a 3-axis accelerometer on the same silicon die together with an onboard Digital Motion Processor„¢ (DMP„¢) capable of processing complex 9-axis MotionFusion algorithms, the MPU-6050 does away with the cross-axis alignment problems that can creep up on discrete parts. The parts integrated 9-axis MotionFusion algorithms can even access external magnetometers or other sensors through an auxiliary master I2C bus, allowing the devices to gather a full set of sensor data without intervention from the system processor.

For precision tracking of both fast and slow motions, the MPU-6050 features a user-programmable gyro full-scale range of ±250, ±500, ±1000, and ±2000°/sec (dps) and a user-programmable accelerometer full-scale range of ±2g, ±4g, ±8g, and ±16g.

**Features:**

* Digital-output of 6 or 9-axis MotionFusion data in rotation matrix, quaternion, Euler Angle, or raw data format
* Tri-Axis angular rate sensor (gyro) with a sensitivity up to 131 LSBs/dps and a full-scale range of ±250, ±500, ±1000, and ±2000dps
* Tri-Axis accelerometer with a programmable full scale range of ±2g, ±4g, ±8g and ±16g
* Reduced settling effects and sensor drift by elimination of board-level cross-axis alignment errors between accelerometers and gyroscopes
* Digital Motion Processing„¢ (DMP„¢) engine offloads complex MotionFusion, sensor timing synchronization and gesture detection
* Embedded algorithms for run-time bias and compass calibration. No user intervention required
* Digital-output temperature sensor
* Digital input on FSYNC pin to support video Electronic Image Stabilization and GPS
* Programmable interrupt supports gesture recognition, panning, zooming, scrolling, free fall interrupt, high-G interrupt, zero-motion detection, tap detection, and shake detection
* VDD Supply voltage range of 2.375V“3.46V; VLOGIC at 1.8V±5% or VDD
* On-chip timing generator with ±1% frequency variation over full temperature range
* 10,000g shock tolerant
* 4x4x0.9mm QFN

**Documents:**

* [Datasheet](http://cdn.sparkfun.com/datasheets/Components/General IC/PS-MPU-6000A.pdf)
* [Register Map](http://cdn.sparkfun.com/datasheets/Sensors/Accelerometers/RM-MPU-6000A.pdf)
