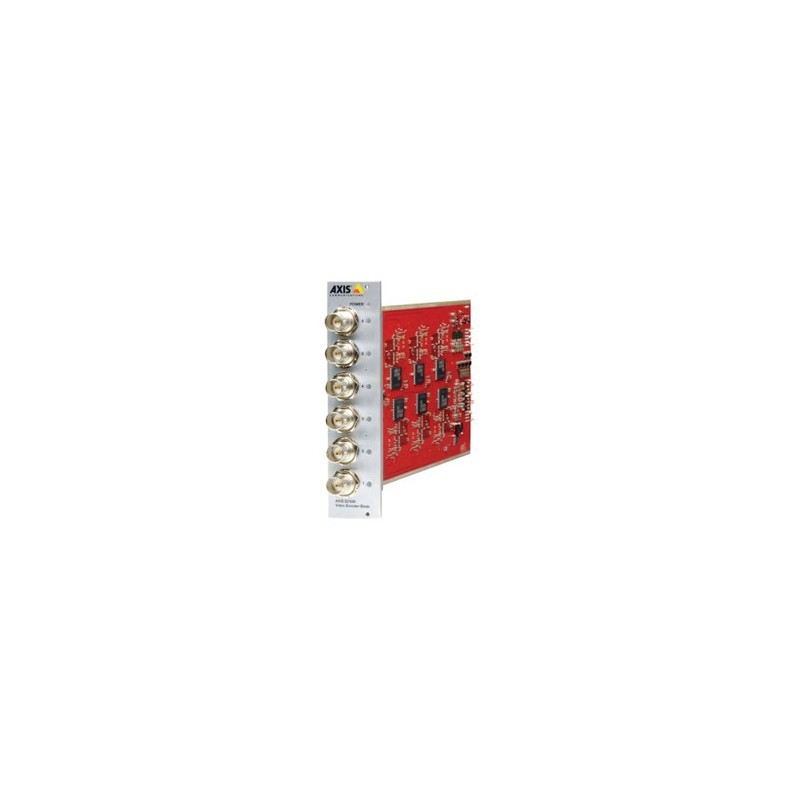

Axis Communications AXIS Q7436 Video Encoder Blade - Functions: Video Encoding, Video Compression, Video Streaming - 1.50 GB RAM - 720 x 576 - NTSC, PAL - Blade

Axis CommunicationsSKU: PL5-0584-001-TY7365-7331021008250-EN
filler

Price:
Sale price$1,640.99
 更多支付选项

Description

AXIS Q7436 Video Encoder Blade - Functions: Video Encoding, Video Compression, Video Streaming - 1.50 GB RAM - 720 x 576 - NTSC, PAL - Blade

High-performance, flexible 6-channel video encoder

AXIS Q7436 Video Encoder Blade is a high performance 6-channel solution offering outstanding performance and great flexibility. The video encoder blade enables a large number of analog cameras to be integrated into an IP-based, high-density video surveillance system, ideal for demanding locations such as airports, railway stations and city surveillance.

AXIS Q7436 fits perfectly into AXIS Q7920 Video Encoder Chassis, which is a rack mount encoder chassis with support for up to 84 analog cameras. The video encoder blade enables 6 analog video channels to be converted into high quality H.264 and Motion JPEG streams. AXIS Q7436 can deliver multiple, individually configurable video streams from each channel, at full frame rate in all resolutions.

It supports 60/50 frames per second, providing smooth video in high motion streams. AXIS Q7436 offers great image features such as reduced noise, enhanced sharp- ness and optimized contrast, allowing for even better image quality output.

AXIS Q7436 provides outstanding performance and in- telligent video capabilities, such as tampering alarm and motion detection, in addition to Axis Camera Applica- tion Platform applications.

The video encoder blade offers significant installation savings, by allowing PTZ control over the coaxial cable* in addition to the standard support for PTZ cameras using the serial ports.

Software Included AXIS Camera Companion
Limited Warranty 3 Year
Standard Memory 1.50 GB
Memory Technology RAM
Package Contents
  • Q7436 Video Encoder Blade
  • Installation Guide
  • Installation and Management Software CD
  • Windows Decoder User License
Certifications & Standards
    • EN 55022 Class B
    • EN 61000-3-2
    • EN 61000-3-3
    • EN 61000-6-1
    • EN 61000-6-2
    • EN 55024
    • FCC Part 15 Subpart B Class B
    • ICES-003 Class B
    • VCCI Class B
    • C-tick AS/NZS CISPR22
    • KCC KN22 Class B
    • IEC/EN/UL 60950-1
Functions Video Streaming
Video Encoding
Video Compression
Video Formats MPEG-4
AVC
H.264
MJPEG
Maximum Resolution 720 x 576
Maximum Frame Rate 60 fps
Analog Signal Yes
Video Signal Format NTSC
PAL
Composite Video Yes
Number of Composite Video Inputs 6
Composite Video Connector Type BNC
Weight (Approximate) 272.2 g
Form Factor Blade
Height 5" (127 mm)
Width 9.80" (248.92 mm)
Depth 1.20" (30.48 mm)
Product Type Video Encoder
Manufacturer Part Number 0584-001
Manufacturer Website Address http://www.axis.com
Manufacturer Axis Communications
Product Model Q7436
Product Name Q7436 Video Encoder Blade
Brand Name AXIS
