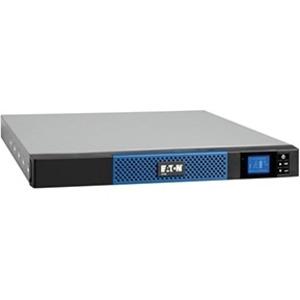

Eaton 5P1500R-L 1500VA Rack/Wall Mountable UPS - 1U Rack/Wall Mountable - 4 Minute Stand-by - 120 V AC, 100 V AC, 125 V AC Input - 120 V AC, 100 V AC, 125 V AC Output - 6 x NEMA 5-15R

EatonSKU: PL5-5P1500R-L-533DDK-EN
filler

Price:
Sale price$3,493.99

Description

Eaton 5P1500R-L 1500VA Rack/Wall Mountable UPS - 1U Rack/Wall Mountable - 4 Minute Stand-by - 120 V AC, 100 V AC, 125 V AC Input - 120 V AC, 100 V AC, 125 V AC Output - 6 x NEMA 5-15R

The Eaton 5P Rackmount UPS delivers reliable enterprise class backup power with an efficiency rating of up to 99%. The 5P's graphical LCD display allows you to view UPS status in a single glance and provides more available power than comparable UPSs. When paired with Intelligent Power Software Suite, the 5P allows you to seamlessly manage your connected equipment, even in virtualized environments.

Features
  • 5P rackmount compact models (16" deep) offer a more compact footprint than the standard 5P, maximum flexibility with two-post, four-post and wall-mount options and compatibility with all existing enclosures in the marketplace
  • Enables you to customize UPS settings, view load and power consumption through the graphical interactive LCD screen interface
  • Fully integrates with Intelligent Power Software Suite for continuous up time of servers and virtual machines. View demo
  • Conserves valuable rackmount space with compact 1U and 2U form factors
  • Extends battery service life by 50% with ABM Technology
  • Protects you with a three-year warranty, which includes the battery
Status Indicators
    LEDs:
    • Load protected
    • On battery
    • Fault
Limited Warranty 5 Year
Network (RJ-45) Yes
USB (HID Compliant) Port Yes
Package Contents
  • 5P1500R-L 1500VA Rack/Wall Mountable UPS
  • 6-foot RS-232 Cable
  • USB Cable
Environmentally Friendly Yes
Environmental Certification RoHS
Plug/Connector Type NEMA 5-15P
Receptacle Type NEMA 5-15R
Receptacle Detail 6 x NEMA 5-15R
Input Voltage 100 V AC
125 V AC
125 V AC
125 V AC
120 V AC
120 V AC
120 V AC
100 V AC
100 V AC
Output Voltage 100 V AC
120 V AC
125 V AC
Load Capacity 1.50 kVA/1.10 kW
Input Voltage Range 89 V AC 151 V AC
Output Frequency 60 Hz
Input Frequency 60 Hz
Battery Chemistry Lithium Iron Phosphate (LiFePO4)
Backup/Run Time (Half Load) 11 Minute
Backup/Run Time (Full Load) 4 Minute
Replaceable Battery Yes
Sound Emission 45 dB
Maximum Operating Temperature 104°F (40°C)
Maximum Operating Elevation 9842.52 ft (3000000 mm)
Storage Relative Humidity 0% - 90%
Storage Temperature 5°F (-15°C) - 122°F (50°C)
Weight (Approximate) 16.51 kg
Form Factor Rack/Wall Mountable
Rack Height 1U
Height 1.70" (43.20 mm)
Width 17.24" (438 mm)
Depth 21.81" (554 mm)
Product Type Line-interactive UPS
Manufacturer Part Number 5P1500R-L
Manufacturer Website Address http://www.eaton.com/EatonCom/Markets/NorthAmerica
Manufacturer Eaton Corporation
Product Model 5P1500R-L
Product Name 5P1500R-L 1500VA Rack/Wall Mountable UPS
Product Series 5P
Brand Name Eaton
