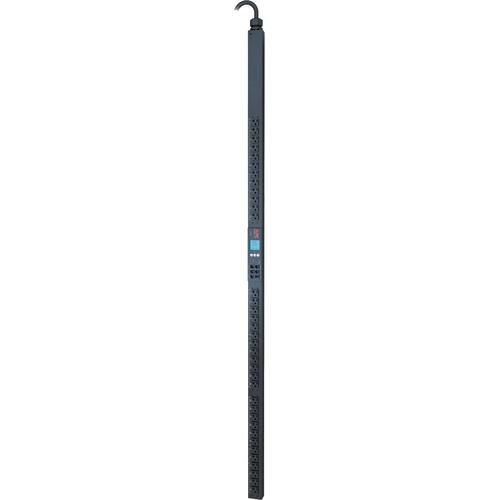

Schneider Electric APC by Schneider Electric Metered Rack PDU - Metered - NEMA L21-20P - 36 x NEMA 5-20R - 120 V AC - 5.76 kW - 0U - Horizontal/Vertical - Rack-mountable

Schneider ElectricSKU: PL5-AP8862-26216Y-0731304307488-EN
filler

Price:
Sale price$948.99

Description

APC by Schneider Electric Metered Rack PDU - Metered - NEMA L21-20P - 36 x NEMA 5-20R - 120 V AC - 5.76 kW - 0U - Horizontal/Vertical - Rack-mountable

APC Metered Rack Power Distribution Units (PDUs) provide active metering to enable energy optimization and circuit protection. User-defined alarm thresholds mitigate risk with real-time local and remote alerts to warn of potential circuit overloads. Metered Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership. Metered Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers. Users can access and configure Metered Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity, and Energy Efficiency.

Management
    • Web
    • SNMP
    • Telnet
Limited Warranty 2 Year
Package Contents
  • Metered Rack PDU
  • Installation Guide
  • Rack Mounting Brackets
  • Safety Guide
  • Serial Configuration Cable
Certifications & Standards
    • cUL Listed
    • FCC Part 15 Class A
    • ICES-003
    • UL 60950-1
    • UL Listed
Environmentally Friendly Yes
Environmental Certification RoHS
REACH
Weight (Approximate) 6.03 kg
Color Black
Mount Type Rack-mountable
Rack Height 0U
Cord Length 6 ft
Height 70.50" (1790.70 mm)
Width 2.18" (55.37 mm)
Depth 1.72" (43.69 mm)
Number of Cord/Cable 1
Mounting Orientation Horizontal/Vertical
Circuit Breaker Yes
Input Voltage 120 V AC
Output Voltage 230 V AC
Input Current 20 A
Power Rating (VA) 5.76 kVA
Protection Type Circuit Protection
Plug/Connector Type NEMA L21-20P
Receptacle Type NEMA 5-20R
PDU Type Metered
Receptacle Detail 36 x NEMA 5-20R
Product Type PDU
Manufacturer Part Number AP8862
Manufacturer Website Address http://www.schneider-electric.com
Manufacturer Schneider Electric SA
Product Name Metered Rack PDU
Brand Name APC by Schneider Electric
