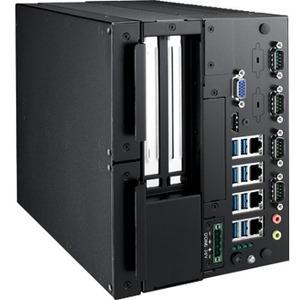

Advantech ARK-3530F Barebone System Desktop - Socket H4 LGA-1151 - 1 x Processor Support - Intel C236 Chipset - 32 GB DDR4 SDRAM DDR4-2133/PC4-17000 Maximum RAM Support - 2 Total Memory Slots - Serial ATA/600 - Intel HD Graphics 630 Integrated - 2 2.5" B

AdvantechSKU: PL5-ARK-3530F-00A1-523VVP-EN
filler

Price:
Sale price$1,607.99

Description

Advantech ARK-3530F Barebone System Desktop - Socket H4 LGA-1151 - 1 x Processor Support - Intel C236 Chipset - 32 GB DDR4 SDRAM DDR4-2133/PC4-17000 Maximum RAM Support - 2 Total Memory Slots - Serial ATA/600 - Intel HD Graphics 630 Integrated - 2 2.5" Bay(s) - HDMI - Processor Support (Xeon, Core i3, Core i5, Core i7) - Gigabit Ethernet - Windows 10, Windows 7, Linux Supported Operating System - 8 USB 3.0 Port(s)

ARK-3000 Series: High Performance Fanless Embedded Computers

ARK-3000 series features high performance computing Intel Core i and Xeon, mini PCIe expansion cards, multi IO expansions, and wide temperature range, being ideal for automation system, machine automation, factory automation, IoT platforms, and cabinet integration.

Features
  • Support Intel® Xeon® / 6th & 7th Gen. Core™ i3/i5/i7 processor
  • Triple independent display: VGA + HDMI + Optional Display
  • DDR4 SO-DIMM memory support up to 32 GB
  • 9-36V power module compatible with all-in-one ordering
  • Optional modular design for 2.5" hard drive bays: internal /removable (support up to 4 sets)
  • Advantech iDoor module compatible
  • Advantech EMIO miniPCIe module compatible with all-in-one ordering
Controller Type Serial ATA/600
Ethernet Technology Gigabit Ethernet
Chipset Manufacturer Intel
Chipset Model C236
Number of Internal 2.5" Bays 2
Number of Total Expansion Bays 2
Number of Total Expansion Slots 2
Operating System Supported Windows 10
Linux
Windows 7
Graphics Controller Manufacturer Intel
Graphics Controller Model HD Graphics 630
Graphics Memory Technology DDR4 SDRAM
Graphics Memory Accessibility Shared
HDMI Yes
Total Number of USB Ports 8
Number of USB 3.0 Ports 8
Number of VGA Ports 1
Weight (Approximate) 5.87 kg
Form Factor Desktop
Height 8.07" (205 mm)
Width 6.16" (156.50 mm)
Depth 9.06" (230 mm)
Maximum Memory Supported 32 GB
Memory Technology DDR4 SDRAM
Memory Standard DDR4-2133/PC4-17000
Number of Total Memory Slots 2
Package Contents
  • ARK-3530F Barebone System
  • User Manual (Simplified Chinese)
  • China RoHS
  • Desk Mounting Kit
Environmentally Friendly Yes
Environmental Certification China RoHS
RoHS
Processor Supported Core i3
Core i7
Core i5
Xeon
Processor Socket Socket H4 LGA-1151
Number of Processors Supported 1
Product Type Barebone System
Manufacturer Part Number ARK-3530F-00A1
Manufacturer Website Address http://www.advantech.com
Packaged Quantity 1
Manufacturer Advantech Co., Ltd
Product Model ARK-3530F
Product Name ARK-3530F Barebone System
Brand Name Advantech
