Tripp Lite B024-DUA8-DL DVI/USB 8-Port KVM Switch - 8 Computer(s) - 1 Local User(s) - 2560 x 1600 - 11 x USB - 9 x DVI1 x VGA - Rack-mountable, Desktop - 1U - TAA Compliant

Tripp LiteSKU: PL5-B024-DUA8-DL-2169FB-0037332205124-EN
filler

Price:
Sale price$1,484.99

Description

Tripp Lite B024-DUA8-DL DVI/USB 8-Port KVM Switch - 8 Computer(s) - 1 Local User(s) - 2560 x 1600 - 11 x USB - 9 x DVI1 x VGA - Rack-mountable, Desktop - 1U - TAA Compliant

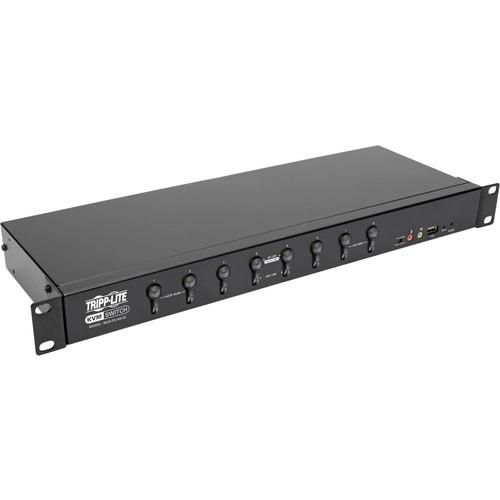

Tripp Lite's B024-DUA8-DL DVI/USB KVM Switch eases multi-server management in data centers, server rooms and other high-density environments. This premium rack-mount KVM switch provides complete control of up to eight connected computers from a single DVI monitor, USB keyboard and USB mouse. By cascading up to three levels of KVM switches, you can control up to 512 computers at the same time.

Recommended for IT managers needing centralized access to a variety of digital and analog servers, this DVI/USB KVM switch also supports a VGA display when connected to a DVI to VGA adapter (such as Tripp Lite's P556-Series).

The B024-DUA8-DL's DVI-I dual-link connector supports digital video resolutions up to 2560 x 1600, including 1080p, and analog video resolutions up to 2048 x 1536. The multi-view installation feature lets you stack up to four KVM switches for connecting computers with up to four DVI outputs and displaying video on up to four console monitors, giving you flexibility in video output. A 3.5 mm microphone jack provides audio input to connected computers. A 3.5 mm audio jack provides 2.1-channel sound to connected speakers.

The OSD presents a text-based interface in eight different languages and allows backup of KVM configuration and user profile information. Dual-tier password protection enhances security for an administrator and up to four users. A DB9 cable is included for firmware upgrades that keep the KVM switch up to date with the latest technology. Easy front-panel access to USB 2.0 hub ports allows quick connection of two USB devices, such as flash drives and printers.

The B024-DUA8-DL offers a comprehensive, cost-effective management solution that installs in 1U of rack space. Because compatibility is based on common hardware standards rather than system software dependencies, almost any platform can be accommodated. This KVM switch is compatible with all major operating systems, and upgradeable firmware fine-tunes compatibility with emerging standards.

Features

Control 8 Computers + Audio from a Single DVI Monitor, Keyboard and Mouse

  • 8-port KVM switch recommended for IT managers needing centralized access to a variety of digital and analog servers
  • Switch between connected computers via front-panel buttons, keyboard hotkeys or OSD
  • Supports digital video resolutions up to 2560 x 1600 (including 1080p) and analog video resolutions up to 2048 x 1536
  • Supports 2.1-channel surround sound with full bass response
  • Also supports VGA display when connected to a DVI to VGA adapter

Connect Up to 512 Computers to One Original Console

  • Expand the number of controlled computers by cascading up 3 levels of KVM switches

Multi-View Installation

  • Allows stacking of up to 4 KVMs for connecting computers with up to 4 DVI outputs and displaying video on up to 4 console monitors

Independent USB 2.0 Peripheral Sharing

  • 2-port front-panel USB 2.0 hub allows sharing of devices (printers, hard drives, scanners, webcams) between connected computers

Multilingual On-Screen Display

  • OSD supports English, German, Japanese, Traditional Chinese, Simplified Chinese, Spanish, Russian and French
  • Text-based interface offers direct access to every connected computer
  • Backs up and restores KVM configuration and user profile info
Features
  • Cascade up to 3 levels and control up to 512 computers at once
  • Multi-view mode-stack up to 4 units, display up to 4 monitors
  • On-Screen Display (OSD) in 8 languages for international use
  • Dual-tier password protection for superior security
  • Upgradable firmware to ensure up-to-date operation
Input Voltage Range 120 V AC - 230 V AC
Maximum Video Resolution 2560 x 1600
Limited Warranty 3 Year
Maximum Operating Distance 15 ft (4572 mm)
Number of Computers Supported 8
Number of Local Users Supported 1
Package Contents
  • B024-DUA8-DL DVI/USB 8-Port KVM Switch
  • 2 x DVI/USB KVM cable kits, 6 ft.
  • External Power Supply w/NEMA 1-15P Plug And 5 ft. Cord (Input: 100-240V, 50/60 Hz, 0.5A; Output: 5.3V 2.4A)
  • RJ11 to DB9 Firmware Upgrade Cable, 6 ft.
  • Grounding Wire
  • Rack-Mounting Hardware
  • Rubber Feet
  • Owner's Manual
Country of Origin Taiwan
Environmentally Friendly Yes
Environmental Certification RoHS
TAA Compliant Yes
USB Yes
DVI Yes
VGA Yes
Number of USB Ports 11
Number of VGA Ports 1
Number of DVI Ports 9
Product Type KVM Switchbox
Manufacturer Part Number B024-DUA8-DL
Manufacturer Website Address http://www.tripplite.com
Manufacturer Tripp Lite
Product Model B024-DUA8-DL
Product Name B024-DUA8-DL DVI/USB 8-Port KVM Switch
Brand Name Tripp Lite
Weight (Approximate) 2.81 kg
Form Factor Rack-mountable
Desktop
Rack Height 1U
Height 1.73" (43.94 mm)
Width 17.20" (436.88 mm)
Depth 6.30" (160.02 mm)
