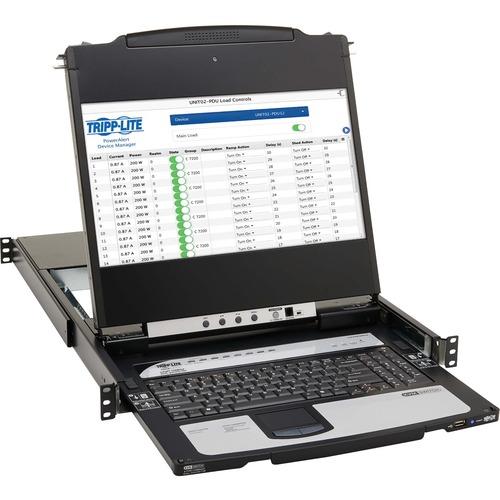

Tripp Lite B030-DP08-17DIP 8-Port DisplayPort KVM Switch Console - 8 Computer(s) - 17" LCD - Full HD - 1920 x 1080 - 16:9 - 10 x USB - Keyboard - TouchPad - 1U High - PC, Mac, Unix, Linux - Metal - Black - TAA Compliant

Tripp LiteSKU: PL5-B030-DP08-17DIP-943XXT-0037332258700-EN
filler

Price:
Sale price$6,185.99

Description

Tripp Lite B030-DP08-17DIP 8-Port DisplayPort KVM Switch Console - 8 Computer(s) - 17" LCD - Full HD - 1920 x 1080 - 16:9 - 10 x USB - Keyboard - TouchPad - 1U High - PC, Mac, Unix, Linux - Metal - Black - TAA Compliant

Connects 8 DisplayPort Computers or Servers to a Single Monitor, Keyboard and Mouse
This NetDirector® DisplayPort KVM switch combines a rack-mountable keyboard, 17-inch LCD, touchpad, built-in IP remote access and eight DisplayPort inputs into a compact housing that occupies only 1U of rack space. Control, boot and reboot up to eight DisplayPort computers or servers at the same time remotely 24/7. No adapters are needed for connecting DisplayPort-enabled equipment.

Offers Both Local and Remote Control Options
From across the room, down the street or halfway around the globe, you can access and control up to eight connected computers or servers from any computer via LAN, WAN or Internet. Easy to install and use, the B030-DP08-17DIP lets you handle complex problems without needing to be on-site, which saves money and time. It supports IPv4, IPv6, Link Local IPv6 Address and IPv6 Stateless Auto configuration protocols. You may set the IP address manually or have it automatically assigned via DHCP server (the default method). AP Windows- and Java non-browser client applications allow the KVM switch to be remotely accessed via the network without a browser.

Saves Valuable Space and Keeps Your Operating Costs Low
All connected DisplayPort computers or servers share a single monitor, keyboard and mouse, which saves space in your rack or workspace. DDC emulation allows each computer's settings to adjust automatically for optimal screen output. Eliminating the cost of buying monitors, adapters, keyboards and mice for all eight connected devices keeps your TCO (total cost of ownership) low.

17 in. LCD Supports Crystal-Clear 1080p Video
The dual-rail B030-DP08-17DIP supports high-definition video resolutions up to 1920 x 1080 (1080p) at 60 Hz. The wide display flips up to provide access to connected computers, making multitasking easier and more convenient, and folds down to prevent the console from blocking adjacent rack equipment when not in use. The LCD and the keyboard/touchpad are on separate rails, so the LCD can remain open while the keyboard/touchpad is stored out of the way, keeping the rack aisle clear.

Switching Between Computers Is Fast and Easy
Use the on-console push buttons, keyboard hotkey commands or multi-lingual local console On-Screen Display (OSD) to quickly toggle between connected computers. You can also use the Auto Scan feature to scan all connected computers in five-second intervals automatically. Orange LEDs indicate which computer is currently selected. Computers or servers can be quickly added or removed without having to power down the KVM switch.

Multi-Level Password Security Keeps Your Private Data Private
The B030-DP08-17DIP offers three levels of password protection (super administrator, administrator and user) to prevent unauthorized persons from gaining access to connected servers/computers. Up to 64 users can be authorized and 32 remote users logged on concurrently. Remote authentication support is provided via RADIUS, LDAP, LDAPS and MS Active Directory. The B030-DP08-17DIP also incorporates advanced encryption technologies: 56-bit DES, 168-bit 3DES, 256-bit AES, 128-bit RC4, 128-bit SSL and 1024-bit RSA.

Features
  • Allows remote access of computers from anywhere 24/7 via LAN, WAN or Internet
  • 17 in. LCD with wide display supports HD video resolutions up to 1920 x 1080 @ 60 Hz
  • Dual-rail design allows LCD to stay open while keyboard/touchpad slides into the rack
  • Multiple levels of password protection prevent unauthorized access to servers
  • Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
  • 1-year limited warranty
Limited Warranty 1 Year
Keyboard Yes
Pointing Device Type TouchPad
USB Yes
Number of USB Ports 10
DisplayPort Yes
KVM Switch Yes
Number of Computers Supported 8
Device Type LCD Rack Console
Package Contents
  • B030-DP08-17DIP 8-Port DisplayPort KVM Switch Console
  • 2 x DisplayPort cables, 6 ft.
  • 2 x USB 2.0 A/B cables, 6 ft.
  • RJ11 firmware upgrade cable
  • C13 to NEMA 5-15P Power Cord
  • Grounding Wire
  • CD with Owner's Manual
  • Quick Start Guide
Platform Supported Mac
PC
Linux
Unix
Country of Origin Taiwan
Environmentally Friendly Yes
Environmental Certification REACH
RoHS
TAA Compliant Yes
Aspect Ratio 16:9
Screen Resolution 1920 x 1080
Screen Size 17"
Screen Mode Full HD
Display Screen Type LCD
Material Metal
Weight (Approximate) 14.06 kg
Color Black
Height 1.73" (43.94 mm)
Width 18.90" (480.06 mm)
Depth 26.77" (679.96 mm)
Product Type LCD Rack Console
Manufacturer Part Number B030-DP08-17DIP
Manufacturer Website Address http://www.tripplite.com
Manufacturer Tripp Lite
Product Model B030-DP08-17DIP
Product Name B030-DP08-17DIP 8-Port DisplayPort KVM Switch Console
Brand Name Tripp Lite
