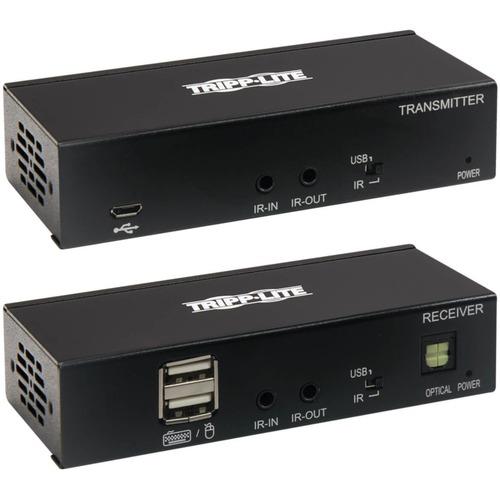

Tripp Lite KVM Extender - 2 Computer(s) - 230 ft (70104 mm) Range - 4K - 3840 x 2160 Maximum Video Resolution - 2 x Network (RJ-45) - 5 x USB - 2 x HDMI - 120 V AC, 230 V AC Input Voltage - Wall Mountable - TAA Compliant

Tripp LiteSKU: PL5-B127A-1A1-BCBH-646A2K-0037332258663-EN
filler

Price:
Sale price$457.99

Description

Tripp Lite KVM Extender - 2 Computer(s) - 230 ft (70104 mm) Range - 4K - 3840 x 2160 Maximum Video Resolution - 2 x Network (RJ-45) - 5 x USB - 2 x HDMI - 120 V AC, 230 V AC Input Voltage - Wall Mountable - TAA Compliant

USB-C to HDMI Extender Kit Ideal for Digital Signage in Schools, Restaurants and Lecture Halls
This complete transmitter and receiver system is recommended for video presentations in conference rooms, schools, trade shows, meeting facilities, houses of worship, retail settings, hotels and other digital signage applications where the source and display are farther apart than conventional A/V cables allow.

Supports USB DisplayPort Alternate Mode for Converting Audio/Video Signals
By connecting a USB-C cable to a source device that supports DisplayPort Alt Mode, you can output 4K video and digital audio to an HDMI monitor, television or projector without installing special software drivers.

Extends a 4K A/V Transmission up to 230 ft....or More
The B127A-1A1-BCBH extends 4K signals from a USB-C source device to an HDMI display up to 230 feet away via user-supplied Cat6 cabling. By adding a Tripp Lite B127A-010-H HDMI repeater or B127A-110-BH transceiver (sold separately) to the application, you can extend the signal up to 400 or 460 feet, respectively.

Dip Switch Extends Your Choice of Either USB or IR.
The DIP switches on both the transmitter and receiver can be adjusted to let you choose from the USB 1.1 or bi-directional IR functions. Choose to either control the source device via keyboard and mouse or IR remote control from the display end of the installation. Only one function can be extended at a time.

Transmits Crystal-Clear 4K Video with Multi-Channel Audio and 4:4:4 Color
The B127A-1A1-BCBH supports Ultra HD resolutions up to 3840 x 2160 (4K x 2K) at 60 Hz, as specified by HDMI 2.0, with full, rich uncompressed DTS-HD, Dolby TrueHD and 7.1-channel digital audio. HDCP 2.2 compliance allows you to stream 4K Amazon and Netflix content with no complications. This extender kit also supports 4:4:4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor. Built-in equalization allows you to fine-tune the image quality at the remote display.

Local HDMI Port on Transmitter Supports 4K @ 60 Hz Resolution
To monitor the video signal being extended to the receiver, connect a 4K display to the transmitter's local HDMI port with a user-supplied HDMI cable. This port does not support multi-resolution capabilities, so the connected monitor must also support 4K/60 Hz to function properly.

Built-In PoC Technology Provides Power to Avoid Bulky External Power Bricks
After you connect the included external power supply to either the transmitter or receiver, Power over Cable (PoC) technology powers the opposite unit over Cat6 cable. LEDs on both the transmitter and receiver will light up to indicate the system is receiving power and a signal is being transmitted. PoC lets you avoid the hassle of a bulky power brick and gives you the freedom to place one unit where needed without worrying about finding a nearby AC outlet.

PD 3.0 Charging Port Powers the Source Device to Maintain a Clear Signal
The USB-C Power Delivery port provides up to 20V 5A (90W, with 10W dedicated to the unit's power reserve) for powering the connected source device when using an E-Mark USB-C cable (such as Tripp Lite's U040-C13-C-5A). With a non-E-Mark cable, the USB-C PD 3.0 port provides up to 20V 3A (50W, with 10W to the power reserve). The other USB-C port connects the transmitter to the source.

Features
  • Supports 4K @ 60 Hz video resolutions (4:4:4) as specified in HDMI 2.0
  • Power over Cable (PoC) technology provides power to either end via Cat6 cable
  • USB-C PD 3.0 port charges source device to avoid battery drain and untimely shutdowns
  • DIP switch selection allows bi-directional IR or USB function for controlling the source
  • Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
  • 1-year limited warranty
Limited Warranty 1 Year
Maximum Video Resolution 3840 x 2160
Graphic Mode 4K
Connectivity Technology Wired
Maximum Operating Distance 230 ft (70104 mm)
Number of Computers Supported 2
Device Type KVM Extender
Package Contents
  • 1 x Transmitter
  • 1 x Receiver
  • External power supply (Input: 100-240V, 50/60 Hz, 0.6A; Output: 24V 1A)
  • 4 x International plug adapters (North America, Europe, U.K. and Australia)
  • Mounting Hardware
  • Owner's Manual
Environmentally Friendly Yes
Environmental Certification REACH
RoHS
TAA Compliant Yes
Color Black
Form Factor Wall Mountable
Transmitter Height 1.06" (27 mm)
Transmitter Width 4.53" (115 mm)
Transmitter Depth 2.46" (62.40 mm)
Receiver Height 1.06" (27 mm)
Receiver Width 4.53" (115 mm)
Receiver Depth 2.46" (62.40 mm)
Transmitter Weight (Approximate) 453.6 g
Receiver Weight (Approximate) 453.6 g
Input Voltage 230 V AC
120 V AC
Frequency 50 Hz
60 Hz
Input Voltage Range 100 V AC - 240 V AC
Product Type KVM Extender
Manufacturer Part Number B127A-1A1-BCBH
Manufacturer Website Address http://www.tripplite.com
Manufacturer Tripp Lite
Product Name KVM Extender
Brand Name Tripp Lite
USB Yes
HDMI Yes
Number of HDMI Ports 2
Number of Network (RJ-45) Ports 2
Network (RJ-45) Yes
Number of USB Ports 5
