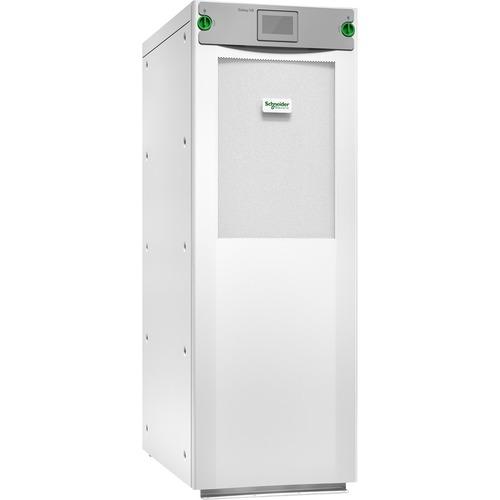

Schneider Electric APC by Schneider Electric Galaxy VS 25kVA Tower UPS - Tower - 7.90 Minute Stand-by - 200 V AC, 208 V AC, 220 V AC Input - 200 V AC, 208 V AC, 220 V AC Output

Schneider ElectricSKU: PL5-GVSUPS25KB4FS-738JJJ-EN
filler

Price:
Sale price$23,327.99

Description

APC by Schneider Electric Galaxy VS 25kVA Tower UPS - Tower - 7.90 Minute Stand-by - 200 V AC, 208 V AC, 220 V AC Input - 200 V AC, 208 V AC, 220 V AC Output

Highly efficient 20 to 100 kW (480 V), 10 to 150 kW (400 V), and 10 to 50 kW (208 V) 3-phase UPS for edge, small, and medium data centers and other business-critical applications.

Galaxy VS is a highly efficient, modular, easy-to-deploy 20 to 100 kW (480 V), 10 to 150 kW (400 V), and 10 to 50 kW (208 V), three-phase uninterruptible power supply that delivers top performance for edge, small, and medium data centers, as well as critical infrastructure in commercial and industrial facilities. Its compact design, high-density technology, N+1 redundancy, and fault-tolerant architecture maximize availability, operational efficiency, and critical load protection, while minimizing total cost of ownership. Thanks to patented technologies, this UPS delivers up to 97% efficiency in normal operating mode and up to 99% in ECOnversion mode, equivalent to 66% higher energy savings. Galaxy VS is EcoStruxure Ready to give you peace of mind anytime, anywhere. Smart modular batteries integrated in the UPS cabinet optimize footprint and ensure critical loads have highly predictable runtimes. Start-up service is included to optimize your system's performance, quality, and safety. With its robust design and industry-leading performance, Galaxy VS is the ideal backbone for your critical infrastructure.

Limited Warranty 1 Year
Network Management SNMP/Modbus Remote Monitoring
SNMP/HTTP Remote Monitoring
Package Contents
  • Galaxy VS 25kVA Tower UPS
  • Dust Filter
  • Installation Guide
  • Integrated Network Management
  • Power Modules
  • Start-Up Service
  • Battery Modules
Software Included EcoStruxure
Weight (Approximate) 460 kg
Form Factor Tower
Height 58.46" (1484.88 mm)
Width 20.51" (520.95 mm)
Depth 33.35" (847.09 mm)
Battery Chemistry Lead Acid
Battery Capacity 9000 mAh
Number of Batteries 2
Backup/Run Time (Full Load) 7.90 Minute
Battery Characteristics Sealed
DC System Voltage 480 V DC
Input Voltage 220 V AC
200 V AC
208 V AC
Output Voltage 220 V AC
208 V AC
200 V AC
Load Capacity 25 kVA/25 kW
Waveform Type Sine Wave
Input Voltage Range 177 V AC - 239 V AC
Output Frequency 60 Hz
Input Frequency 70 Hz
Sound Emission 61 dB(A)
Thermal Dissipation 5950 BTU/h
Maximum Operating Temperature 104°F (40°C)
Maximum Operating Elevation 3229.33 ft (984300 mm)
Maximum Storage Elevation 9842.52 ft (3000000 mm)
Storage Relative Humidity 10% - 80%
Storage Temperature 5°F (-15°C) - 104°F (40°C)
Product Type Dual Conversion Online UPS
Manufacturer Part Number GVSUPS25KB4FS
Manufacturer Website Address http://www.schneider-electric.com
Manufacturer Schneider Electric SA
Product Name Galaxy VS 25kVA Tower UPS
Product Line Galaxy VS
Brand Name APC by Schneider Electric
Application/Usage Data Center
Critical System
Business
Commercial
Industrial
Phase Three Phase
Transfer Time 0 ns
