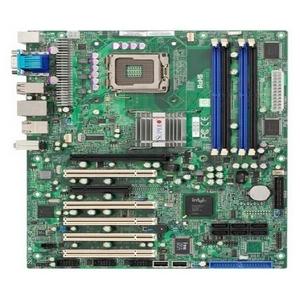

Super Micro Supermicro C2SBC-Q Desktop Motherboard - Intel Chipset - Socket T LGA-775 - ATX - 8 GB DDR2 SDRAM Maximum RAM - DDR2-800/PC2-6400, DDR2-667/PC2-5300 - 4 x Memory Slots - Gigabit Ethernet - 6 x SATA Interfaces

Super Micro Supermicro C2SBC-Q Desktop Motherboard - Intel Chipset - Socket T LGA-775 - ATX - 8 GB DDR2 SDRAM Maximum RAM - DDR2-800/PC2-6400, DDR2-667/PC2-5300 - 4 x Memory Slots - Gigabit Ethernet - 6 x SATA Interfaces

常规价格 $274.99 CAD
常规价格 促销价 $274.99 CAD
促销 售罄
结账时计算的运费

Supermicro C2SBC-Q Desktop Motherboard - Intel Chipset - Socket T LGA-775 - ATX - 8 GB DDR2 SDRAM Maximum RAM - DDR2-800/PC2-6400, DDR2-667/PC2-5300 - 4 x Memory Slots - Gigabit Ethernet - 6 x SATA Interfaces

C2SBC-Q Desktop Board is designed with the utmost attention to detail to provide you with the highest standards in quality and performance.

Gigabit Ethernet Yes
Sound Controller Manufacturer Realtek
Sound Controller Model ALC883
Audio Channels 5.1
Form Factor ATX
Width 12" (304.80 mm)
Depth 9.60" (243.84 mm)
Additional Information

    BIOS Features:

    • Plug and Play (PnP)
    • DMI 2.3
    • PCI 2.2
    • ACPI 1.0 / 2.0
    • USB Keyboard support
    • SMBIOS 2.3

    CD Utilities:

    • BIOS flash upgrade utility
    • Drivers and software for Intel Q35 chipset utilities
Package Contents
  • C2SBC-Q Desktop Board
  • 1 x Motherboard Manual
  • 1 x ATA 66/100 IDE LP Cable
  • 6 x SATA Cable (2Ft.)
  • 1 x CD
  • 1 x I/O Shield for C2SBC-Q
Environmentally Friendly Yes
Environmental Certification RoHS
Number of PCI Slots 5
Number of Total Expansion Slots 7
Number of PCI Express x4 Slots 1
Number of PCI Express x16 Slots 1
Total Number of PCI Express Slots 2
Number of IDE Interfaces 1
Number of SATA Interfaces 6
Total Number of Onboard USB Ports 4
Onboard LEDs Header Yes
Onboard Audio Header Yes
Processor Supported Core 2 Duo
Pentium Dual-core
Core 2 Quad
Core 2 Extreme Quad-Core
Celeron Dual-Core
Celeron
Total Processor Supported 1
Processor Socket Socket T LGA-775
Processor Technology Enhanced SpeedStep Technology
Front Side Bus 1066 MHz
800 MHz
1333 MHz
64-bit Processing Yes
Chipset Manufacturer Intel
Product Type Desktop Motherboard
Manufacturer Part Number MBD-C2SBC-Q-O
Manufacturer Website Address http://www.supermicro.com
Manufacturer Supermicro Computer, Inc
Product Model C2SBC-Q
Product Name C2SBC-Q Desktop Motherboard
Brand Name Supermicro
RAID Levels 1
1+0
5
0
Controller Type Ultra ATA/100 (ATA-6)
Serial ATA/300
RAID Supported Yes
Maximum Memory Supported 8 GB
Memory Technology DDR2 SDRAM
Memory Standard DDR2-800/PC2-6400
DDR2-667/PC2-5300
Number of Memory Slots 4
Memory Speed Supported 667 MHz
800 MHz
VGA Yes
Network (RJ-45) Yes
Audio Line In Yes
Audio Line Out Yes
Serial Port Yes
Microphone Port Yes
Total Number of USB Ports 6
Number of USB 2.0 Ports 6
PS/2 Port Yes
Number of PS/2 Ports 2
