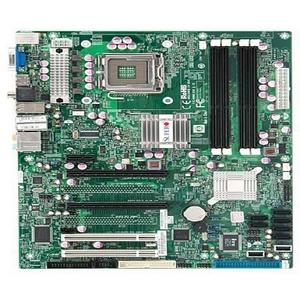

Super Micro Supermicro C2SEE Desktop Motherboard - Intel Chipset - Socket T LGA-775 - ATX - 4 GB DDR3 SDRAM Maximum RAM - DDR3-1333/PC3-10600, DDR3-1066/PC3-8500, DDR3-800/PC3-6400 - 2 x Memory Slots - Gigabit Ethernet - 6 x SATA Interfaces

Super MicroSKU: PL5-MBD-C2SEE-O-83663Z-EN
filler

Price:
Sale price$173.99

Description

Supermicro C2SEE Desktop Motherboard - Intel Chipset - Socket T LGA-775 - ATX - 4 GB DDR3 SDRAM Maximum RAM - DDR3-1333/PC3-10600, DDR3-1066/PC3-8500, DDR3-800/PC3-6400 - 2 x Memory Slots - Gigabit Ethernet - 6 x SATA Interfaces

C2SEE Desktop Board is designed with the utmost attention to detail to provide you with the highest standards in quality and performance. The Intel G43 Express Chipset is specially designed for use with Intel Core 2 Extreme/Core 2 Quad/Core 2 Duo LGA 775 processors. It consists of I/O Controller Hub (ICH10).

Gigabit Ethernet Yes
Controller Type Floppy Controller
Serial ATA/300
Sound Controller Manufacturer Realtek
Sound Controller Model ALC888
Audio Channels 7.1
Additional Information

    System BIOS:

    • BIOS Type:
    • 16Mb Flash EEPROM with SPI BIOS
    • BIOS Features:
    • Plug and Play (PnP)
    • DMI 2.3
    • PCI 2.2
    • ACPI 1.0 / 2.0
    • USB Keyboard support
    • SMBIOS 2.3
Environmentally Friendly Yes
Environmental Certification RoHS
Form Factor ATX
Width 12" (304.80 mm)
Depth 9.60" (243.84 mm)
Graphics Controller Manufacturer Intel
Graphics Controller Model GMA4500
Onboard Video On-board Video Chipset
Number of SATA Interfaces 6
Total Number of Onboard USB Ports 6
Onboard LEDs Header Yes
Onboard Audio Header Yes
Onboard S/PDIF Header Yes
Processor Supported Core 2 Extreme
Pentium Dual-core
Core 2 Quad
Core 2 Duo
Celeron Dual-Core
Celeron
Total Processor Supported 1
Processor Socket Socket T LGA-775
Processor Technology Enhanced SpeedStep Technology
Front Side Bus 1333 MHz
1066 MHz
800 MHz
64-bit Processing Yes
Chipset Manufacturer Intel
Number of PCI Slots 4
Number of PCI Express x1 Slots 1
Number of Total Expansion Slots 7
Number of PCI Express x4 Slots 1
Number of PCI Express x16 Slots 1
Total Number of PCI Express Slots 3
Product Type Desktop Motherboard
Manufacturer Part Number MBD-C2SEE-O
Manufacturer Website Address http://www.supermicro.com
Manufacturer Supermicro Computer, Inc
Product Model C2SEE
Product Name C2SEE Desktop Motherboard
Brand Name Supermicro
Maximum Memory Supported 4 GB
Memory Technology DDR3 SDRAM
Memory Standard DDR3-1066/PC3-8500
DDR3-1333/PC3-10600
DDR3-800/PC3-6400
Number of Memory Slots 2
Memory Speed Supported 800 MHz
1333 MHz
1066 MHz
S/PDIF Yes
VGA Yes
Network (RJ-45) Yes
Audio Line In Yes
Audio Line Out Yes
Microphone Port Yes
Total Number of USB Ports 6
Number of USB 2.0 Ports 6
Number of S/PDIF Out Ports 1
PS/2 Port Yes
Number of PS/2 Ports 2
