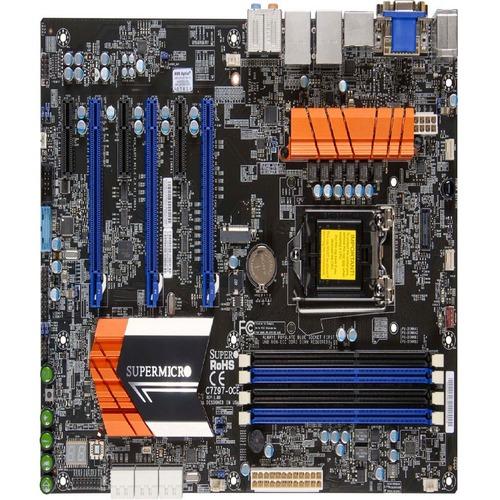

Super Micro Supermicro C7Z97-OCE Desktop Motherboard - Intel Chipset - Socket H3 LGA-1150 - ATX - 32 GB DDR3 SDRAM Maximum RAM - DDR3-3200/PC3-25600 (O.C.), DDR3-3100/PC3-24800 (O.C.), DDR3-2133/PC3-17000 (O.C.), DDR3-2200/PC3-17600 (O.C.), DDR3-2400/PC3

Super Micro Supermicro C7Z97-OCE Desktop Motherboard - Intel Chipset - Socket H3 LGA-1150 - ATX - 32 GB DDR3 SDRAM Maximum RAM - DDR3-3200/PC3-25600 (O.C.), DDR3-3100/PC3-24800 (O.C.), DDR3-2133/PC3-17000 (O.C.), DDR3-2200/PC3-17600 (O.C.), DDR3-2400/PC3

常规价格 $313.99 CAD
常规价格 促销价 $313.99 CAD
促销 售罄
结账时计算的运费

Supermicro C7Z97-OCE Desktop Motherboard - Intel Chipset - Socket H3 LGA-1150 - ATX - 32 GB DDR3 SDRAM Maximum RAM - DDR3-3200/PC3-25600 (O.C.), DDR3-3100/PC3-24800 (O.C.), DDR3-2133/PC3-17000 (O.C.), DDR3-2200/PC3-17600 (O.C.), DDR3-2400/PC3-19200 (O.C.), DDR3-3000/PC3-24000 (O.C.), DDR3-2800/PC3-22400 (O.C.), DDR3-2600/PC3-20800 (O.C.) - 4 x Memory Slots - Gigabit Ethernet - HDMI - DisplayPort - 6 x SATA Interfaces

Z97 chipsets / Socket H3 Boards

Supermicro's new motherboard models using Intel Z97 Express Chipset supports 4th generation Desktop Core i7/i5/i3 Processors, Pentium and Celeron. The Z97 new platform supports overclocking of CPU and Memory with increase of up to 50% in performance, with XTU management tool. Z97 platform supports triple displays and collage display and 4K HD resolution graphics. Ideal applications include gaming, workstation and high frequency trading.
Certifications & Standards ACPI 5.0
Gigabit Ethernet Yes
Graphics Controller Manufacturer Intel
Onboard Video On-board Video Chipset
Sound Controller Manufacturer Realtek
Sound Controller Model ALC1150
Audio Channels 7.1
Form Factor ATX
Width 12" (304.80 mm)
Depth 9.60" (243.84 mm)
RAID Levels 5
10
1
0
Controller Type Serial ATA/600
RAID Supported Yes
Number of Total Expansion Slots 6
Number of PCI Express x4 Slots 3
Number of PCI Express x16 Slots 3
PCI Express Standard PCI Express 3.0
PCI Express 2.0
Total Number of PCI Express Slots 6
Maximum Memory Supported 32 GB
Memory Technology DDR3 SDRAM
Memory Standard DDR3-2133/PC3-17000 (O.C.)
DDR3-2200/PC3-17600 (O.C.)
DDR3-2400/PC3-19200 (O.C.)
DDR3-2600/PC3-20800 (O.C.)
DDR3-2800/PC3-22400 (O.C.)
DDR3-3000/PC3-24000 (O.C.)
DDR3-3100/PC3-24800 (O.C.)
DDR3-3200/PC3-25600 (O.C.)
DDR3-1600/PC3-12800
Number of Memory Slots 4
Memory Form Factor UDIMM
DIMM
Memory Speed Supported 2800 MHz
2400 MHz
2200 MHz
2133 MHz
1600 MHz
3000 MHz
3100 MHz
3200 MHz
2600 MHz
Number of SATA Interfaces 6
Total Number of Onboard USB Ports 6
Number of Onboard USB 2.0 Ports 4
Number of Onboard USB 3.0 Ports 2
Onboard LEDs Header Yes
Onboard Serial Header Yes
Product Type Desktop Motherboard
Manufacturer Part Number MBD-C7Z97-OCE-O
Manufacturer Website Address http://www.supermicro.com
Manufacturer Supermicro Computer, Inc
Product Model C7Z97-OCE
Product Name C7Z97-OCE Desktop Motherboard
Package Type Retail
Brand Name Supermicro
Processor Supported Core i7
Celeron
Core i3
Core i5
Pentium
Total Processor Supported 1
Processor Socket Socket H3 LGA-1150
64-bit Processing Yes
Chipset Manufacturer Intel
HDMI Yes
DVI Yes
VGA Yes
Number of Network (RJ-45) Ports 2
Network (RJ-45) Yes
DisplayPort Yes
Number of DisplayPort Outputs 1
Number of DVI Outputs 1
Total Number of USB Ports 6
Number of USB 2.0 Ports 2
Number of USB 3.0 Ports 4
PS/2 Port Yes
